Specifications

Model 3612 ADA vandal-resistant outdoor, pedestal bottle filler and drinking fountain shall include a heavy duty stainless-steel pedestal with matte silver powder-coating, one bottle filler and two drinking fountains, vandal-resistant push-button operated stainless steel valves with front-accessible cartridge and flow adjustment, polished chrome-plated brass vandal-resistant shielded bubbler heads, large-opening bottle filler with quick-fill 1 gpm flow rate, 100% lead-free waterways, polished chrome-plated vandal-resistant waste strainers with top-down clean-out access on fountains, vandal-resistant access plates, integral mounting feet, and 1-1/2" slip waste. In extreme environments related to heat and cold, product(s) must be protected from damage/exposure due to these extreme conditions.

Pricing Information

$9291 USD
Contact Haws Specials

ADA Vandal-Resistant Outdoor Stainless Steel Bottle Filler and Drinking Fountain

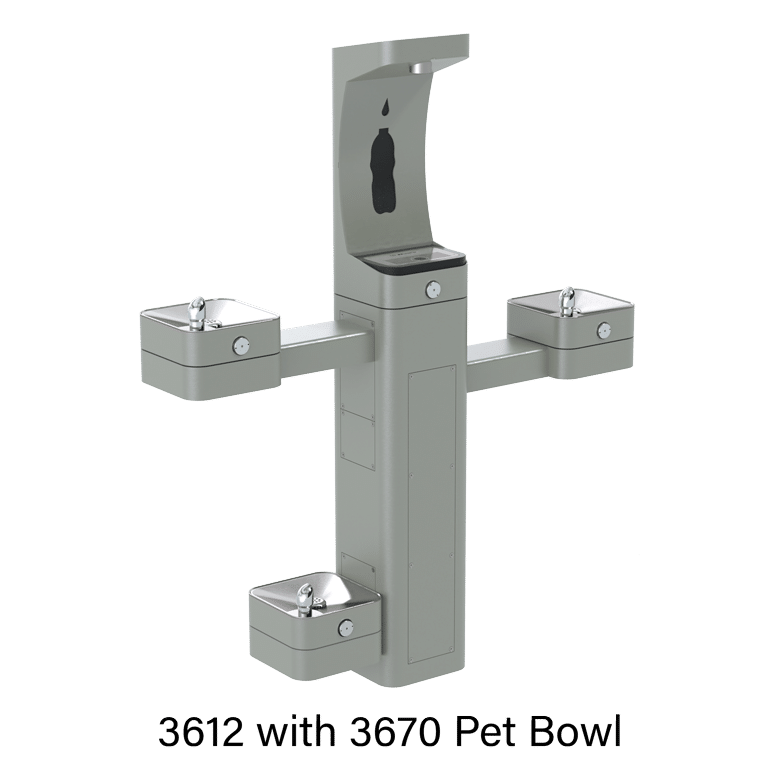

The Haws 3612 ADA heavy-duty vandal-resistant outdoor bottle filler and drinking fountain can be configured in multiple variations before or after installation. This model is standard with two drinking fountains and one bottle filler, and the option of adding/changing a drinking fountain, bottle filler, dog bowl and/or hose bib at any time. It incorporates the 'only' all stainless-steel valve body that is machined out of solid bar stock, is fully serviceable through the front of the push button assembly offering access to the water control cartridge and integral water supply strainer, and has front access to the water stream height adjustment for easy maintenance without having to remove the valve. Equipped with vandal resistant components for long lasting durability.

Only stainless steel valve body that is machined out of solid bar stock
Interchangeable fountain and bottle filler arms help this unit to meet the changing needs of its environment
Vandal resistant components include the bubblers, bottle filler nozzle, buttons, drains and access plates
ADA compliant standing adult height, wheel chair, and child wheel chair arm positions to accommodate all users
Heavy-duty fabricated stainless steel with matte silver powder-coated finish
Large-opening outdoor bottle filler with quick-fill 1 gpm flow rate
Custom color options available
Easy maintenance with front access to valve adjustment and cartridge replacement
Bowl and bubbler head can be rotated for location needs
100% lead-free waterways

Model meets all current Federal Regulations for the disabled including those in the Americans with Disabilities Act. Haws manufactures drinking fountains, faucets and electric water coolers to be lead-free by all known definitions including NSF/ANSI/CAN 61- Section 9, NSF/ANSI/CAN 372, California Proposition 65, and the Federal Safe Drinking Water Act. Product is compliant to California Health and Safety Code 116875 (AB 1953-2006), and 116876 (AB 100) "NSF/ANSI/CAN 61: Q ≤ 1".
