3500FR - ADA Vandal-Resistant Outdoor Freeze-Resistant Pedestal Fountain

Technical Downloads

Spec Sheet

Installation Drawing

Parts Breakdown Drawing

Operational / Maintenance Manual

AutoCAD Installation Drawing

MasterSpec® Files

Limited Warranty

Specifications

Model 3500FR ADA, superior-duty vandal-resistant pedestal drinking fountain shall include a 12 gauge Type 304 Stainless Steel pedestal with integral 3/8" (.95 cm) thick cast stainless steel basins, all powder-coated green, polished chrome-plated brass vandal-resistant buttons, polished chrome-plated brass vandal-resistant bubbler heads, polished chrome-plated brass vandal-resistant waste strainer with top-down clean-out access, large access door with heavy duty hinges and square key locks, vandal-resistant bottom plate, integral mounting plate, and 1-1/2" slip waste. In extreme environments related to heat and cold, product(s) must be protected from damage/exposure due to these extreme conditions. ..... REQUIRES MODELS 3500FR & 6518.2FR PURCHASED SEPARATELY.

Pricing Information

$7719 USD
Contact Haws Specials

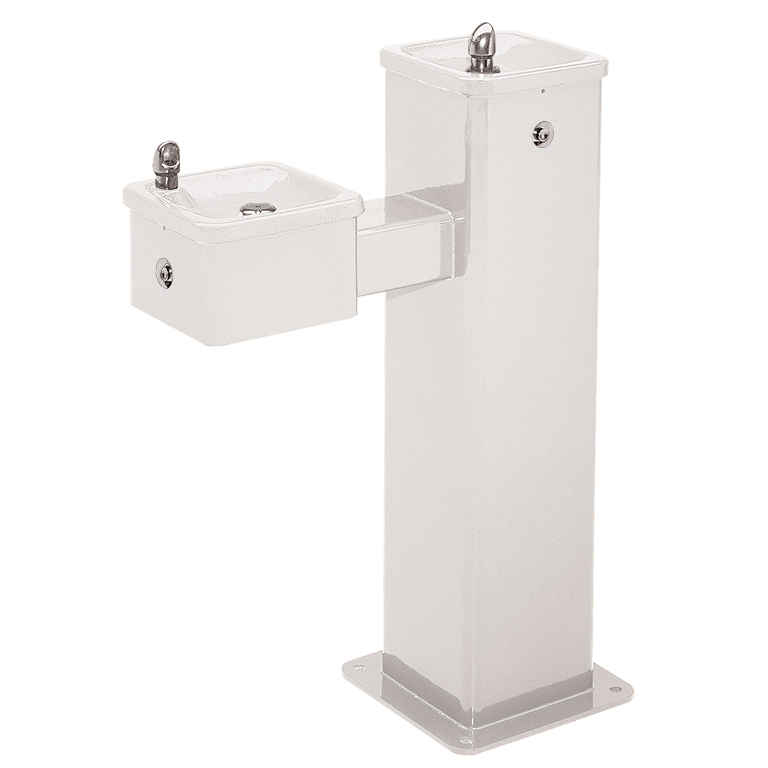

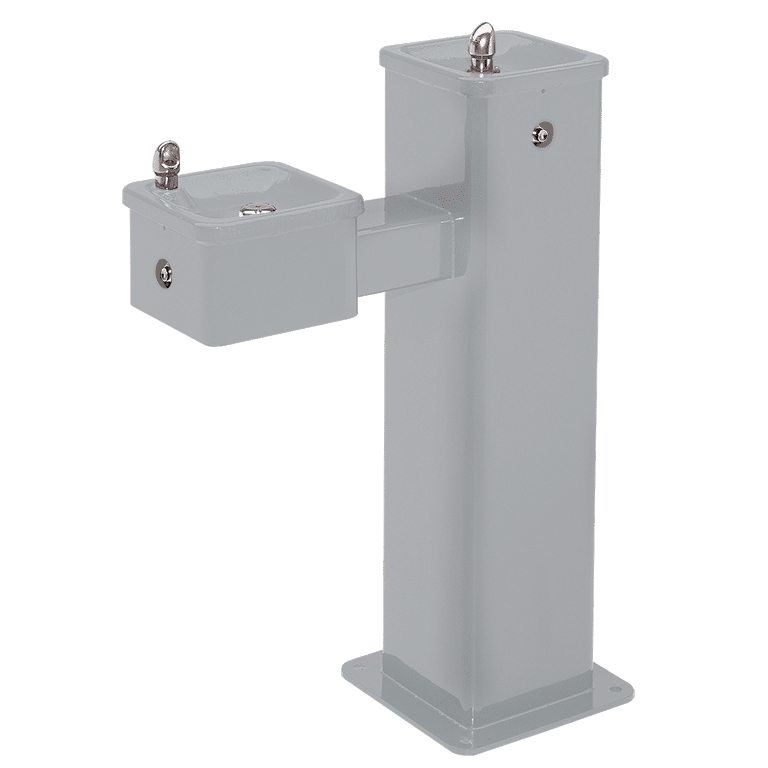

ADA Vandal-Resistant Outdoor Freeze-Resistant Pedestal Fountain

The Haws 3500FR superior-duty stainless steel vandal-resistant pedestal drinking fountain incorporates a freeze-resistant valve assembly to provide year round operation. Our fully engineered pneumatic valve assembly is one of the best in freeze-resistant technologies. Easy maintenance through a heavy gauge steel access door with heavy-duty hinges and key lock. The "Hi-Lo" barrier-free design of the 3500FR allows the square pedestal to be placed securely in multiple locations, all while providing for twice the users as regular drinking fountains. Equipped with numerous vandal resistant components, this fountain is not easily disrupted, quickly discouraging the worst of vandals.

Powder-coated green 12 gauge Type 304 Stainless Steel pedestal with integral 3/8" (.95 cm) thick cast stainless steel basins
Vandal resistant components include the bubbler, button, drain and bottom/access plates
Consult with the local authority having jurisdiction before installation in order to determine if any additional regulations or requirements may apply

Model meets all current Federal Regulations for the disabled including those in the Americans with Disabilities Act. Haws manufactures drinking fountains, faucets and electric water coolers to be lead-free by all known definitions including NSF/ANSI/CAN 61- Section 9, NSF/ANSI/CAN 372, California Proposition 65, and the Federal Safe Drinking Water Act. Product is compliant to California Health and Safety Code 116875 (AB 1953-2006), and 116876 (AB 100) "NSF/ANSI/CAN 61: Q ≤ 1".
