3603FR - ADA Freeze-Resistant Stainless Vandal-Resistant Pedestal Fountain

Spec Sheet

Operational / Maintenance Manual

Installation Drawing

Parts Breakdown Drawing

AutoCAD Installation Drawing

MasterSpec® Files

Limited Warranty

Specifications

Model 3603FR outdoor, freeze-resistant ADA vandal-resistant pedestal drinking fountain shall include a heavy duty stainless-steel pedestal with matte silver powder-coating, three drinking fountain stations, three ADA arm mounting heights to accommodate all users, fully engineered pneumatic valve assembly, polished chrome-plated brass vandal-resistant shielded bubbler heads, 100% lead-free waterways, polished chrome-plated vandal-resistant waste strainers with top-down clean-out access, vandal-resistant access plates, integral mounting feet, and 1-1/2" slip waste. In extreme environments related to heat and cold, product(s) must be protected from damage/exposure due to these extreme conditions. In extreme environments related to heat and cold, product(s) must be protected from damage/exposure due to these extreme conditions. ..... REQUIRES MODELS 3603FR, 6518FR & 6518.2FR ORDERED SEPARATELY.

Pricing Information

$12493 USD
Contact Haws Specials

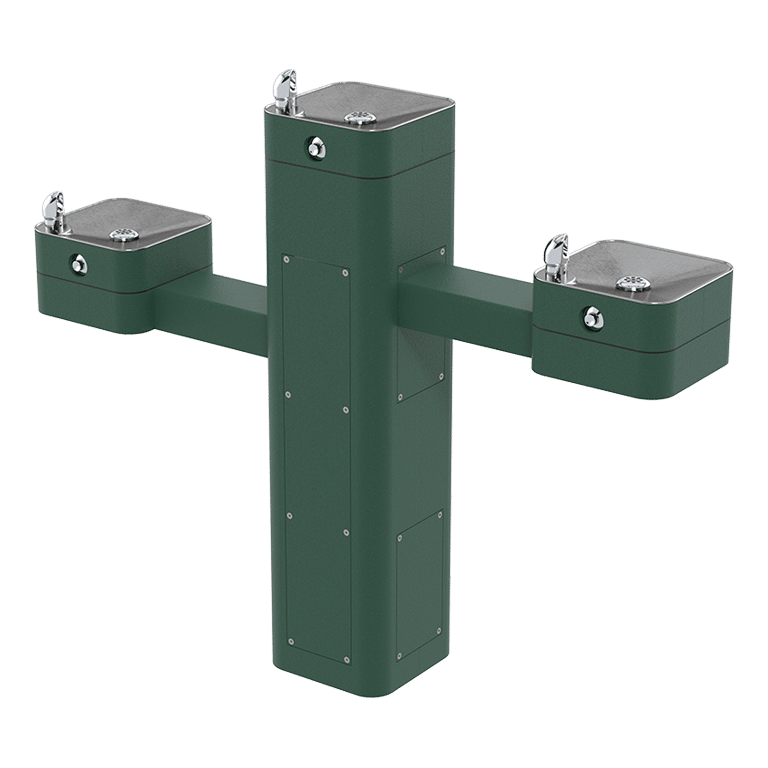

ADA Freeze-Resistant Stainless Vandal-Resistant Pedestal Fountain

The Haws 3603FR heavy-duty outdoor freeze-resistant ADA vandal-resistant pedestal drinking fountain can be configured in multiple variations before or after installation. This product is standard with three drinking fountain stations, with the option of adding/changing a drinking fountain, bottle filler, dog bowl and/or hose bib at any time. Water delivery is provided by a fully engineered pneumatic valve assembly that is one of the best in freeze-resistant technologies, and provides year-round operation. Equipped with vandal resistant components for long lasting durability.

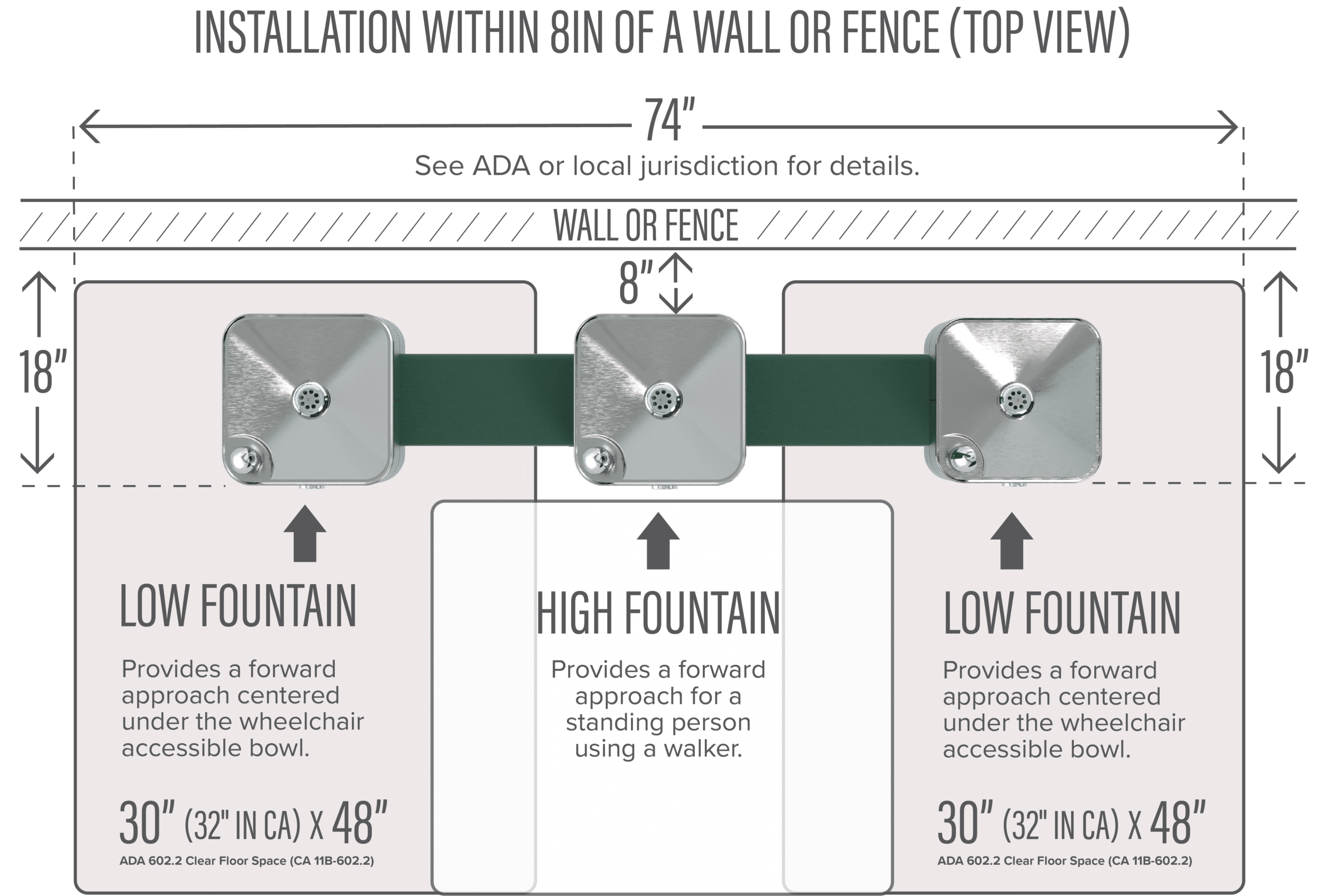

ADA compliant standing adult height, wheel chair, and child wheel chair arm positions to accommodate all users
Vandal resistant components include the bubblers, buttons, drains and access plates

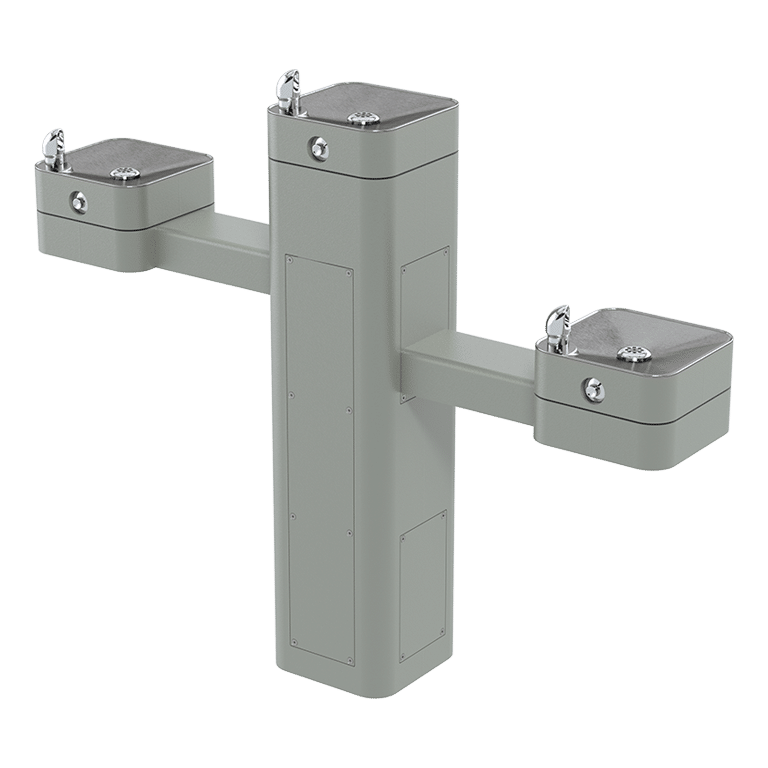

Heavy-duty fabricated stainless steel with matte silver powder-coated finish
Bowl and bubbler head can be rotated for location needs

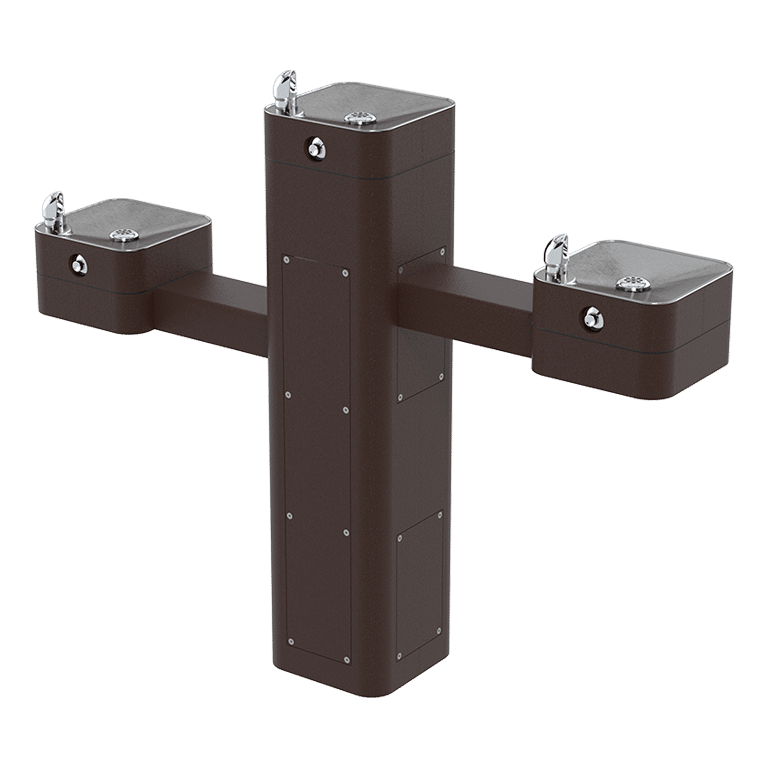

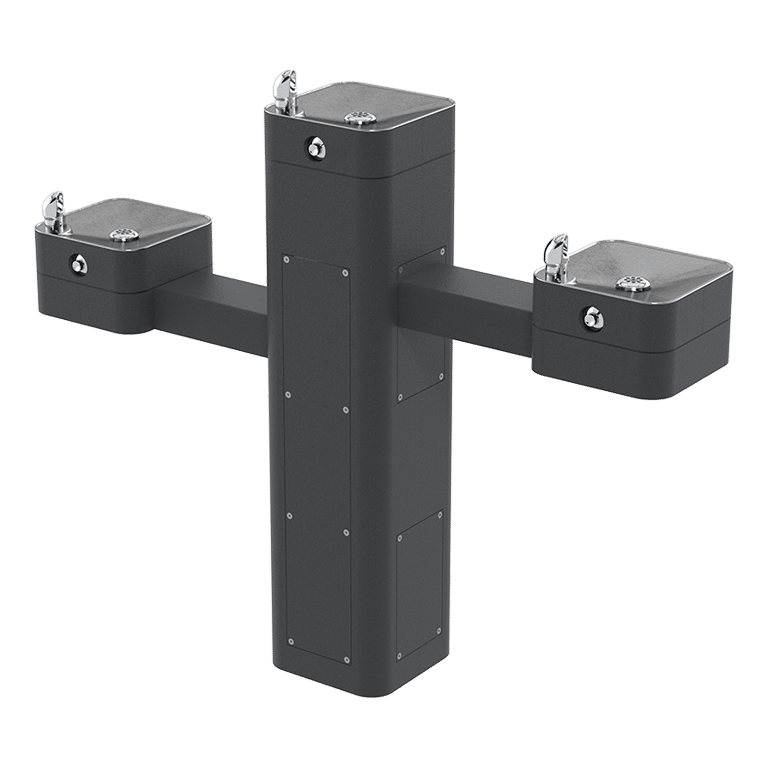

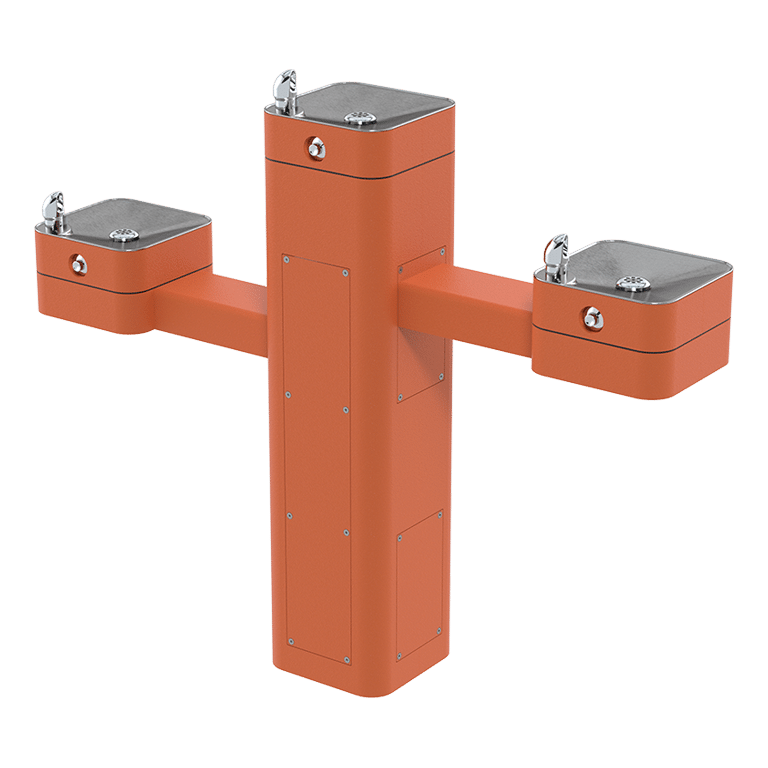

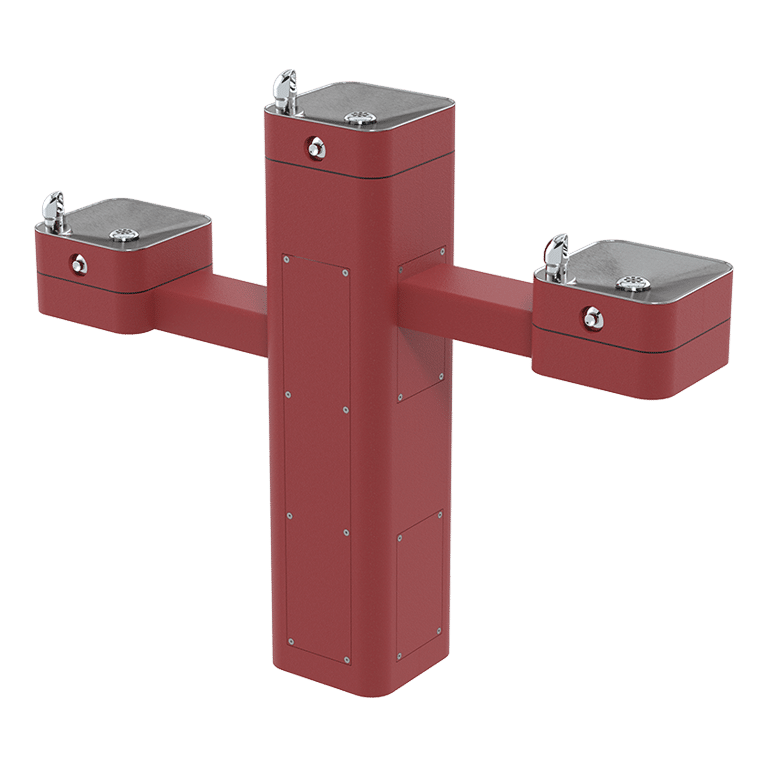

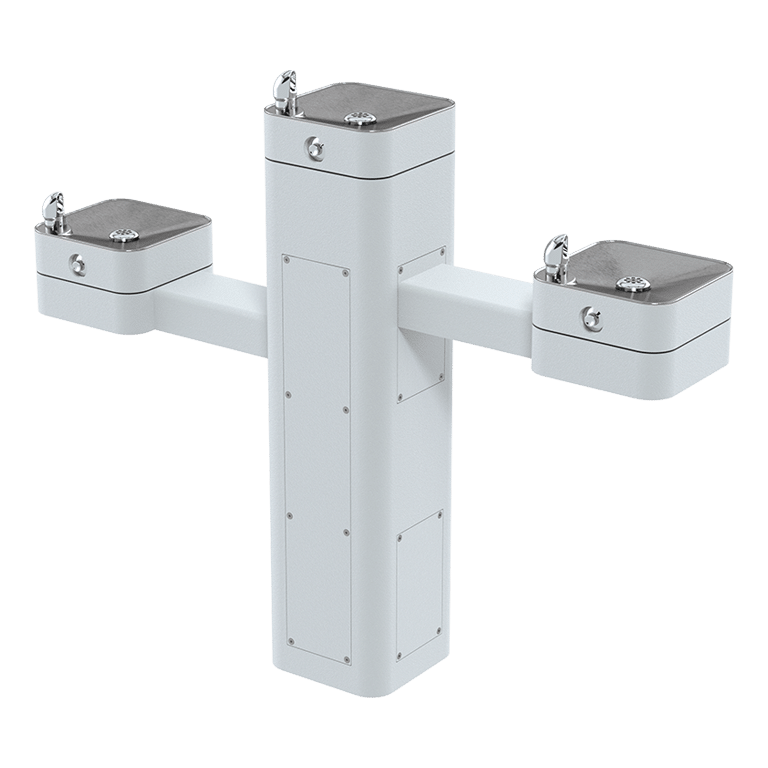

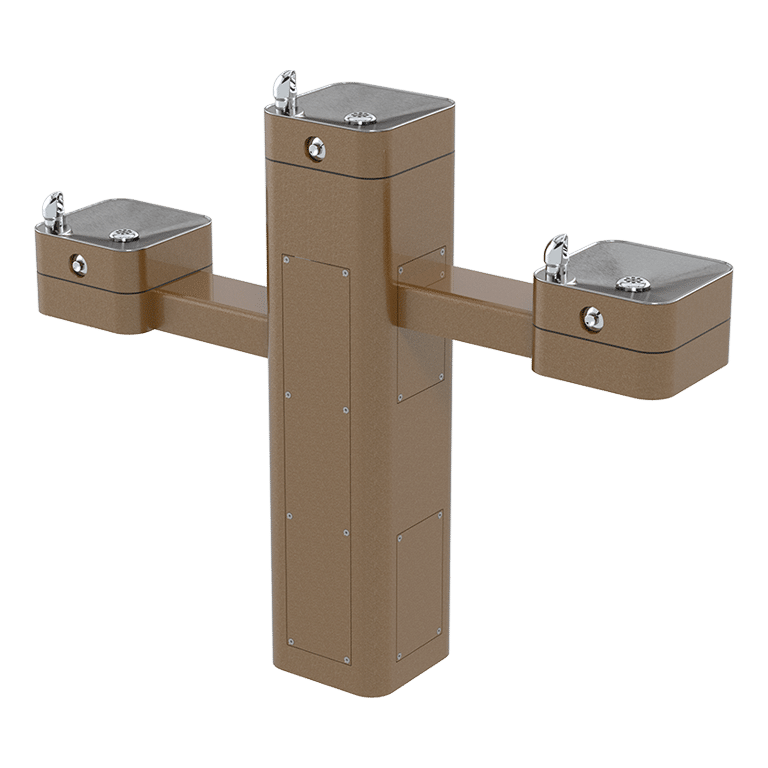

Custom color options available
100% lead-free waterways
Consult with the local authority having jurisdiction before installation in order to determine if any additional regulations or requirements may apply

Model meets all current Federal Regulations for the disabled including those in the Americans with Disabilities Act. Haws manufactures drinking fountains, faucets and electric water coolers to be lead-free by all known definitions including NSF/ANSI/CAN 61- Section 9, NSF/ANSI/CAN 372, California Proposition 65, and the Federal Safe Drinking Water Act. Product is compliant to California Health and Safety Code 116875 (AB 1953-2006), and 116876 (AB 100) "NSF/ANSI/CAN 61: Q ≤ 1".
