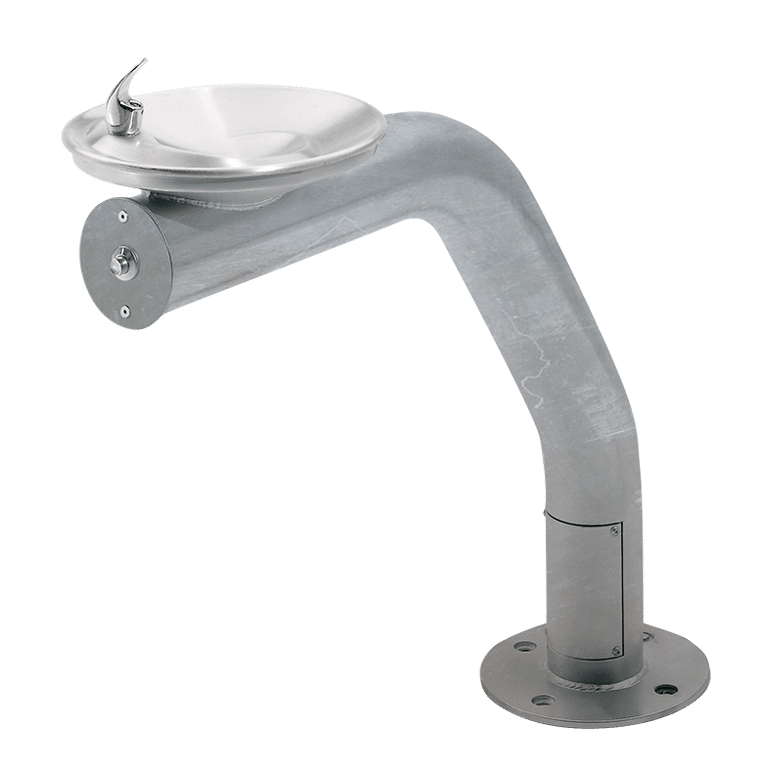

ADA Outdoor Freeze-Resistant Pedestal Fountain

Model 3380GFR, freeze-resistant, ADA vandal-resistant pedestal drinking fountain with stainless steel bowl, and galvanized steel pedestal with no exterior treatment or processing for a rough, natural steel finish. Appearance of exterior may vary.

Spec Sheet Download

Required Components Ordered Separately

6518FR

Technical Downloads

Spec Sheet

Installation Drawing

Parts Breakdown Drawing

Operational / Maintenance Manual

AutoCAD Installation Drawing

MasterSpec® Files

Limited Warranty

Specifications

Model 3380GFR ADA freeze-resistant vandal-resistant pedestal drinking fountain shall include an 18-gauge Type 304 Stainless Steel satin finish basin with integral swirl design, polished chrome-plated brass vandal-resistant push button, polished chrome-plated brass vandal-resistant bubbler head, chrome-plated brass vandal-resistant waste strainer, 11-gauge galvanized steel pedestal, integral mounting plate, and 1-1/2" O.D. tailpiece. In extreme environments related to heat and cold, product(s) must be protected from damage/exposure due to these extreme conditions. REQUIRES MODELS 3380GFR & 6518FR PURCHASED SEPARATELY.

Pricing Information

$4208 USD
Contact Haws Specials

ADA Outdoor Freeze-Resistant Pedestal Fountain

The Haws 3380GFR ADA outdoor vandal-resistant pedestal drinking fountain incorporates a freeze-resistant valve assembly to provide year round operation. Our fully engineered pneumatic valve assembly is one of the best in freeze-resistant technologies. The barrier-free design of the 3380GFR allows the circular pedestal to be placed securely in multiple locations without taking up excess space. Equipped with vandal resistant components, this fountain is not easily disrupted, quickly discouraging the worst of vandals.

Heavy-duty 11 gauge thick steel with rough unfinished galvanized surface provides an exceptional corrosion resistance in one of our toughest made fountains
Vandal resistant components include the bubbler, button, bowl, drain and bottom plate
Consult with the local authority having jurisdiction before installation in order to determine if any additional regulations or requirements may apply

Model meets all current Federal Regulations for the disabled including those in the Americans with Disabilities Act. Haws manufactures drinking fountains, faucets and electric water coolers to be lead-free by all known definitions including NSF/ANSI/CAN 61- Section 9, NSF/ANSI/CAN 372, California Proposition 65, and the Federal Safe Drinking Water Act. Product is compliant to California Health and Safety Code 116875 (AB 1953-2006), and 116876 (AB 100) "NSF/ANSI/CAN 61: Q ≤ 1".

Prop 65 Warning. For California Residents Warning: This product contains a chemical known to the State of California to cause cancer and/or birth defects or other reproductive harm. Please click here for more information.
