Specifications

Model 3377FR ADA freeze-resistant vandal-resistant pedestal drinking fountain shall include a 14 gauge Type 304 Stainless Steel satin finish bracket and 18 gauge Type 304 Stainless Steel satin finish basin with integral swirl design, polished chrome-plated brass vandal-resistant bubbler head, polished chrome-plated brass vandal-resistant push-button, chrome-plated brass vandal-resistant waste strainer, vandal-resistant bottom plate, 3/16" (.47 cm) galvanized steel top-access pedestal with green powder-coating, integral mounting plate, and 1-1/4" IPS waste. In extreme environments related to heat and cold, product(s) must be protected from damage/exposure due to these extreme conditions. REQUIRES MODELS 3377FR & 6518FR PURCHASED SEPARATELY.

Pricing Information

$3864 USD
Contact Haws Specials

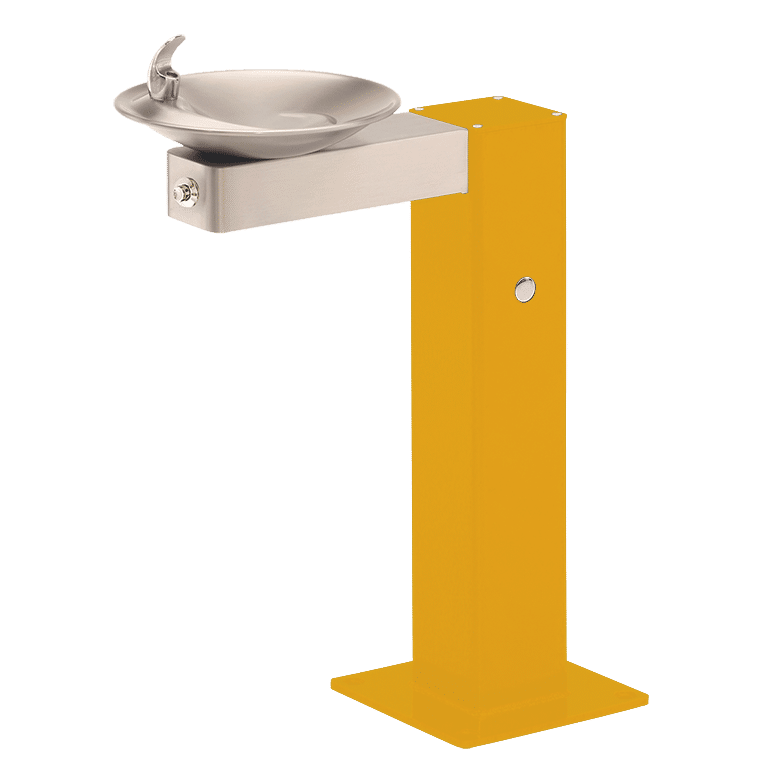

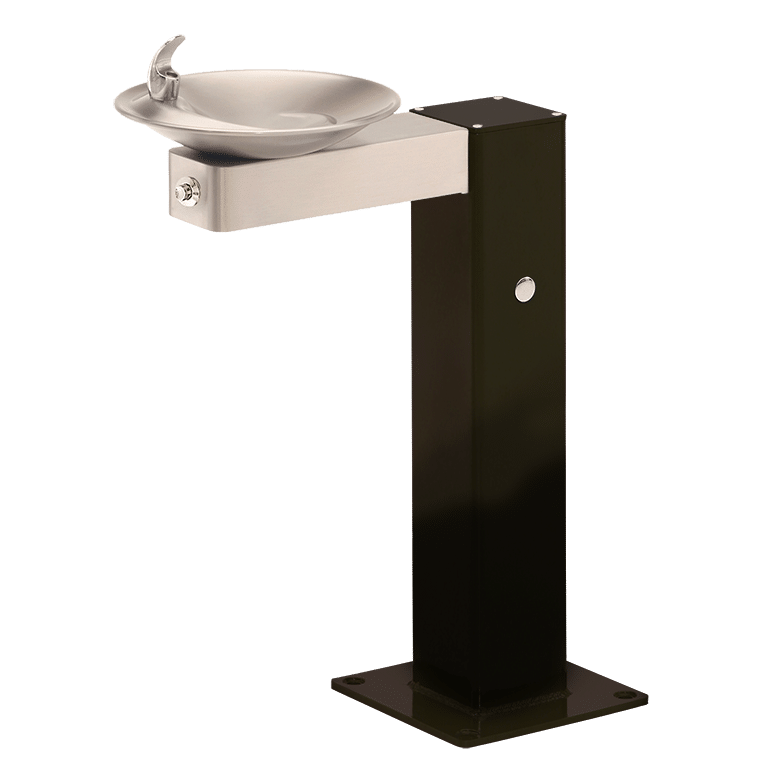

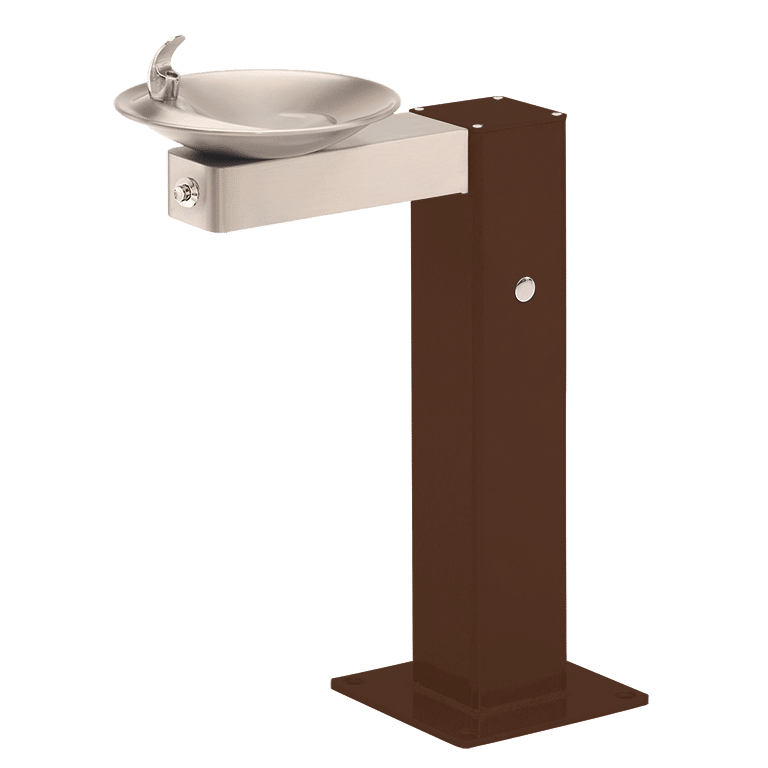

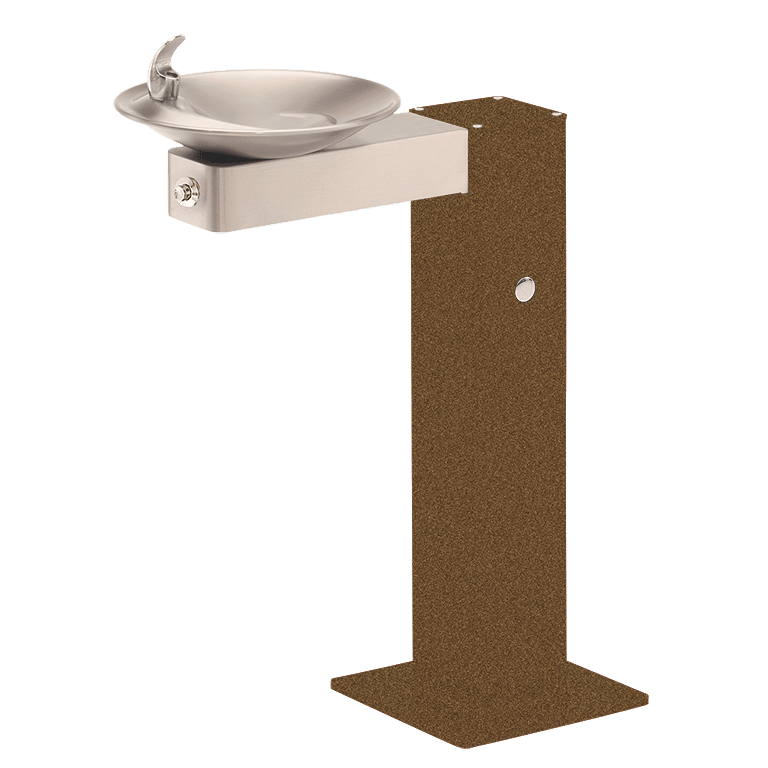

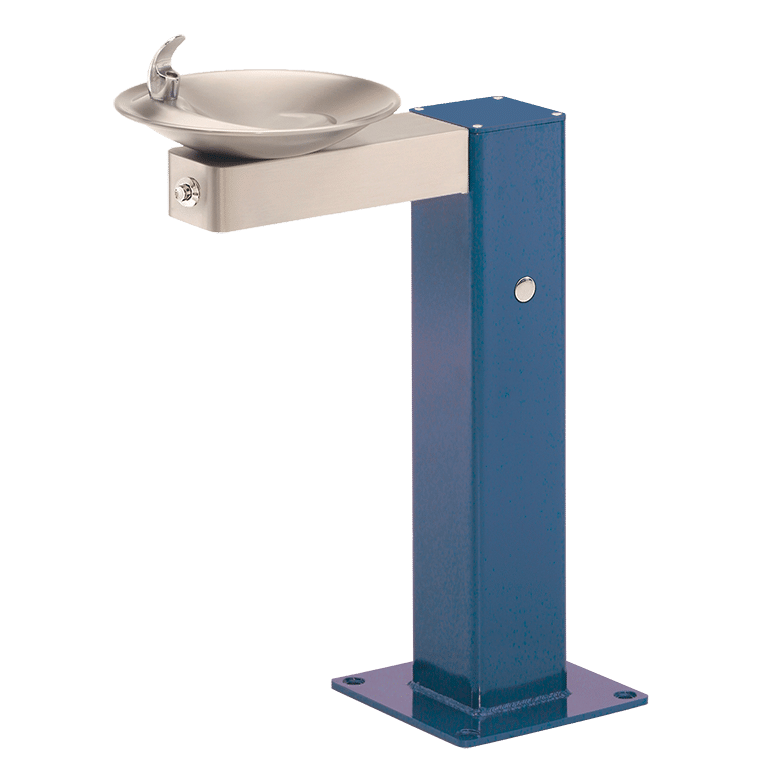

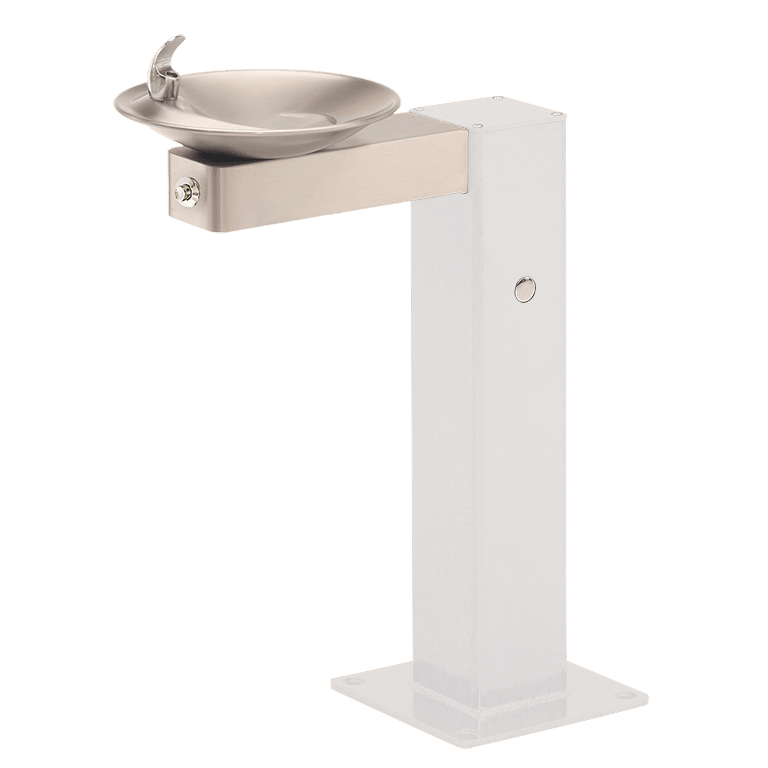

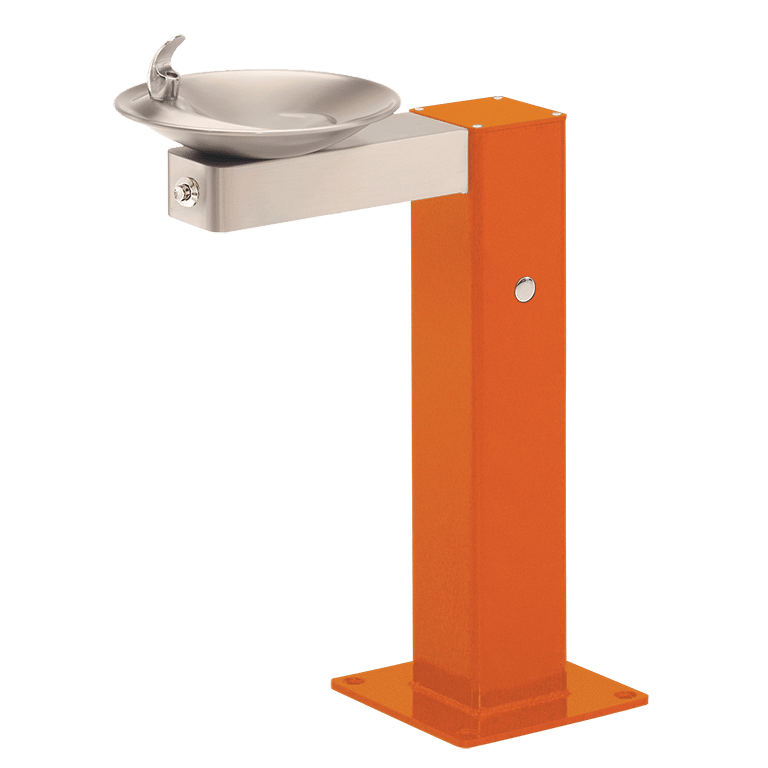

ADA Vandal-Resistant Outdoor Freeze-Resistant Pedestal Fountain

The Haws 3377FR ADA outdoor vandal-resistant powder-coated pedestal and stainless steel fountain incorporates a freeze-resistant valve assembly to provide year round operation. Fully engineered pneumatic valve assembly is one of the best in freeze-resistant technologies. The barrier-free design of the 3377FR allows the square pedestal to be placed securely in multiple locations without taking up excess space. Equipped with vandal resistant components, this fountain is not easily disrupted, quickly discouraging the worst of vandals.

14 gauge stainless steel bracket; with 3/16" (.47 cm) galvanized steel pedestal with green powder-coated finish provide exceptional corrosion resistance
Vandal resistant components include the bubbler, button, bowl, drain and bottom/access plates
Consult with the local authority having jurisdiction before installation in order to determine if any additional regulations or requirements may apply

Model meets all current Federal Regulations for the disabled including those in the Americans with Disabilities Act. Haws manufactures drinking fountains, faucets and electric water coolers to be lead-free by all known definitions including NSF/ANSI/CAN 61- Section 9, NSF/ANSI/CAN 372, California Proposition 65, and the Federal Safe Drinking Water Act. Product is compliant to California Health and Safety Code 116875 (AB 1953-2006), and 116876 (AB 100) "NSF/ANSI/CAN 61: Q ≤ 1".

Prop 65 Warning. For California Residents Warning: This product contains a chemical known to the State of California to cause cancer and/or birth defects or other reproductive harm. Please click here for more information.
