Home / Products / 1920WHO – Vandal-Resistant Motion-Activated White Bottle Filler

1920WHO

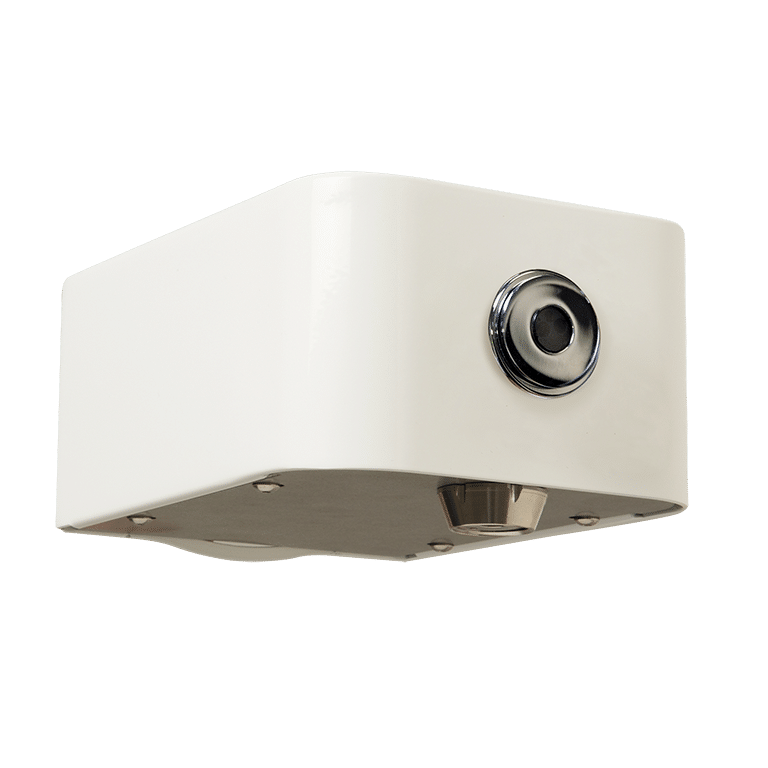

Vandal-Resistant Motion-Activated White Bottle Filler

Model 1920WHO vandal-resistant wall-mounted touchless white powder-coated bottle filling station. The bottle filler requires a mounting plate; either the 6700 in-wall or the 6700R on-wall support plate. (See options below) FOR INDOOR USE ONLY

Spec Sheet Download

Spec Sheet

Operational / Maintenance Manual

Installation Drawing

Parts Breakdown Drawing

AutoCAD Installation Drawing

3D Revit (RFA)

MasterSpec® Files

Limited Warranty

Specifications

Model 1920WHO motion-activated wall mounted vandal-resistant bottle filler shall include 100% lead-free waterways, white powder coated stainless-steel construction, vandal-resistant sensor operated stainless steel solenoid valve with 30-second obstruction time-out controlled by a transformer, 1 gpm (3.78 L) laminar flow, and vandal-resistant bottom plate. It can be used as a stand-alone station or mounted above the Haws® 1311 or 1501 series drinking fountains. This product requires a mounting plate; either the 6700 in-wall or the 6700R on-wall support plate. (See options below) FOR INDOOR USE ONLY

Pricing Information

$1031 USD
Contact Haws Specials

Vandal-Resistant Motion-Activated White Bottle Filler

Model 1920WHO vandal-resistant touchless stainless-steel bottle filler powder-coated white uses a sensor operated stainless steel solenoid valve controlled by a transformer for hands-free operation. A pressure regulator is used to adjust the flow according to incoming water pressures. It can be a stand-alone station, or mounted above the Haws 1311 or 1501 series drinking fountains.

Optional 3000 gallon water filter available (model 6480)
Touchless operation for safety and peace of mind
Vandal resistant components include the sensor casing and bottom plate
100% lead-free waterways
30-second obstruction time-out to reduce tampering of sensor
Gloss white powder-coated finish
Available steel wall mounting plate recommended
1 gpm (3.78 L) Laminar flow
This product requires a mounting plate; either the 6700 in-wall or the 6700R on-wall support plate. (See options below)

Haws manufactures drinking fountains, faucets and electric water coolers to be lead-free by all known definitions including NSF/ANSI/CAN 61- Section 9, NSF/ANSI/CAN 372, California Proposition 65, and the Federal Safe Drinking Water Act. Product is compliant to California Health and Safety Code 116875 (AB 1953-2006), and 116876 (AB 100) "NSF/ANSI/CAN 61: Q ≤ 1".

Prop 65 Warning. For California Residents Warning: This product contains a chemical known to the State of California to cause cancer and/or birth defects or other reproductive harm. Please click here for more information.
