Home / Products / 1920HPSHO – Vandal-Resistant Motion-Activated Polished Bottle Filler

1920HPSHO

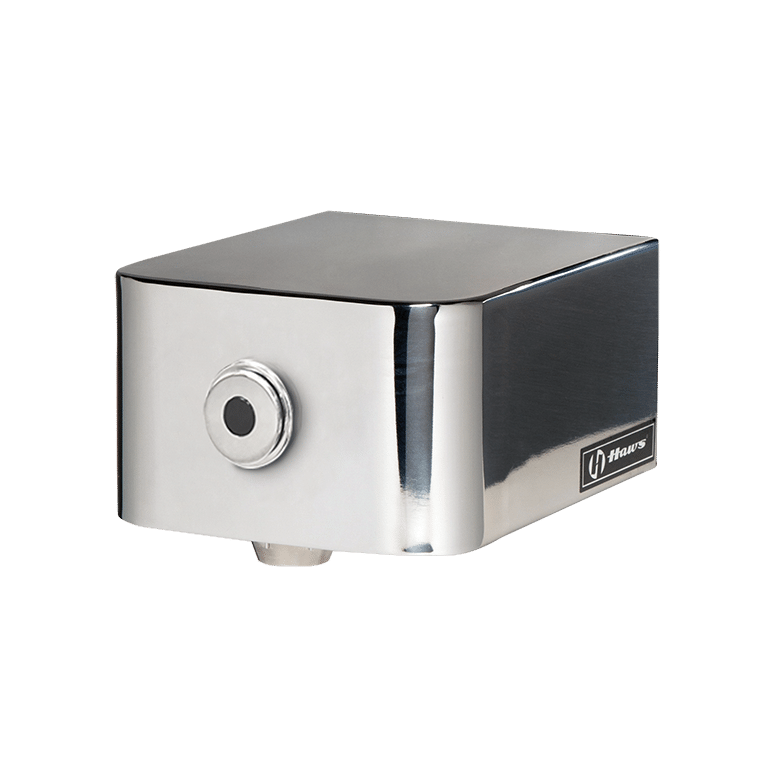

Vandal-Resistant Motion-Activated Polished Bottle Filler

Model 1920HPSHO, vandal-resistant wall mount touchless polished stainless-steel bottle filler. (For mounting bottle filler, see options below) FOR INDOOR USE ONLY

Specs

Vandal-Resistant Motion-Activated Polished Bottle Filler

Model 1920HPSHO vandal-resistant touchless polished stainless-steel bottle filler uses a sensor operated stainless steel solenoid valve controlled by a transformer for hands-free operation. A pressure regulator is used to adjust the flow according to incoming water pressures. It can be a stand-alone station, or mounted above the Haws 1001HPS and 1011HPS series drinking fountains.

Touchless operation for safety and peace of mind
Vandal resistant components include the sensor casing and bottom plate
100% lead-free waterways
30-second obstruction time-out to reduce tampering of sensor
High polished stainless steel finish
Available steel wall mounting plate recommended
1 gpm (3.78 L) Laminar flow

Haws manufactures drinking fountains, faucets and electric water coolers to be lead-free by all known definitions including NSF/ANSI/CAN 61- Section 9, NSF/ANSI/CAN 372, California Proposition 65, and the Federal Safe Drinking Water Act. Product is compliant to California Health and Safety Code 116875 (AB 1953-2006), and NSF/ANSI/CAN 61: Q ≤ 1.

Prop 65 Warning. For California Residents Warning: This product contains a chemical known to the State of California to cause cancer and/or birth defects or other reproductive harm. Please click here for more information.

Certifications

CSA Certified
NSF/ANSI/CAN 61-2020 with Q ≤ 1

VRKHO5

Sensor Valve

VRKHO6

Motion Activated Electronic Sensor

VRKHO8

Hard-Wire Transformer

BP32HPS

Back Panel

BP15HPS

Back Panel

6700R

Mounting Plate

6700

Mounting Plate

vrkho7

Plug-in Transformer

Spec Sheet

Operational / Maintenance Manual

Installation Drawing

Parts Breakdown Drawing

AutoCAD Installation Drawing

Limited Warranty

View All Resources

Specifications

Model 1920HPSHO motion-activated wall mounted vandal-resistant bottle filler shall include 100% lead-free waterways, high polished stainless-steel construction, vandal-resistant sensor operated stainless steel solenoid valve with 30-second obstruction time-out controlled by a transformer, 1 gpm (3.78 L) laminar flow, and vandal-resistant bottom plate. It can be used as a stand-alone station or mounted above the Haws® 1001HPS and 1011HPS series drinking fountains.
