1011MSHO2

Wall Mount ADA Touchless Fountain w/Mounting System

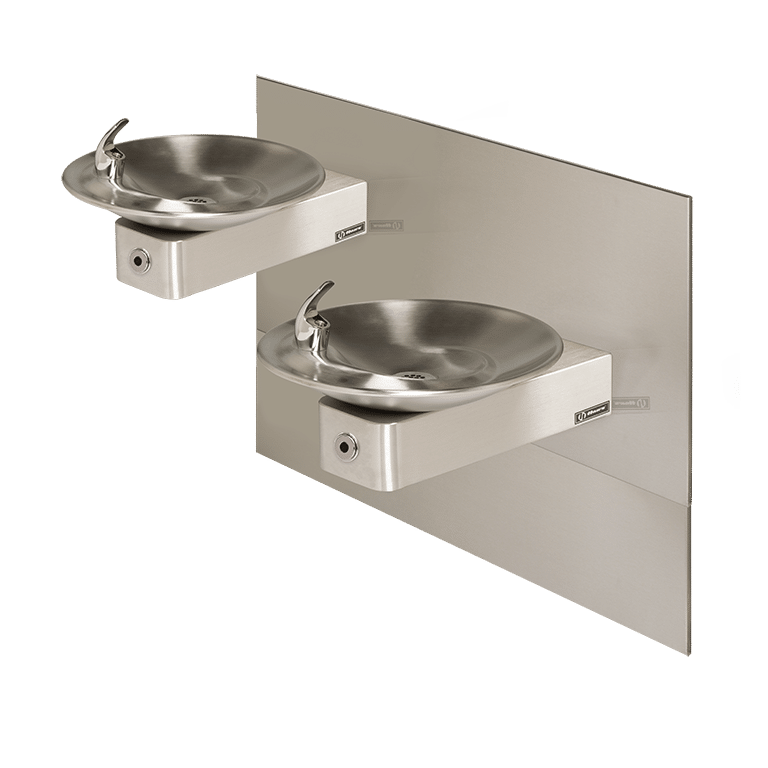

Model 1011MSHO2, Hi-Lo ADA, wall mounted, touchless stainless steel drinking fountain with access panel, in-wall mounting system, and 100% lead-free waterways.

Specs

Required Parts Sold Separately

MTGFR.DF2

Wall Mount ADA Touchless Fountain w/Mounting System

The Haws 1011MSHO2 ADA Hi-Lo touchless stainless-steel drinking fountain incorporates sensor operated stainless steel solenoid valves controlled by a transformer for hands-free operation. A pressure regulator is used to adjust the bubbler flow according to incoming water pressures.

18 gauge Type 304 Stainless Steel bowl assemblies mounted on 14 gauge Type 304 Stainless Steel wall brackets
Front access plate allows for front access of P-trap and stop
100% lead-free waterways
Polished chrome-plated brass vandal-resistant bubbler heads with integral laminar anti-squirt flow eliminate water splash
Beautiful satin finish resists stains and corrosion
"Hi-Lo" design allows for twice the users as regular fountains and suits the needs for various user heights

Model meets all current Federal Regulations for the disabled including those in the Americans with Disabilities Act. Haws manufactures drinking fountains and electric water coolers to be lead-free by all known definitions including NSF/ANSI Standard 61, Section 9, California Proposition 65, and the Federal Safe Drinking Water Act. Product is compliant to California Health and Safety Code 116875 (AB 1953-2006).

Prop 65 Warning. For California Residents Warning: This product contains a chemical known to the State of California to cause cancer and/or birth defects or other reproductive harm. Please click here for more information.

Certifications

CSA Certified

PBM1000

Bottom Plate

5705

Bubbler Head

6463

Drain Strainer

MTGFR.DF2

Mounting Frame

SK6

Cane Detection, Floor Mounted

6475

Custom Logo Panel

BP32

Back Panel

HCR8

Remote Drinking Fountain Water chiller

6426

Water Filter

SK3

Fountain Skirt

1920HO

Wall Mount Touchless Bottle Filler

Spec Sheet

Limited Warranty

View All Resources

Specifications

Model 1011MSHO2 Hi-Lo ADA wall mounted touchless drinking fountain shall include dual 18 gauge Type 304 Stainless Steel satin finish basins with integral swirl design, 14 gauge Type 304 Stainless Steel wall brackets, stainless steel satin finish back and access panels allowing for front access of P-trap and stop, in-wall mounting frame, touchless sensor operated stainless steel solenoid valves controlled by a transformer, 100% lead-free waterways, polished chrome-plated brass vandal-resistant bubbler heads with integral laminar anti-squirt flow, chrome-plated brass vandal-resistant waste strainers, vandal-resistant bottom plates, high and low fountain mounting levels, and 1-1/4" O.D. (3.2 cm) waste pipes. ........................................................................................ REQUIRES MODEL MTGFR.DF2 PRICED SEPARATELY.
