Mounting Frame

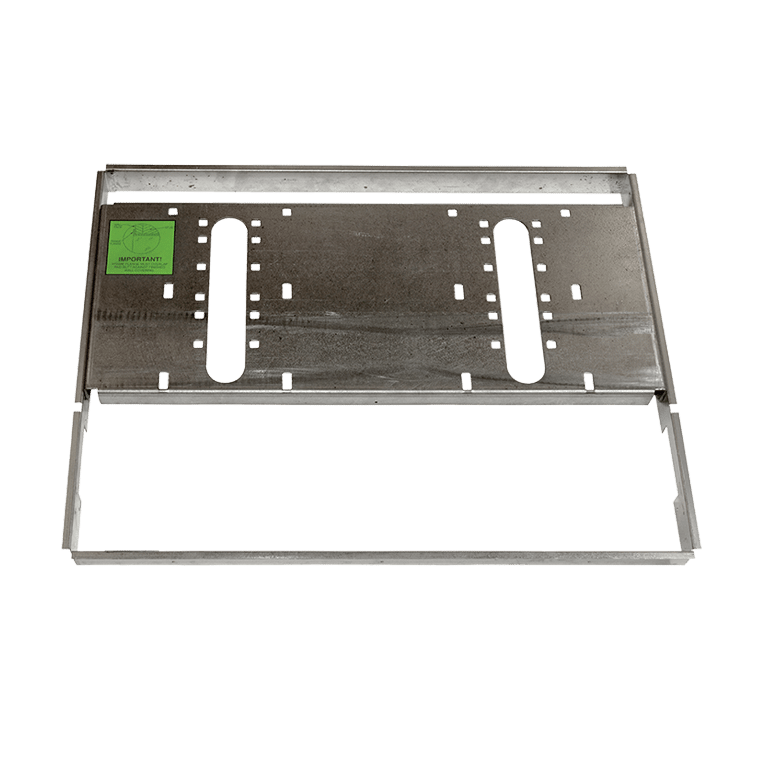

Model MTGFR.DF2 "Hi-Lo" in-wall mounting frame is made of heavy gauge galvanized steel with pre-punched mounting holes for use with Haws 1011 series fountains, and is used to provide access to the in-wall traps.

Spec Sheet Download

Technical Downloads

Spec Sheet

Installation Drawing

AutoCAD Installation Drawing

View All Resources

Specifications

Model MTGFR.DF2 "Hi-Lo" in-wall mounting frame is made of 16 gauge galvanized steel with welded-in heavy-duty 10 gauge mounting plate with pre-punched mounting holes. For use with Haws 1011 series fountains, and provides access to the in-wall traps.

Pricing Information

$601 USD
Contact Haws Specials

Mounting Frame

Model MTGFR.DF2 in-wall mounting frame provides the maximum support and facilitates the installation of "Hi-Lo" 1011MS and 1011HPSMS series fountains. Mounted during "rough-in" phase of construction, this mounting frame allows the "Hi-Lo' fountains to be easily and quickly installed.

One-piece 10 gauge heavy duty mounting plate is welded to the 16 gauge wall frame
Heavy gauge galvanized steel construction provides a solid support system for these dual bubbler fountains that is not only sturdy but provides a certain amount of corrosion resistance as well.

Prop 65 Warning. For California Residents Warning: This product contains a chemical known to the State of California to cause cancer and/or birth defects or other reproductive harm. Please click here for more information.
