H1119.8HO2

Chilled Vandal-Resistant ADA Motion-Activated Fountain and Bottle Filler

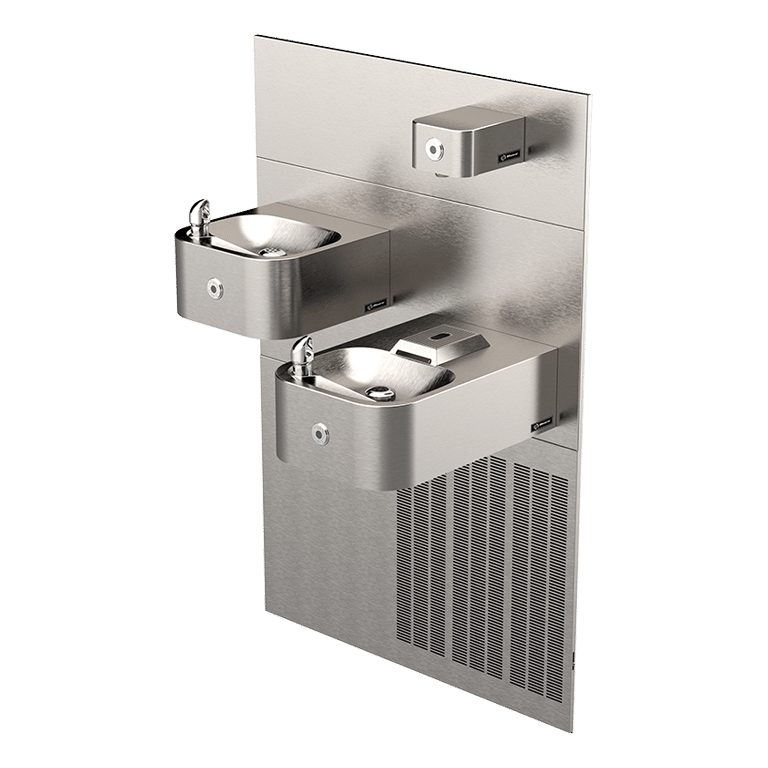

Model H1119.8HO2-1920HO ADA vandal-resistant, stainless steel touchless fountain and bottle filler with remote chiller. The bottle filler requires a mounting plate; either the 6700 in-wall or the 6700R on-wall support plate. (See options below) FOR INDOOR USE ONLY
Contact Us for a Custom Solution

Required Parts Sold Separately

Specifications

Model H1119.8HO2-1920HO vandal-resistant wall-mounted ADA motion-activated water cooler and bottle filler shall include dual 18-gauge Type 304 Stainless Steel satin-finish basins, 14 gauge bottle filler bracket, 100% lead free waterways, sensor operated stainless steel solenoid valves with 30-second obstruction time-out controlled by a transformer, polished chrome-plated brass vandal-resistant bubbler heads with integral laminar anti-squirt flow, 1 gpm (3.78 L) laminar flow bottle filler, polished chrome-plated vandal resistant waste strainers, vandal-resistant bottom plates, stainless steel satin-finish back panel and louvered intrusion proof grill, high and low fountain mounting levels, and 1-1/4” NPT traps. The R-134a refrigeration system is hermetically sealed and delivers a minimum of 8 gph (30.3 L) of water at 50° F (10° C) cooled from 80° F (26.7° C) inlet water at 90° F (32.2° C) ambient. 115 Volts, 60Hz, rated watts: 370, full load amps: 5. Haws electric water coolers comply with ARI Standard 1010 and ANSI A117.1, and are listed by Underwriter Laboratories to U.S. and Canadian standards. The botte filler requires a mounting plate; either the Haws model 6700 in-wall or the 6700R on-wall support plate.
