Home / Products / H1119.8HO2 – Chilled Vandal-Resistant ADA Motion-Activated Dual Fountain

H1119.8HO2

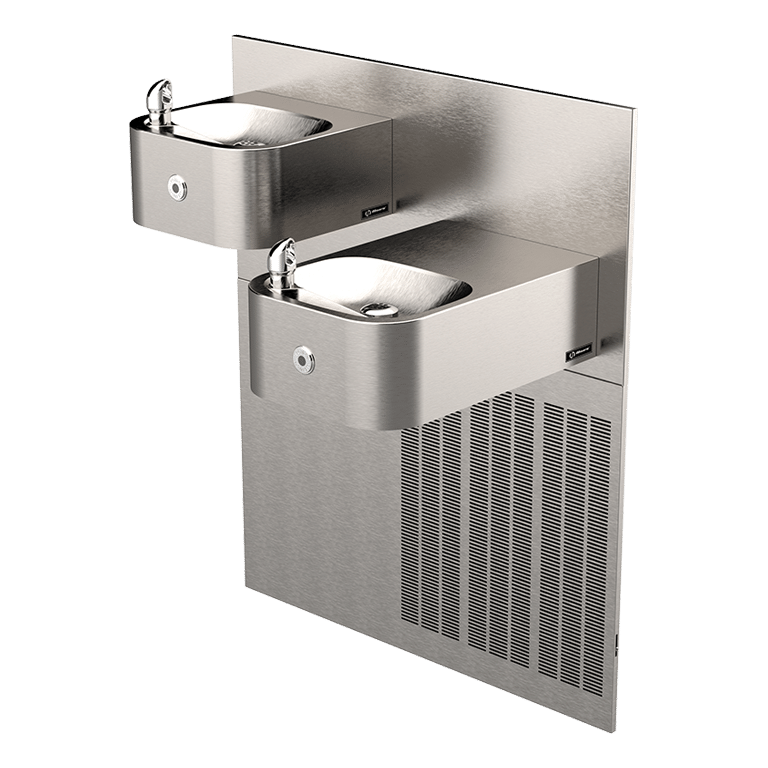

Chilled Vandal-Resistant ADA Motion-Activated Dual Fountain

Model H1119.8HO2, ADA vandal-resistant, wall mounted chilled, touchless 18-gauge stainless steel drinking fountain with 100% lead-free waterways. FOR INDOOR USE ONLY
Contact Us for a Custom Solution

Spec Sheet Download

Required Parts Sold Separately

Spec Sheet

Operational / Maintenance Manual

3D Revit (RFA)

MasterSpec® Files

Limited Warranty

Specifications

Model H1119.8HO2 electric ADA vandal-resistant wall mounted motion-activated drinking fountain shall include dual 18 gauge Type 304 Stainless Steel satin finish basins, sensor operated stainless steel solenoid valves with 30-second obstruction time-out controlled by a transformer, 100% lead-free waterways, polished chrome-plated brass vandal-resistant bubbler heads, polished chrome-plated brass vandal-resistant waste strainers, vandal-resistant bottom plates, stainless steel satin finish back panel and louvered intrusion-proof grill, high and low fountain mounting levels, and 1-1/4" NPT traps. The R-134a refrigeration system is hermetically sealed and delivers a minimum of 8 gph (30.3 L) of water at 50° F (10° C) cooled from 80° F (26.7° C) inlet water at 90° F (32.2° C) ambient. 115 Volts, 60Hz, rated watts: 370, full load amps: 5 ..................................... REQUIRES MODEL HCR8 and MTGFR.LG PRICED SEPARATELY.

Pricing Information

$3383 USD
Contact Haws Specials

Chilled Vandal-Resistant ADA Motion-Activated Dual Fountain

The Haws H1119.8HO2 ADA vandal-resistant electric drinking fountain provides 8 gph (30.3 L) chilled water performance in an engineered stainless-steel skin. This wall mounted fountain incorporates sensor operated stainless steel solenoid valves controlled by a transformer for hands-free operation. A pressure regulator is used to adjust the bubbler flow according to incoming water pressures.

Touchless operation for safety and peace of mind
Vandal resistant components include the bubblers, drains and bottom plates
30-second obstruction time-out to reduce tampering of sensor
100% lead-free waterways
18 gauge Type 304 Stainless Steel design provides a well constructed sturdy fountain
Beautiful satin finish resists stains and corrosion
"Hi-Lo" design allows for twice the users as regular fountains and suits the needs for various user heights
Polished chrome-plated brass bubbler heads with integral laminar anti-squirt flow eliminate water splash
One-piece stamped bowls make for an aesthetically pleasing and durable design

Model meets all current Federal Regulations for the disabled including those in the Americans with Disabilities Act. Haws manufactures drinking fountains, faucets and electric water coolers to be lead-free by all known definitions including NSF/ANSI/CAN 61- Section 9, NSF/ANSI/CAN 372, California Proposition 65, and the Federal Safe Drinking Water Act. Product is compliant to California Health and Safety Code 116875 (AB 1953-2006), and NSF/ANSI/CAN 61: Q ≤ 1. Note: Electric water coolers are not recommended or designed for outdoor applications or enclosed pool areas (chlorine). These conditions may void warranty.

Prop 65 Warning. For California Residents Warning: This product contains a chemical known to the State of California to cause cancer and/or birth defects or other reproductive harm. Please click here for more information.
