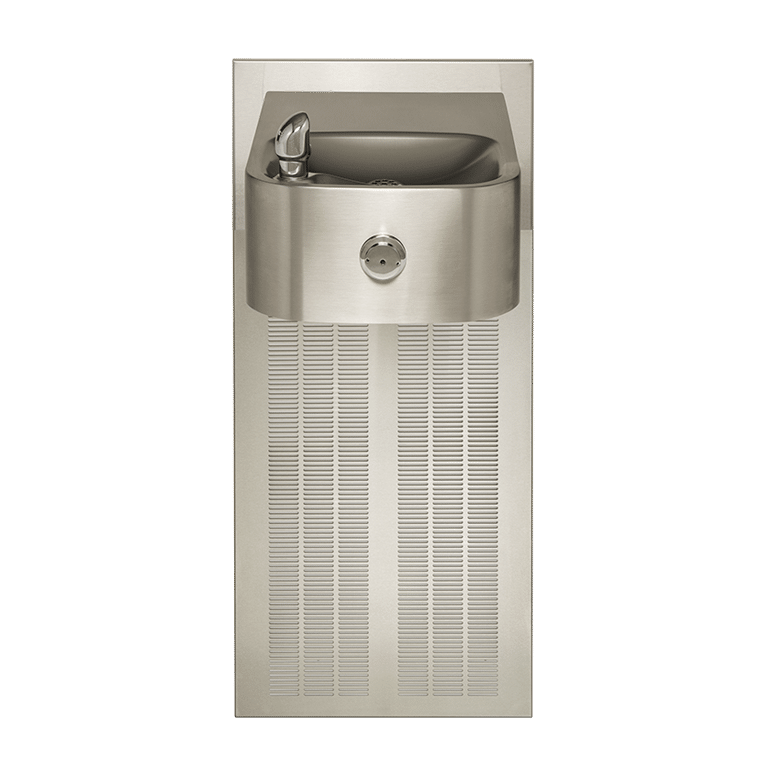

ADA Vandal-resistant Chilled Wall-Mount Fountain

Model 1109.8, ADA vandal-resistant, wall-mounted, satin finish stainless steel electric water cooler with 100% lead-free waterways. FOR INDOOR USE ONLY

Required Components Ordered Separately

Technical Downloads

Spec Sheet & Installation Drawing

Installation Drawing

Installation Drawing French

Parts Breakdown Drawing

Operational / Maintenance Manual

Operational / Maintenance Manual French

AutoCAD Installation Drawing

3D Revit (RFA)

MasterSpec® Files

Limited Warranty

Limited Warranty French

Specifications

Model 1109.8 vandal-resistant ADA electric wall-mounted water cooler shall include an 18-gauge Type 304 Stainless Steel satin finish basin, 16 gauge galvanized steel in-wall mounting frame with welded-in heavy-duty 10 gauge mounting plate, vandal-resistant push-button operated stainless steel valve with front-accessible cartridge, in-line strainer and flow adjustment, 100% lead-free waterways, polished chrome-plated brass vandal-resistant bubbler head, polished chrome-plated brass vandal-resistant waste strainer, vandal-resistant bottom plate, stainless steel satin finish back panel and louvered intrusion-proof grill, and 1-1/4" NPT concealed all cast-brass trap. The refrigeration system is hermetically sealed and delivers a minimum of 8 gph (30.3 L) of water at 50° F (10° C) cooled from 80° F (26.7° C) inlet water at 90° F (32.2° C) ambient. 115 Volts, 60Hz, rated watts: 370, full load amps: 5. ..... REQUIRES MODELS 1109.8, HCR8 & MTGFR.SM PURCHASED SEPARATELY. FOR INDOOR USE ONLY

Touchless sensor upgrades available—call Customer Service at (888) 640-4297:
First sensor +$331

Pricing Information

$1823 USD
Contact Haws Specials

ADA Vandal-resistant Chilled Wall-Mount Fountain

Model 1109.8 barrier-free vandal-resistant electric water cooler provides 8 gph (30.3 L) chilled water performance in an engineered stainless steel skin. and uses a patented stainless steel, push button activated, valve assembly allowing for front access stream adjustment as well as cartridge and strainer access. This wall-mounted fountain offers the only all stainless-steel valve body that is machined out of solid bar stock, is fully serviceable through the front of the push button assembly offering access to the water control cartridge and integral water supply strainer, and has front access to the water stream height adjustment for easy maintenance without having to remove the valve.

Optional 3000 gallon water filter available (model 6480)
Only stainless steel valve body that is machined out of solid bar stock
100% lead-free waterways.
Vandal resistant components include the bubbler, button, drain and bottom plate
18-gauge Type 304 Stainless Steel construction and required specialized mounting frame offer a well constructed sturdy fountain
Grille slots are designed to eliminate sharp edges and are backed with a foam filter to protect the fan motor and high displacement compressor from debris
Maintenance is made easy with front access to valve adjustment and cartridge replacement
Designed to run at a low energy usage, this water cooler and fountain are assured to have a long-lasting life
One piece rectangular bowl is designed for extra durability and maintenance ease.
Beautiful satin finish resists stains and corrosion

Model 1109.8 meets all current Federal Regulations for the disabled including those in the Americans with Disabilities Act. Haws manufactures drinking fountains and electric water coolers to be lead-free by all known definitions including NSF/ANSI Standard 61, Section 9, California Proposition 65, and the Federal Safe Drinking Water Act. Product is compliant to California Health and Safety Code 116875 (AB 1953) and 116876 (AB 1953-2006), and 116876 (AB 100) "NSF/ANSI/CAN 61: Q ≤ 1". Note: Electric water coolers are not recommended or designed for outdoor applications or enclosed pool areas (chlorine). These conditions may void warranty.
