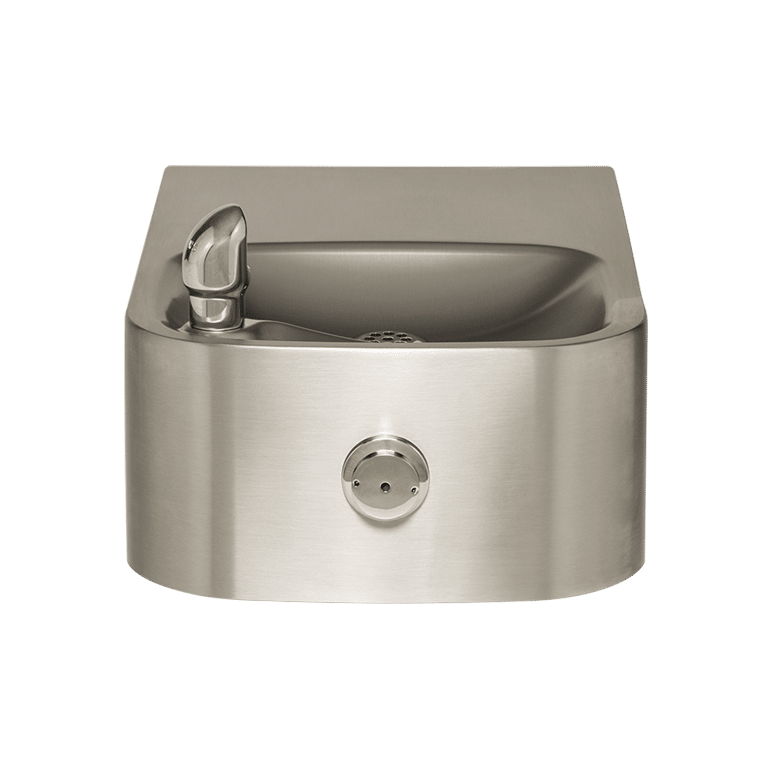

ADA Vandal-Resistant 14 Gauge Stainless-Steel Fountain

Model 1109.14, single bubbler, wall mounted vandal-resistant, ADA, 14 gauge stainless steel drinking fountain with satin finish and 100% lead-free waterways.

Spec Sheet Download

Technical Downloads

Installation Drawing

Parts Breakdown Drawing

Operational / Maintenance Manual

AutoCAD Installation Drawing

3D Revit (RFA)

MasterSpec® Files

Limited Warranty

Spec Sheet

Specifications

Model 1109.14 is a wall mounted vandal-resistant, barrier-free drinking fountain with 14 gauge Type 304 Stainless Steel with satin finish, vandal-resistant push-button operated stainless steel valve with front accessible cartridge, in-line strainer and flow adjustment, 100% lead-free waterways, polished chrome-plated brass bubbler head and waste strainer, integral 1/4" (.6 cm) thick stainless steel mounting plate, vandal-resistant stainless bottom plate and 1-1/4" NPT concealed all cast-brass trap. In extreme environments related to heat and cold, product(s) must be protected from damage/exposure due to these extreme conditions.

Touchless sensor upgrades available—call Customer Service at (888) 640-4297:
First sensor +$331

Pricing Information

$1891 USD
Contact Haws Specials

ADA Vandal-Resistant 14 Gauge Stainless-Steel Fountain

The Haws 1109.14 heavy duty barrier-free vandal-resistant drinking fountain uses a patented stainless steel, push-button activated, valve assembly allowing for front access stream adjustment as well as cartridge and strainer access. This wall mounted fountain offers the 'only' all stainless-steel valve body that is machined out of solid bar stock, is fully serviceable through the front of the push button assembly offering access to the water control cartridge and integral water supply strainer, and has front access to the water stream height adjustment for easy maintenance without having to remove the valve.

Optional 3000 gallon water filter available (model 6480)
Only stainless steel valve body that is machined out of solid bar stock
100% lead-free waterways
Vandal resistant components include bubbler, button, drain and bottom plate
14 gauge Type 304 Stainless Steel construction and specialized integral mounting plate offer even more protection with a sturdier design
Maintenance is made easy with front access to valve adjustment and cartridge replacement
Beautiful satin finish resists stains and corrosion
Soft rounded corners prevent mishaps and other accidents that may occur once the fountain is installed
One-piece stamped bowl makes for an aesthetically pleasing and durable design

Model meets all current Federal Regulations for the disabled including those in the Americans with Disabilities Act. Haws manufactures drinking fountains, faucets and electric water coolers to be lead-free by all known definitions including NSF/ANSI/CAN 61- Section 9, NSF/ANSI/CAN 372, California Proposition 65, and the Federal Safe Drinking Water Act. Product is compliant to California Health and Safety Code 116875 (AB 1953-2006), and 116876 (AB 100) "NSF/ANSI/CAN 61: Q ≤ 1".
