H1011.8HPSHO2-1920HPSHO

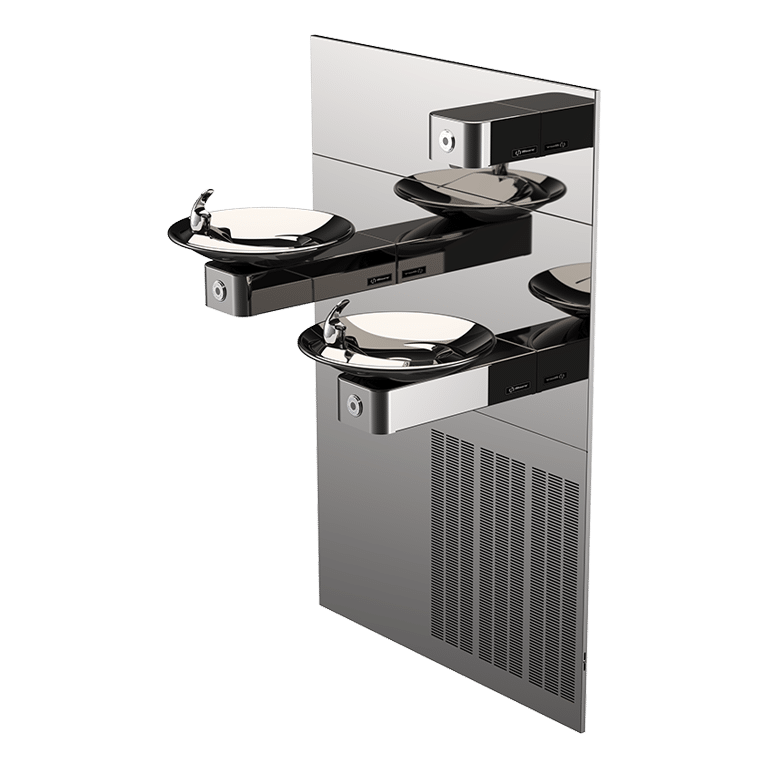

ADA Vandal-Resistant Chilled Motion-Activated Fountain and Bottle Filler

Model H1011.8HPSHO2-1920HPSHO, ADA vandal-resistant, polished stainless steel electric touchless drinking fountain and bottle filler. The bottle filler requires a mounting plate; either the 6700 in-wall or the 6700R on-wall support plate. (See options below) FOR INDOOR USE ONLY
Contact Us for a Custom Solution

Required Parts Sold Separately

Specifications

Model H1011.8HPSHO2-1920HPSHO ADA vandal-resistant electric wall mounted motion-activated drinking fountain and bottle filler shall include dual 18-gauge Type 304 polished stainless steel finish basins with integral swirl design, 14-gauge Type 304 polished stainless steel wall bracket, 100% lead-free waterways, sensor operated stainless steel solenoid valves with 30-second obstruction time-out controlled by a transformer, polished chrome-plated brass vandal-resistant bubbler heads with integral laminar anti-squirt flow, chrome-plated brass vandal-resistant waste strainers, vandal-resistant bottom plates, polished stainless steel finish back panel and louvered intrusion-proof grill, high and low fountain mounting levels, and 1-1/4" (3.2 cm) O.D. waste pipe. The R-134a refrigeration system is hermetically sealed and delivers a minimum of 8 gph (30.3 ) of water at 50° F (10° C) cooled from 80° F (26.7° C) inlet water at 90° F (32.2° C) ambient. 115 Volts, 60Hz, rated watts: 370, full load amps: 5. The botte filler requires a mounting plate; either the Haws model 6700 in-wall or the 6700R on-wall support plate.
