Home / Products / 2000S – Recessed Wall-Mount ADA Touchless Bottle Filling Station

2000S

Recessed Wall-Mount ADA Touchless Bottle Filling Station

Model 2000S bottle filling station, recessed wall-mounted, CSA certified, touch-free, hygienic, water dispenser that allows users to enjoy the benefits of fresh, filtered water. Add a personal touch by customizing the logo panel with your company name or logo. For customized ideas and format guidelines View logo panel brochure.

Spec Sheet Download

Technical Downloads

Spec Sheet

Installation Drawing

Parts Breakdown Drawing

Operational / Maintenance Manual

AutoCAD Installation Drawing

3D Revit (RFA)

MasterSpec® Files

Limited Warranty

View All Resources

Specifications

Model 2000S water dispenser is a semi-recessed, wall-mount wheel chair accessible bottle or cup filling station constructed of durable ABS plastic and 16 gauge, Type 304 Stainless Steel with a satin finish. A Haws stainless steel logo panel is supplied, with customized printing options available. The unit features an electric sensor for touch-free hygienic operation and a 30-second timeout preventing unwanted use, laminar flow to prevent splashing, and .5 gpm (1.9 L) flow rate for quick fill-up. 2,500-gallon (9464 L) carbon block filter reduces chlorine (taste and odor) and lead, and removes 99.99% of cysts. The mounting frame is of heavy gauge, galvanized steel. 110 volt, 60Hz, and .1 amp draw when in use. Tailpiece is 1-1/4" (32 mm) O.D. Provision for trap (not included) must be made in or behind wall.

Pricing Information

$3073 USD
Contact Haws Specials

Recessed Wall-Mount ADA Touchless Bottle Filling Station

The model 2000S bottle filling station is a touch-free, hygienic, water dispenser that allows users to enjoy the benefits of fresh, filtered water with none of the drawbacks of bottled water. The system is tested and certified by CSA against NSF/ANSI Standard 42 for the reduction of chlorine (taste and odor) and against NSF/ANSI Standard 53 for the reduction of lead and cysts. Recessed, in-wall-mounted design allows the bottle filling station to be placed securely in multiple locations without taking up excess space. The unit conveniently mounts between standard 16" (406 mm) studs and is practical for permanent, high-traffic applications such as schools, office buildings, fitness centers, and manufacturing facilities. Features and Benefits

Tested and certified by CSA against NSF/ANSI Standard 42 for the reduction of chlorine (taste and odor) and against NSF/ANSI Standard 53 for the reduction of lead and cysts, NSF/ANSI Standard 61, Section 9, NSF/ANSI 372, CSA Standard B483.1 and California Health and Safety Code 116875 (AB 1953)
Haws logo panel can be replaced with an optional custom printed logo panel
Manufactured to comply with the American with Disabilities Act when installed per requirements of the Accessibility Guidelines, Section 41.5 for Drinking Fountains & Water Coolers
ABS front panel is equipped with a hidden lock for easy access
Sensor features a 30-second timeout function which prevents unwanted use
Auto purge feature automatically cycles once every 24 hours to assure a fresh water supply as well as trap integrity
State-of-the-art integral water filtration system assures fresh, filtered water

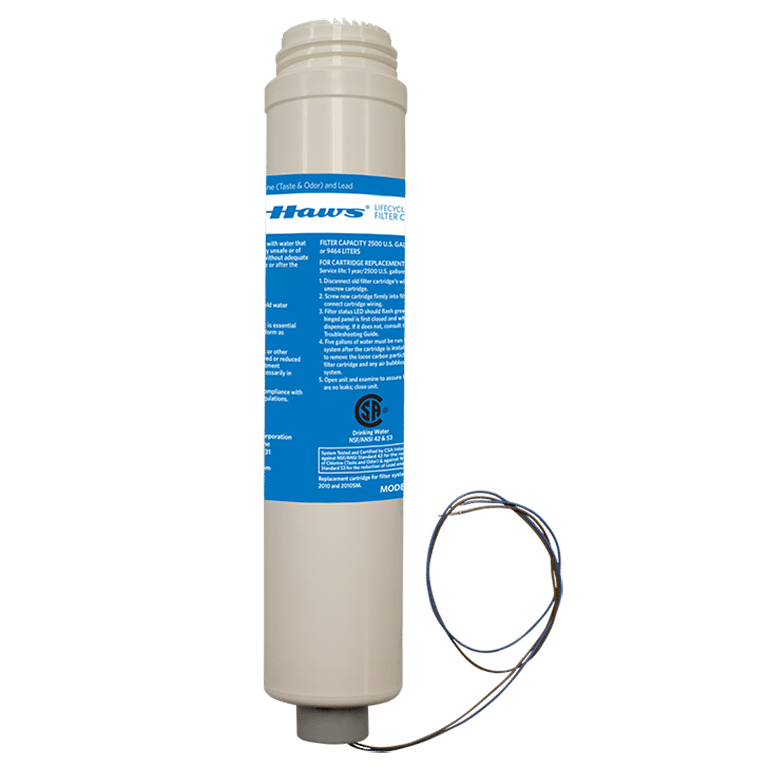

2,500 gallon (9464 L) capacity, Electronic Lifecycle Control filter cartridge, with filter replacement indicator light to notify when replacement is necessary, model 6423
16 gauge, Type 304 Stainless Steel back panel
Laminar flow prevents splashing, keeping the drinking area contained and clean
#4 satin finish back panel resists stains and corrosion
Intended for indoor use only

*Certified to reduce lead and cysts. Substances reduced may not be in all users' water.

Prop 65 Warning. For California Residents Warning: This product contains a chemical known to the State of California to cause cancer and/or birth defects or other reproductive harm. Please click here for more information.
