1109FR

ADA Outdoor Freeze Resistant Vandal-Resistant Fountain

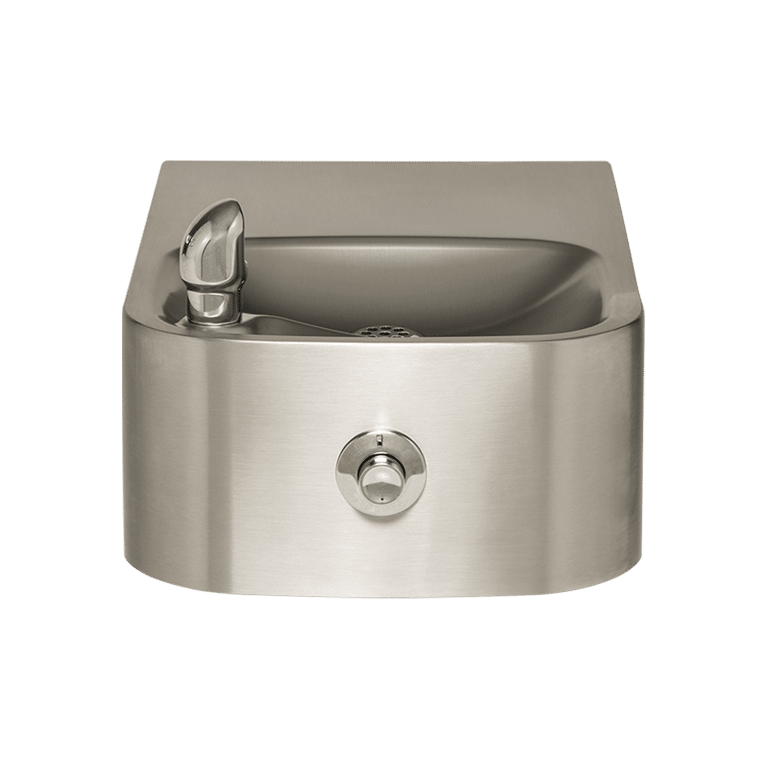

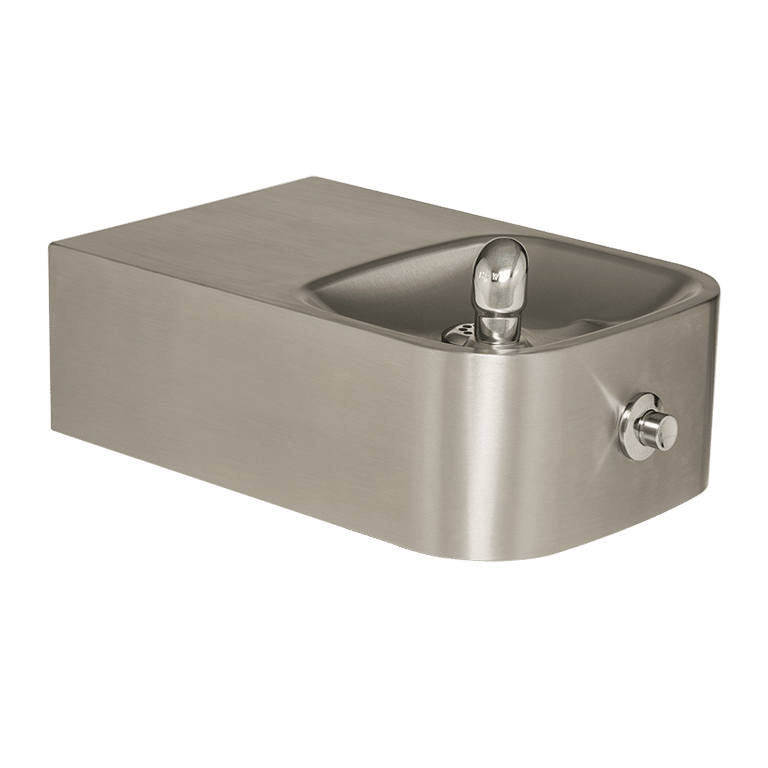

Model 1109FR, freeze-resistant, wall mounted, vandal-resistant barrier-free, satin finish stainless steel drinking fountain.

Spec Sheet Download

Required Parts Sold Separately

6521FR

Technical Downloads

Spec Sheet

Installation Drawing

Parts Breakdown Drawing

Operational / Maintenance Manual

AutoCAD Installation Drawing

MasterSpec® Files

Limited Warranty

Specifications

Model 1109FR wall mounted vandal-resistant barrier-free drinking fountain shall include an 18 gauge Type 304 Stainless Steel satin finish basin, polished chrome-plated brass vandal-resistant bubbler head, polished chrome-plated brass vandal-resistant push-button which a pneumatic valve installed on the inside wall where room temperatures do not drop below 50° F (10° C), self-draining water lines which protect the unit from freezing, polished chrome-plated brass vandal resistant waste strainer, vandal-resistant stainless bottom plate, and 1-1/4" O.D. (3.2 cm) waste pipe. .............................................................................. ............................................................................................... REQUIRES MODEL 6521FR PRICED SEPARATELY.

Pricing Information

$1535 USD
Contact Haws Specials

ADA Outdoor Freeze Resistant Vandal-Resistant Fountain

The Haws 1109FR barrier-free vandal-resistant drinking fountain uses a fully engineered pneumatic operated freeze-resistant valve assembly for continual use during winter months. Wall mounted design allows the 1109FR to be placed securely in multiple locations without taking up excess space. Equipped with vandal resistant components, this fountain is not easily disrupted, quickly discouraging vandals.

18 gauge Type 304 Stainless Steel design provides a well constructed sturdy fountain
Vandal resistant components include the bubbler, button, drain and bottom plate
Beautiful satin finish resists stains and corrosion
Soft rounded corners prevent mishaps and other accidents that may occur once the fountain is installed
One-piece stamped bowl makes for an aesthetically pleasing and durable design

Model meets all current Federal Regulations for the disabled including those in the Americans with Disabilities Act. Haws manufactures drinking fountains, faucets and electric water coolers to be lead-free by all known definitions including NSF/ANSI/CAN 61- Section 9, NSF/ANSI/CAN 372, California Proposition 65, and the Federal Safe Drinking Water Act. Product is compliant to California Health and Safety Code 116875 (AB 1953-2006), and NSF/ANSI/CAN 61: Q ≤ 1.

Prop 65 Warning. For California Residents Warning: This product contains a chemical known to the State of California to cause cancer and/or birth defects or other reproductive harm. Please click here for more information.
