8760

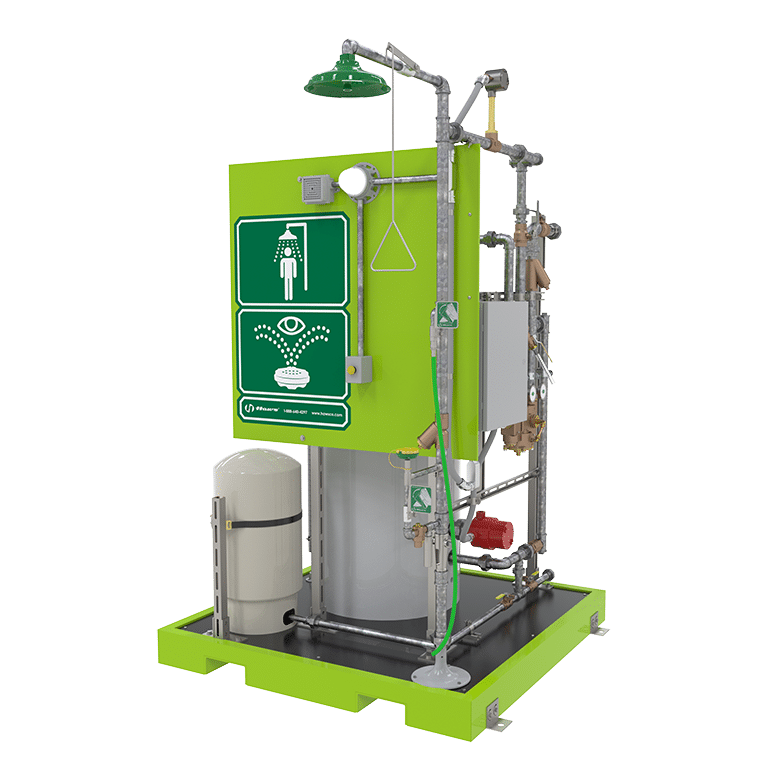

ePOD™ Skid-Mounted Emergency Tempered Shower and Eye/Face Wash System

Model 8760 ePOD™ aluminum channel skid-mounted shower and eye/face wash with a tempered water blending system, internal hot water supply, and light. THIS MODEL HAS BEEN DISCONTINUED.

Spec Sheet Download

Technical Downloads

View All Resources

Specifications

Model 8760 ePOD™ shower and eye/face wash tempering skid mixes it’s pre-heated water supply in its onboard storage tank with low temperature facility water through its Haws Tempered Water Blending System, to produce an ANSI compliant water supply for all safety equipment in the plumbed system. It shall include an aluminum channel 5' x 5' (1.5 x 1.5 m) frame with a composite equipment platform, with safety green chemical and UV resistant polyester based powder coating. There is a 20 gpm (75.7 L) AXION shower head, an eyewash that features the medically acclaimed AXION® MSR eye/face wash head assembly. This single shower and/or eyewash or multiple shower/eyewash tempering unit provides an operating temperature range of 35° to 120° F (1.67° to 48.9° C), supplied with 480V single phase tie in, and is designed to operate with a number of tempering and electrical options. The tempered water blending system will include an integral hot water supply, and will incorporate fail-safe features like anti-scald protection and full flow cold water bypass. The electrical system can be easily adapted to voltages upon request. Combination shower and eyewash is certified by CSA to meet the ANSI Z358.1 Standard for emergency Eyewash and Shower Equipment. For the electrical certification, the system is certified by accredited Certification Body.
