8317CTFP.220V

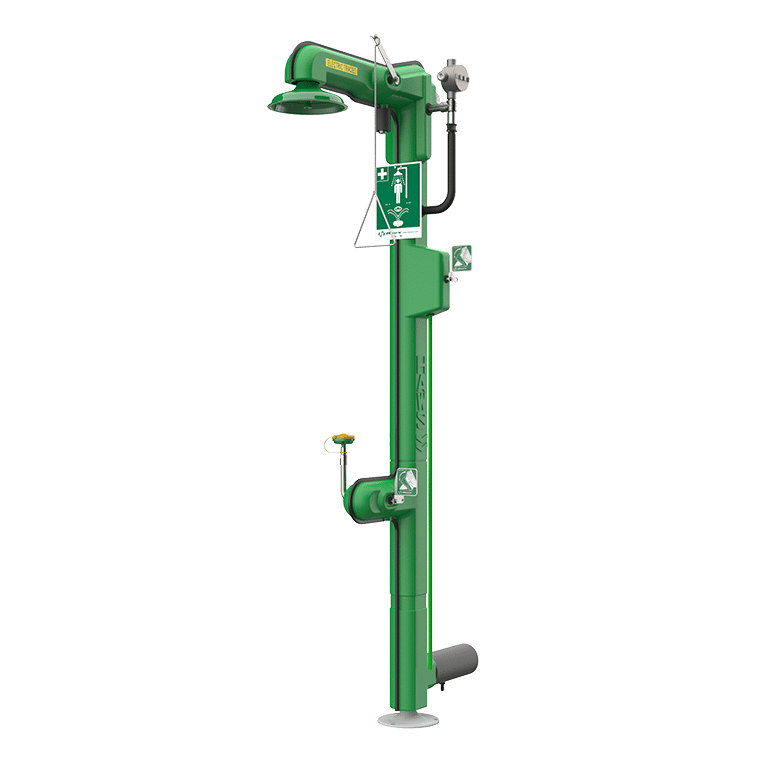

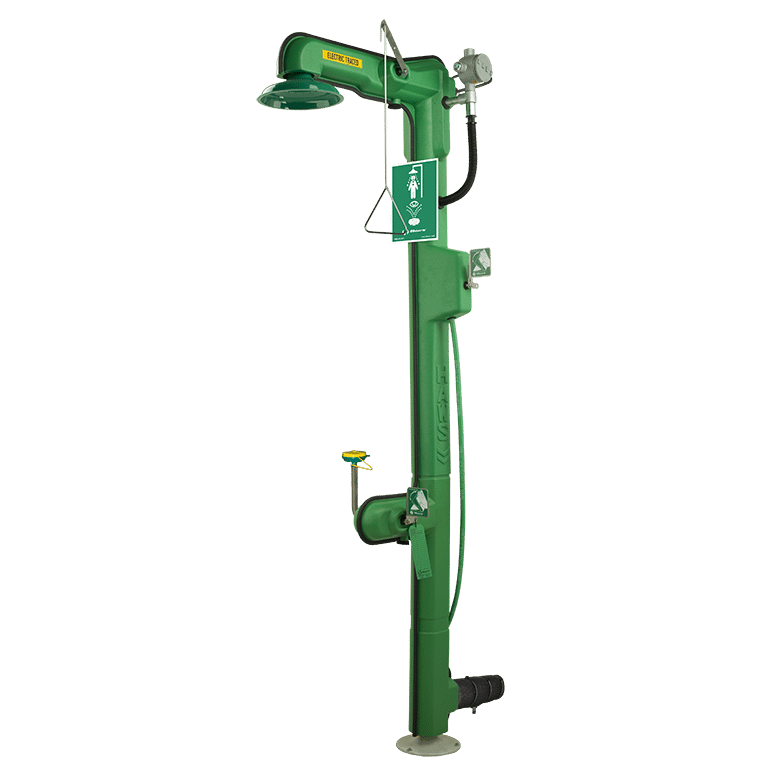

AXION® MSR Freeze Protected Shower and Eye/Face Wash

Model 8317CTFP.220V cable heated, freeze protected, combination shower and eye/face wash, with top or bottom supply, 220 VAC, and with AXION® MSR eye/face wash and showerhead.
Contact Us for a Custom Solution

Spec Sheet Download

Technical Downloads

View All Resources

Specifications

Model 8317CTFP.220V freeze protected 220 VAC cable heated combination shower and eye/face wash shall include the AXION® MSR hydrodynamic designed green ABS plastic 10-5/8" (26.9 cm) showerhead with integral self-regulating 20 gpm flow control, an AXION® MSR eye/face wash head that features inverted directional laminar flow which achieves Zero Vertical Velocity™ supplied by an integral 4 gpm flow control, brass shower and eyewash ball valves equipped with stainless steel ball and stem, separate ball valve activated hose spray, and automatic thermal actuator freeze protection bleed valve. Unit shall also include thermostatically controlled electric heat traced cable protected by 3/4" (1.9 cm) insulation and UV protected ABS green plastic jacket that prevents freezing down to ambient temperatures of -30° F (-34.4° C), powder-coated cast-iron 9" (22.9 cm) diameter floor flange, universal sign, 1-1/4" NPT supply, and rated Class I, Division 2, Group B, C and D, with a 1.25 amp max. (Class I, DIV I is available as a special option)
