H1011.8HPS

ADA Chilled High-Polished Vandal-Resistant Fountain

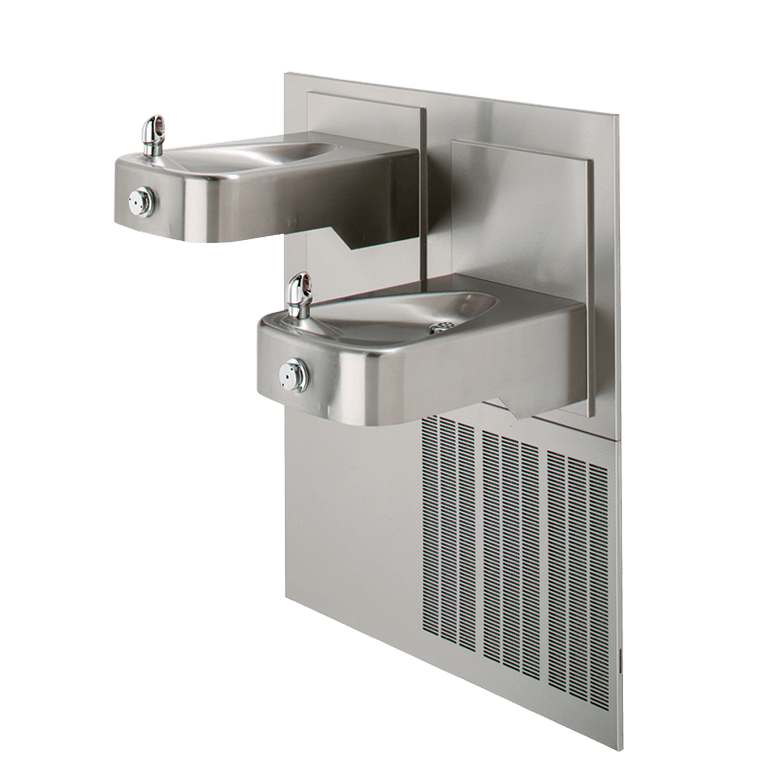

Model H1011.8HPS ADA vandal-resistant, dual high-polished stainless steel electric water coolers with round sculpted bowls, and 100% lead-free waterways.
Contact Us for a Custom Solution

Spec Sheet Download

Required Parts Sold Separately

Technical Downloads

Spec Sheet

Installation Drawing

Parts Breakdown Drawing

Operational / Maintenance Manual

AutoCAD Installation Drawing

3D Revit (RFA)

MasterSpec® Files

Limited Warranty

Specifications

Model H1011.8HPS ADA vandal-resistant electric wall mounted water cooler shall include dual 18-gauge Type 304 polished stainless steel finish basins with integral swirl design, 14-gauge Type 304 high-polished stainless steel wall bracket, 100% lead-free waterways, vandal-resistant push-button operated stainless steel valves with front-accessible cartridge and flow adjustment, polished chrome-plated brass vandal-resistant bubbler heads with integral laminar anti-squirt flow, chrome-plated brass vandal-resistant waste strainers, vandal-resistant bottom plates, polished stainless steel finish back panel and louvered intrusion-proof grill, high and low fountain mounting levels, and 1-1/4" (3.2 cm) O.D. waste pipe. The R-134a refrigeration system is hermetically sealed and delivers a minimum of 8 gph (30.3 ) of water at 50° F (10° C) cooled from 80° F (26.7° C) inlet water at 90° F (32.2° C) ambient. 115 Volts, 60Hz, rated watts: 370, full load amps: 5. .............. ..............................................................................................REQUIRES MODEL HCR8 AND MTGFR.LG PRICED SEPARATELY.

ADA Chilled High-Polished Vandal-Resistant Fountain

Model H1011.8HPS vandal-resistant electric water cooler provides 8 gph (30.3 L) chilled water performance in an engineered polished stainless steel skin. This wall-mounted swirl bowl designed fountain offers the only all stainless-steel valve body that is machined out of solid bar stock, is fully serviceable through the front of the push button assembly offering access to the water control cartridge and integral water supply strainer, and has front access to the water stream height adjustment for easy maintenance without having to remove the valve. Outfitted with such protective features as vandal-resistant bubbler heads, waste strainer, and bottom plates, these electric water coolers are quick to discourage vandals.

18-gauge Type 304 high-polished stainless steel bowl assembly mounted on a 14-gauge Type 304 high-polished stainless steel wall bracket
Vandal resistant components include the bubblers, bowls, buttons, drains and bottom plates
100% lead-free waterways
Grille slots are designed to eliminate sharp edges and are backed with a foam filter to protect the fan motor and high displacement compressor from debris
Designed to run at a low energy usage, this water cooler is assured to have a long-lasting life
Laminar flow prevents splashing, keeping the drinking area contained and clean
Maintenance is made easy with front access to valve adjustment and cartridge replacement
Beautiful polished finish resists stains and corrosion

Model meets all current Federal Regulations for the disabled including those in the Americans with Disabilities Act. Haws manufactures drinking fountains, faucets and electric water coolers to be lead-free by all known definitions including NSF/ANSI/CAN 61- Section 9, NSF/ANSI/CAN 372, California Proposition 65, and the Federal Safe Drinking Water Act. Product is compliant to California Health and Safety Code 116875 (AB 1953-2006), and NSF/ANSI/CAN 61: Q ≤ 1. Note: Electric water coolers are not recommended or designed for outdoor applications or enclosed pool areas (chlorine). These conditions may void warranty.
