Thermostatic Mixing Valve

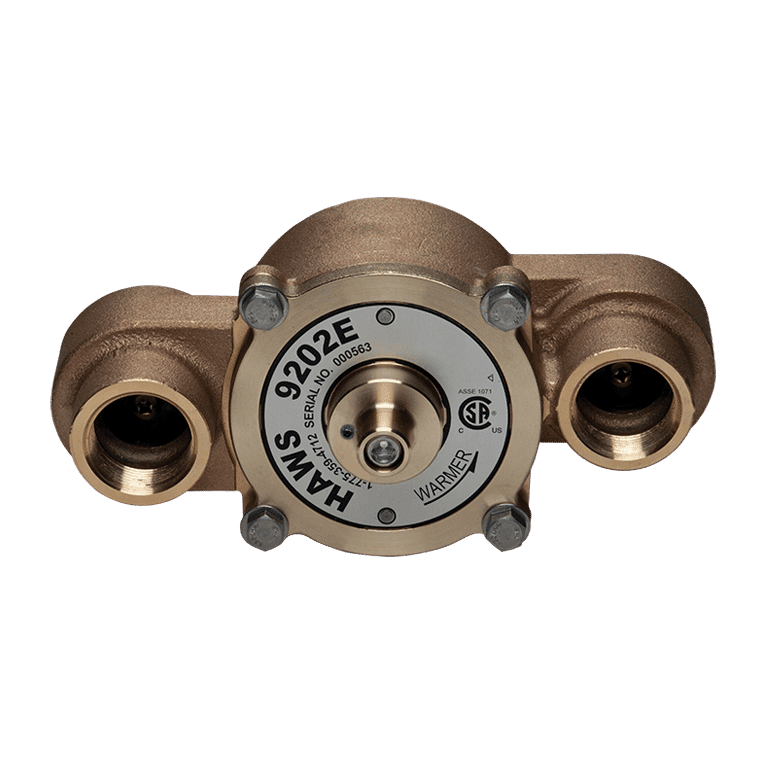

Model 9202E AXION® Emergency Tempering Valve thermostatically mixes hot and cold water to provide a safe fluid supply for emergency showers and eyewash equipment, with a flow rate of 78 gpm (295 L).

Spec Sheet Download

Technical Downloads

Spec Sheet

Installation Drawing

Parts Breakdown Drawing

Operational / Maintenance Manual

AutoCAD Installation Drawing

Limited Warranty

MasterSpec® Files

Limited Warranty

Specifications

Model 9202E (patent pending) is a thermostatic mixing valve that mixes hot and cold water to supply tempered water to emergency eyewash fixtures requiring flow up to 78 gpm (295 L). This valve can be housed in an optional Haws surface mounted or recessed mounted cabinet. Unit employs a paraffin filled thermostatic mixing element. Lowest internal pressure drop where supply pressure is low, and a high Cold Water Bypass flow rate of 50 gpm (189 L). The improved brass design with a one piece casting uses internal check stops, over-sized valve seats, a shuttle design that eliminates valve binding, and a funnel design to improve temperature control with better mixing at low flow rates. Lime and calcium resistant components are used throughout. The outlet temperature factory setting is 85° F (26° C). Maximum operating pressure: 125 psi (8.62 Bar). Temperature adjustment range 60-95° F (15 - 35° C). Maximum inlet temperature: 180° F (82° C). Recommended inlet temperature: 140° F (60° C). Minimum inlet temperature: 120° F (49° C) Inlets 1-1/4" NPT(F). Outlet 1-1/4" NPT(F).

Pricing Information

$1915 USD
Contact Haws Specials

Thermostatic Mixing Valve

Model 9202E Emergency Valve (patent pending) thermostatically mixes hot and cold water to provide a safe fluid supply for emergency showers and eyewash equipment. Additionally, to ensure a fail-safe water supply for emergency shower and eyewash stations, a series of cold water by-pass valves open in the event of hot water pressure loss. (No gauges supplied - ASSE 1071 standard recommends gauges be placed 5 to 8 feet (1.52 to 2.44 m) downstream for the most accurate measurement.)

Optional recessed or surface mounted valve box available
A flow rate of 1 to 78 gpm (295 L) for better temperature control across the operating range
Lowest internal pressure drop for this class of valve (advantage where supply pressure is low)
Wax based thermostat technology for fast response time with proven highly reliable temperature control
Highest Cold Water Bypass flow rate in the industry (64% of rated tepid flow rate)
Brass valve design with internal check stops
Over-sized valve seats resist failures caused by foreign matter
A new and efficient shuttle design eliminates valve sticking
A custom funnel design improves temperature control at low flow rates
Outlet temperature is factory set to 85° F (29° C)
Tempered water: High temperature limit is factory set to 90° F (32° C)
Cold water by-pass valves are closed during normal operation, regardless of flow rate
For important installation information, please read Scald Warning.

CSA Listings: CSA certified per ASSE 1071, ANSI Z358.1 and applicable sections of CSA B125.3.
