8740

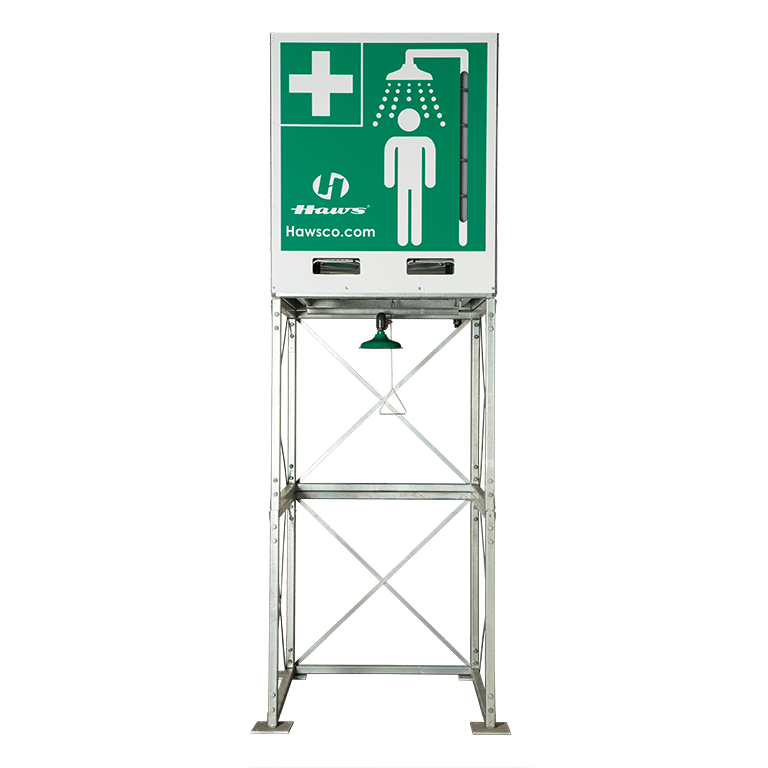

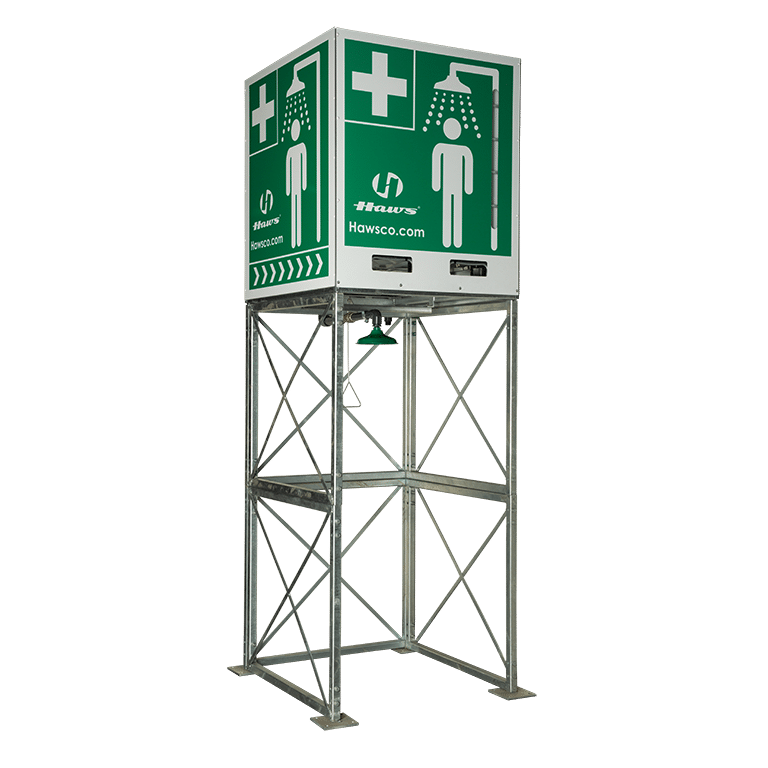

Emergency Overhead Tank Shower

Model 8740, indoor overhead tank shower. THIS MODEL HAS BEEN DISCONTINUED.

Spec Sheet Download

Technical Downloads

View All Resources

Specifications

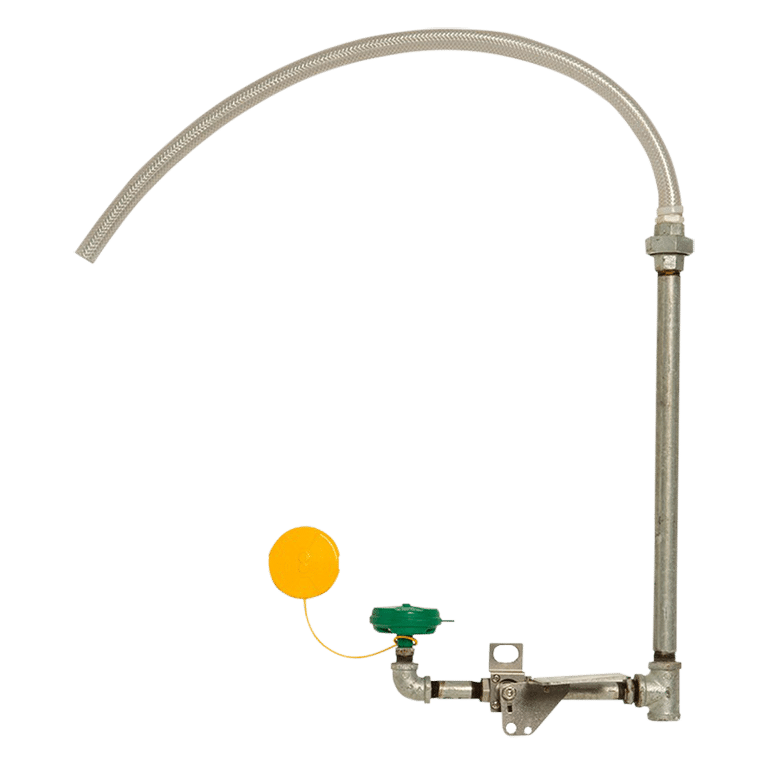

The Haws 8740 emergency overhead tank shower is designed for indoor installation. The ANSI/ISEA Z358.1 compliant design as a self contained shower is to be used in 60° - 100° F (16° - 38° C) ambient temperatures. Modular six piece galvanized frame is easily assembled and disassembled for flexible placement options. Frame includes mounting feet with 4 bolt holes each for increased stability, and integral forklift slots for easy mobility. This unit includes a 330-gal IBC high-density polyethylene tank, supply inlet piping, auto-fill valve for refill, breather vent and 2" NPT ball valve integral to tank for shower piping. Adheres to International Building Code 2012. Min Fill pressure: 20 PSIG with a minimum fill flow rate of 15 GPM. Max fill pressure: 60 PSIG. Large high-visibility green and white universal signage for quick identification on three sides. Supply inlet: 1-1/4" NPTM PVC fitting. Standard plugged pipe fitting supplied for optional AXION eye/face wash assembly. Optional model 9084 cleansing stick can be used to provide continual protection against pathogenic bacteria in the water for up to 3 years. Model 8740 is certified by CSA to meet the ANSI Z358.1 Standard for Emergency Eyewash and Shower Equipment". Note: This unit must be plumbed through the supply inlet for ANSI Z358.1 compliance.
