AXION® MSR Unmounted Eye/Face Wash

Model 7460, unmounted eye/face wash with AXION^® MSR eye/face wash head.

Spec Sheet Download

Technical Downloads

Spec Sheet

Installation Drawing

Parts Breakdown Drawing

Operational / Maintenance Manual

Install and Maintenance Guide

AutoCAD Installation Drawing

Limited Warranty

Specifications

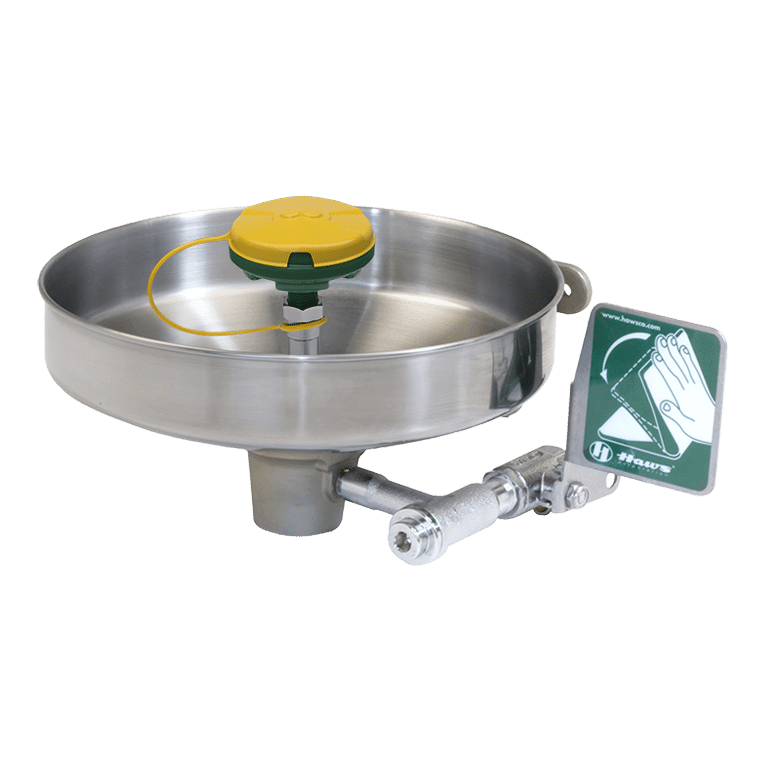

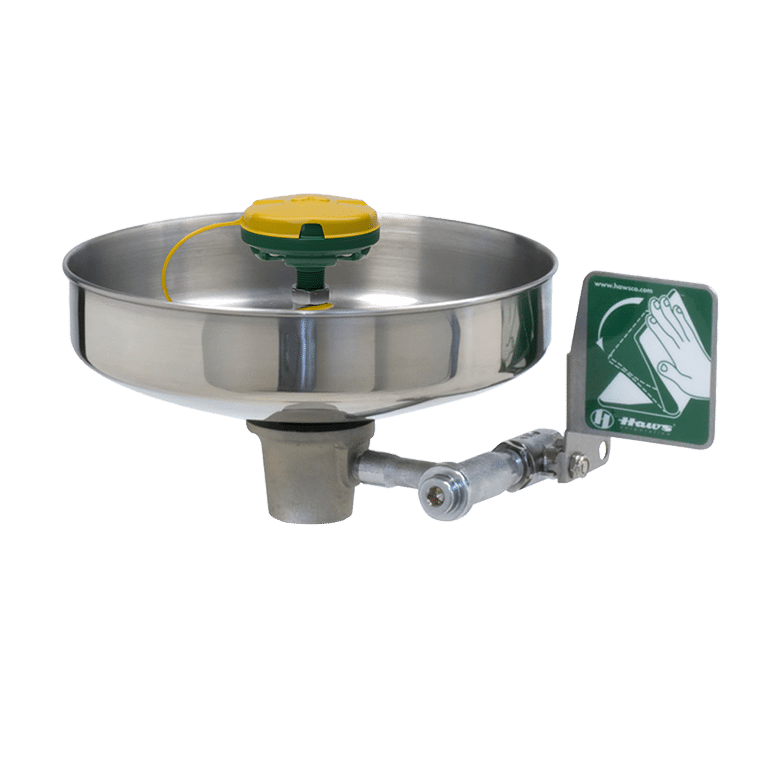

Model 7460 unmounted eye/face wash shall include a stainless steel 11" (27.9 cm) round bowl, an AXION^® MSR eye/face wash head to help protect against the growth of mold and mildew on the treated components, and shall feature inverted directional laminar flow which achieves Zero Vertical Velocity™ supplied by an integral 3.7 gpm flow control, and a chrome-plated brass stay-open ball valve equipped with stainless steel ball and stem. Unit shall also include a chrome-plated brass in-line 50 x 50 mesh water strainer, yellow plastic pop-off dust cover for eyewash head, universal sign, 1/2" NPT inlet, and 1-1/4" NPT waste.

Pricing Information

$713 USD
Contact Haws Specials

AXION® MSR Unmounted Eye/Face Wash

Model 7460 unmounted eye and face wash features the medically acclaimed AXION MSR eye/face wash head assembly (patent pending). This revolutionary inverted flow design is the only product on the market that provides a Medically Superior Response consistent with all EMT, emergency room and doctors' office protocols by sweeping contaminants away from the vulnerable nasal cavity. Traditional eyewashes irrigate from the outside edge of the eye back toward the nose, where contaminants can then be flushed into the nasal cavity through the lacrimal punctum, nature's ocular cavity drain.

Eyewash streams provide Zero Vertical Velocity™ stream engineering with even laminar flow for enhanced comfort, stability and effectiveness
Features a round 11" (27.9 cm) stainless steel receptor
Includes a mesh in-line strainer to collect line debris, and ball valve with stainless steel ball and stem for durability
Supply: 1/2" NPT. Waste: 1- 1/4" NPT
ANSI Z358.1 tempering compliance options

Certified by CSA to meet the ANSI Z358.1 Standard for Emergency Eyewash and Shower Equipment.
