Freeze Protected Wall Mount Eyewash

Model 7433FP, wall-mounted, freeze protected eyewash with Soft-Flo heads.

Spec Sheet Download

Technical Downloads

Installation Drawing

Parts Breakdown Drawing

Operational / Maintenance Manual

Install and Maintenance Guide

AutoCAD Installation Drawing

Spec Sheet

Limited Warranty

Specifications

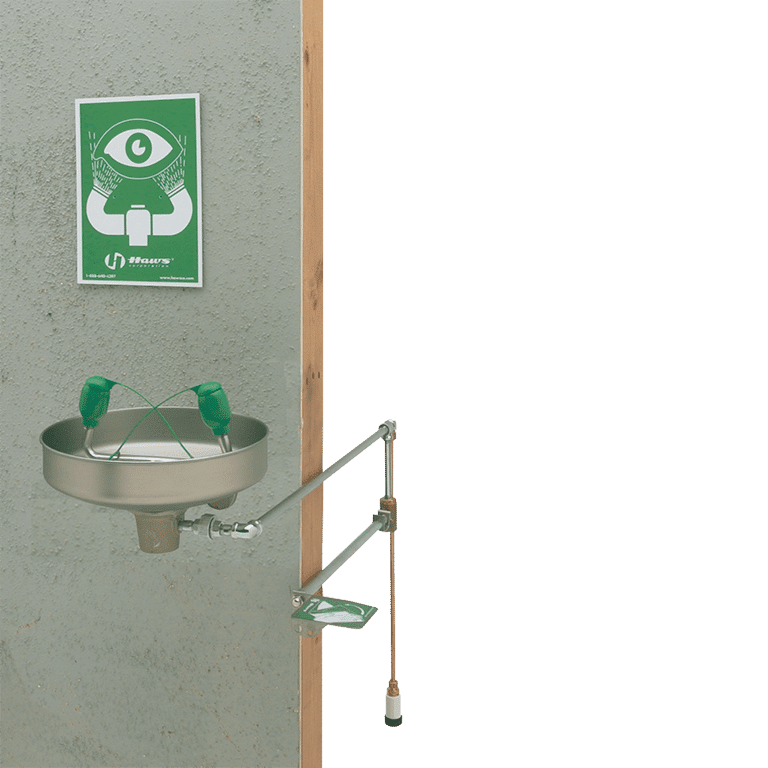

Model 7433FP freeze protected wall-mounted eyewash shall include a stainless steel 11" (27.9 cm) round bowl, stainless steel eyewash yoke assembly with Soft-Flo ABS plastic eyewash anti-surge heads with integral flow controls and dust covers, self-draining valve, and brass stay-open ball valve equipped with stainless steel ball and stem, and stem extension. Unit to be used with a maximum wall thickness of 12" (30.5 cm) and shall include a self-draining system so all unused water drains out of the unit through a drain valve behind the wall, a chromate protective cast-aluminum wall bracket, universal sign, 1/2" NPT inlet, and 1-1/4" NPT outlet.

Pricing Information

$1326 USD
Contact Haws Specials

Freeze Protected Wall Mount Eyewash

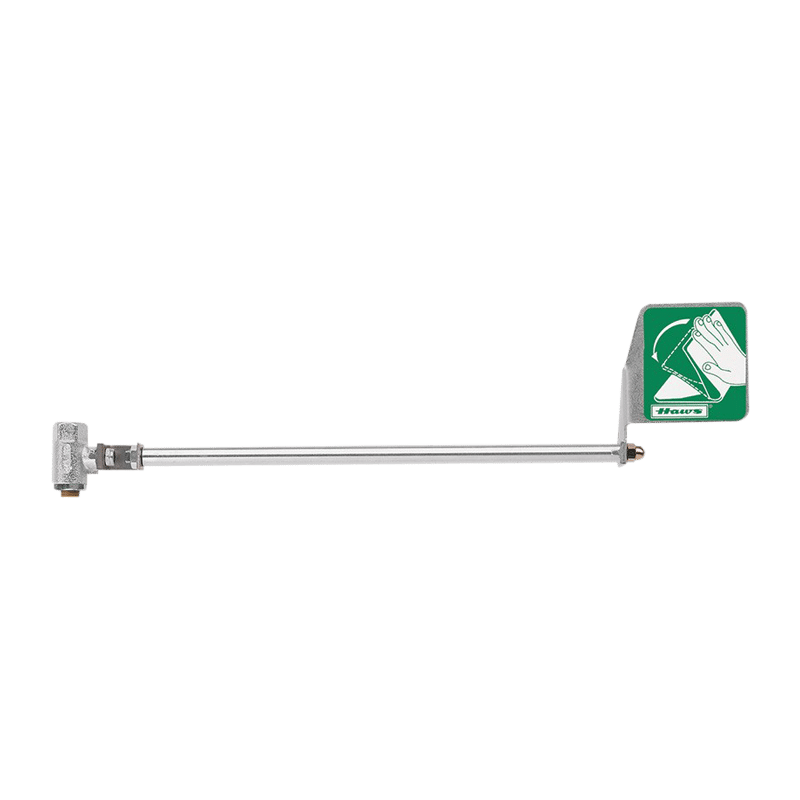

Haws emergency eyewash systems, like the freeze protected 7433FP, use anti-surge Soft-Flo heads that activate with the push of a stainless steel flag. Heads come equipped with pop-off dust covers, so when debris is present, the irrigation process stays protected. Space efficient design and integral wall bracket allow the 7433FP to be mounted in a number of easily accessible locations.

A great addition to multiple unsafe environments where the eyes may be exposed to corrosive materials
Easily detected and maintained, emergency equipment is equipped with safety sign and test card to record weekly testing
Reducing installation time, eyewash and valve assembly is pre-built and fully water/pressure tested
Fully functional in freezing environments when installed properly
All unused water drains out of the unit through a drain valve behind the wall
Certified by CSA to meet the ANSI Z358.1 Standard for Emergency Eyewash and Shower Equipment
