1501-1920W

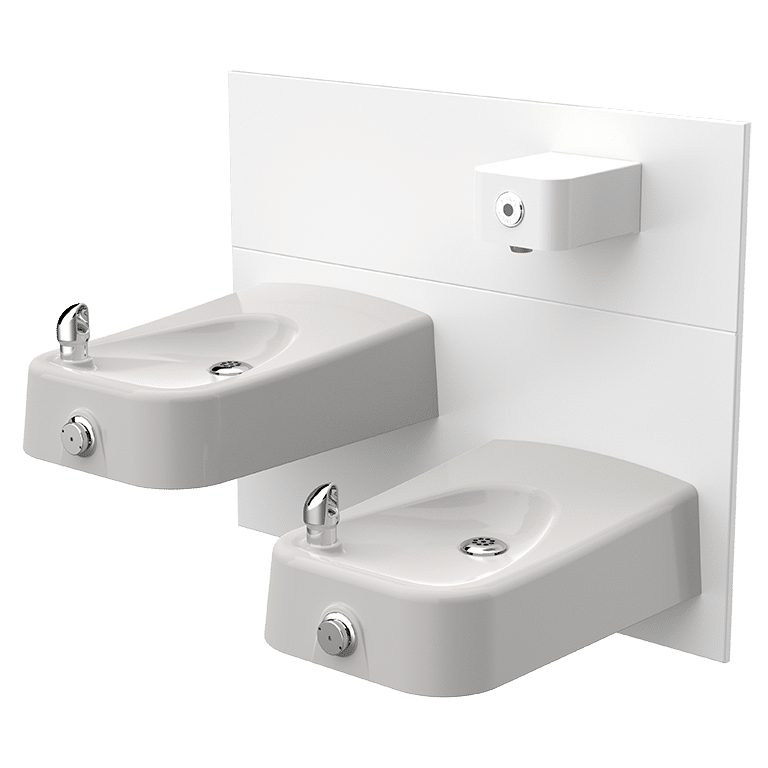

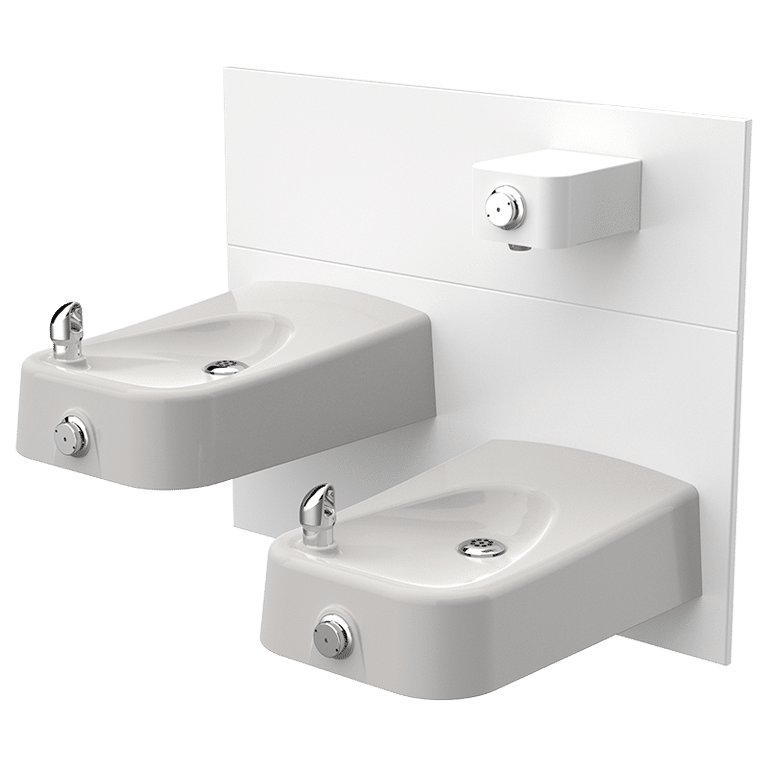

ADA Vandal-Resistant Enameled Iron Fountain and Bottle Filler

Model 1501-1920W, ADA wall mounted, vandal-resistant white enameled-iron fountain and white powder-coated bottle filler.

Required Components Ordered Separately

Spec Sheet & Installation Drawing

3D Revit (RFA)

MasterSpec® Files

Limited Warranty

Specifications

Model 1501-1920W wall mounted vandal-resistant ADA dual drinking fountain and bottle filler shall include white enameled-iron basins with 14 gauge Type 304 powder-coated Stainless Steel bottle filler bracket, 3/16″ (.47 cm) thick steel mounting plate for bottle filler, 100% lead-free waterways, vandal-resistant push-button operated stainless steel valves with front-accessible cartridge and flow adjustment, polished chrome-plated brass vandal-resistant bubbler heads with integral anti-squirt flow, 1 gpm (3.78 L) laminar flow bottle filler, chrome plated brass vandal- resistant waste strainer, vandal-resistant bottom plates, and a 1-1/4" NPT trap. In extreme environments related to heat and cold, product(s) must be protected from damage/exposure due to these extreme conditions. REQUIRES MODELS 1501, 1920W, 6700, BP32W & 6715 ORDERED SEPARATELY.

Pricing Information

$5958 USD
Contact Haws Specials

ADA Vandal-Resistant Enameled Iron Fountain and Bottle Filler

The Haws 1501-1920W ADA vandal-resistant drinking fountain and bottle filler uses patented stainless steel, push-button activated, valve assemblies allowing for front access stream adjustment as well as cartridge and strainer access. This wall mounted fountain offers the 'only' all stainless-steel valve body that is machined out of solid bar stock, is fully serviceable through the front of the push button assembly offering access to the water control cartridge and integral water supply strainer, and has front access to the water stream height adjustment for easy maintenance without having to remove the valve.

Optional 3000 gallon water filter available (model 6480)
Only stainless steel valve body that is machined out of solid bar stock
100% lead-free waterways
Vandal resistant components include the bubblers, buttons, drains and bottom plates
White enameled-iron fountain design provides toughness for the worst of environments
1 gpm (3.78 L) bottle filler laminar flow
Easy maintenance with front access to valve adjustment and cartridge replacement
Beautiful white enamel fountain and powder-coated bottle filler combination brings pleasing aesthetics to any environment
Soft rounded corners prevent from mishaps and other accidents that may occur once the fountain is installed

Model meets all current Federal Regulations for the disabled including those in the Americans with Disabilities Act. Haws manufactures drinking fountains, faucets and electric water coolers to be lead-free by all known definitions including NSF/ANSI/CAN 61- Section 9, NSF/ANSI/CAN 372, California Proposition 65, and the Federal Safe Drinking Water Act. Product is compliant to California Health and Safety Code 116875 (AB 1953-2006), and 116876 (AB 100) "NSF/ANSI/CAN 61: Q ≤ 1".
