Home / Products / 1119-1920HO – ADA Vandal-Resistant Dual Fountain and Motion-Activated Bottle Filler

1119-1920HO

ADA Vandal-Resistant Dual Fountain and Motion-Activated Bottle Filler

Model 1119-1920HO, Hi-Lo ADA vandal-resistant wall mounted, dual stainless steel drinking fountain and touchless bottle filler. The bottle filler requires a mounting plate; either the 6700 in-wall or the 6700R on-wall support plate. (See options below) FOR INDOOR USE ONLY
Contact Us for a Custom Solution

Required Parts Sold Separately

Fountain with Bottle Filler Spec Sheet

MasterSpec® Files

Limited Warranty

Specifications

Model 1119-1920HO Hi-Lo wall mounted vandal-resistant ADA drinking fountain and motion activated bottle filler shall include dual 18 gauge Type 304 Stainless Steel satin finish basins, 14 gauge bottle filler bracket, sensor operated solenoid valve with 30-second obstruction time-out on the bottle filler, and vandal-resistant push-button operated stainless-steel valves with front-accessible cartridge and flow adjustment on the fountain, 100% lead-free waterways, polished chrome-plated brass vandal-resistant bubbler heads with integral laminar anti-squirt flow, 1 gpm (3.78 L) laminar flow bottle filler, polished chrome-plated brass vandal-resistant waste strainers, vandal-resistant bottom plates, stainless steel satin finish back panels, high and low fountain mounting levels, and 1-1/4" NPT traps. The botte filler requires a mounting plate; either the Haws model 6700 in-wall or the 6700R on-wall support plate.

Pricing Information

$4452 USD
Contact Haws Specials

ADA Vandal-Resistant Dual Fountain and Motion-Activated Bottle Filler

The Haws 1119-1920HO Hi-Lo ADA vandal-resistant drinking fountain and touchless bottle filler incorporates a sensor operated stainless steel solenoid valve controlled by a transformer for hands-free operation on the bottle filler, and offers the ‘only’ all stainless-steel valve body that is machined out of solid bar stock on the fountain. It is fully serviceable through the front of the push button assembly offering access to the water control cartridge and integral water supply strainer and has front access to the water stream height adjustment for easy maintenance without having to remove the valve.

Only stainless steel valve body that is machined out of solid bar stock
100% lead-free waterways
Vandal resistant components include the bubblers, buttons, drains and bottom plates
30-second obstruction time-out to reduce tampering of sensor
18 gauge Type 304 Stainless Steel design provides a well constructed sturdy fountain
1 gpm (3.78 L) bottle filler laminar flow
Easy maintenance with front access to valve adjustment and cartridge replacement
Beautiful satin finish resists stains and corrosion
"Hi-Lo" design allows for twice the users as regular fountains and suits the needs for various user heights
Soft rounded corners prevent from mishaps and other accidents that may occur once the fountain is installed
One-piece stamped bowls make for an aesthetically pleasing and durable design

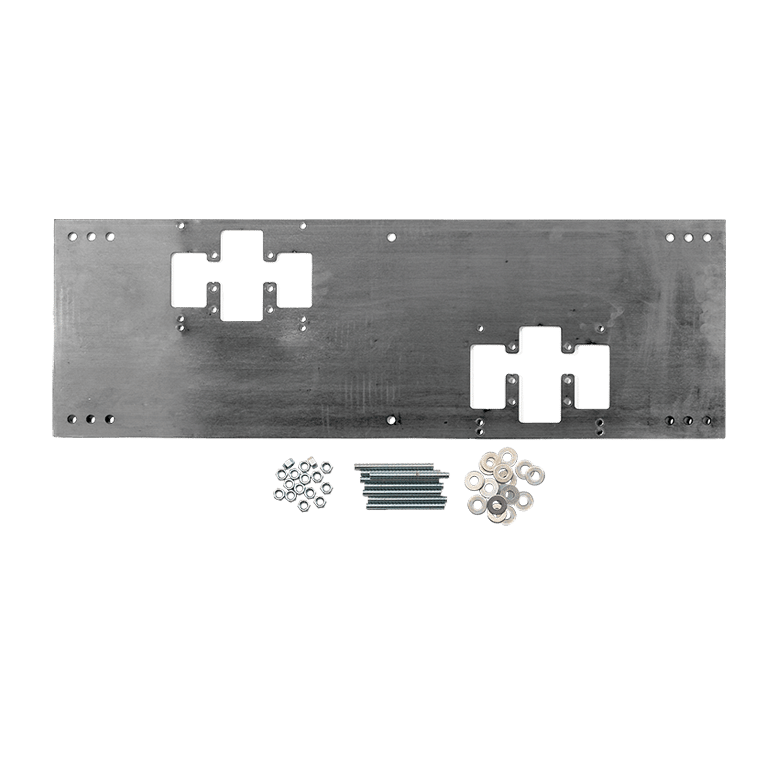

The bottle filler requires a mounting plate; either the 6700 in-wall or the 6700R on-wall support plate. (See options below)

Model meets all current Federal Regulations for the disabled including those in the Americans with Disabilities Act. Haws manufactures drinking fountains, faucets and electric water coolers to be lead-free by all known definitions including NSF/ANSI/CAN 61- Section 9, NSF/ANSI/CAN 372, California Proposition 65, and the Federal Safe Drinking Water Act. Product is compliant to California Health and Safety Code 116875 (AB 1953-2006), and 116876 (AB 100) "NSF/ANSI/CAN 61: Q ≤ 1".

Prop 65 Warning. For California Residents Warning: This product contains a chemical known to the State of California to cause cancer and/or birth defects or other reproductive harm. Please click here for more information.
