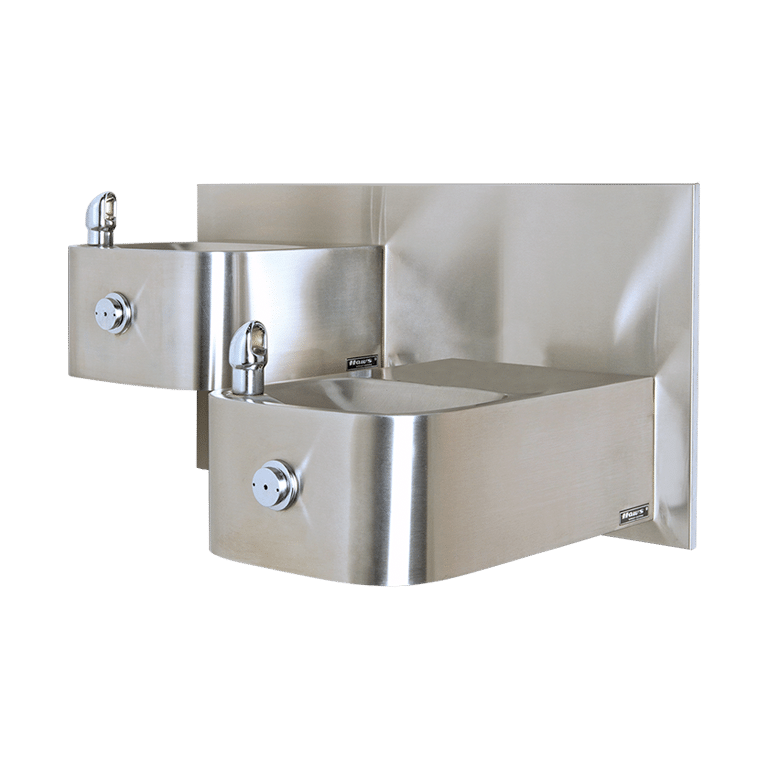

ADA Vandal-Resistant 14 Gauge Dual Drinking Fountain

Model 1119.14, Hi-Lo ADA, wall mounted vandal-resistant,14 gauge satin finish stainless steel drinking fountain with a back panel, and 100% lead-free waterways.
Contact Us for a Custom Solution

Spec Sheet Download

Technical Downloads

Spec Sheet

Installation Drawing

Parts Breakdown Drawing

Operational / Maintenance Manual

AutoCAD Installation Drawing

3D Revit (RFA)

MasterSpec® Files

Limited Warranty

Specifications

Model 1119.14 Hi-Lo wall mounted vandal-resistant barrier-free drinking fountain shall include dual 14 gauge Type 304 Stainless Steel satin finish basins with integral 1/4" (.6 cm) stainless steel mounting plates, vandal-resistant push-button operated stainless steel valves with front-accessible cartridge and flow adjustment, 100% lead-free waterways, polished chrome-plated brass vandal-resistant bubbler heads, polished chrome-plated brass vandal-resistant waste strainers, vandal-resistant bottom plates, stainless steel satin finish back panel, high and low fountain mounting levels, and 1-1/4" NPT traps. In extreme environments related to heat and cold, product(s) must be protected from damage/exposure due to these extreme conditions.

Touchless sensor upgrades available—call Customer Service at (888) 640-4297:
First sensor +$331, each additional sensor +$107

Pricing Information

$3334 USD
Contact Haws Specials

ADA Vandal-Resistant 14 Gauge Dual Drinking Fountain

The Haws 1119.14 barrier-free Hi-Lo vandal-resistant drinking fountain uses a patented stainless steel, push-button activated, valve assembly allowing for front access stream adjustment as well as cartridge and strainer access. This wall mounted fountain offers the 'only' all stainless-steel valve body that is machined out of solid bar stock, is fully serviceable through the front of the push button assembly offering access to the water control cartridge and integral water supply strainer, and has front access to the water stream height adjustment for easy maintenance without having to remove the valve.

Optional 3000 gallon water filter available (model 6480)
Only stainless steel valve body that is machined out of solid bar stock
100% lead free waterways
Vandal resistant components include the bubblers, buttons, drains and bottom plates
14 gauge Type 304 Stainless Steel construction and specialized integral mounting plate offer even more protection with a sturdier design
Easy maintenance with front access to valve adjustment and cartridge replacement.
Beautiful satin finish resists stains and corrosion
Soft rounded corners prevent mishaps and other accidents that may occur once the fountain is installed
"Hi-Lo" design allows for twice the users as regular fountains and suits the needs for various user heights
One-piece stamped bowls make for an aesthetically pleasing and durable design

Model meets all current Federal Regulations for the disabled including those in the Americans with Disabilities Act. Haws manufactures drinking fountains, faucets and electric water coolers to be lead-free by all known definitions including NSF/ANSI/CAN 61- Section 9, NSF/ANSI/CAN 372, California Proposition 65, and the Federal Safe Drinking Water Act. Product is compliant to California Health and Safety Code 116875 (AB 1953-2006), and 116876 (AB 100) "NSF/ANSI/CAN 61: Q ≤ 1".

Prop 65 Warning. For California Residents Warning: This product contains a chemical known to the State of California to cause cancer and/or birth defects or other reproductive harm. Please click here for more information.
