SP158.8 - Freeze Valve

Technical Downloads

Spec Sheet

Installation Drawing

Operational / Maintenance Manual

AutoCAD Installation Drawing

Limited Warranty

Specifications

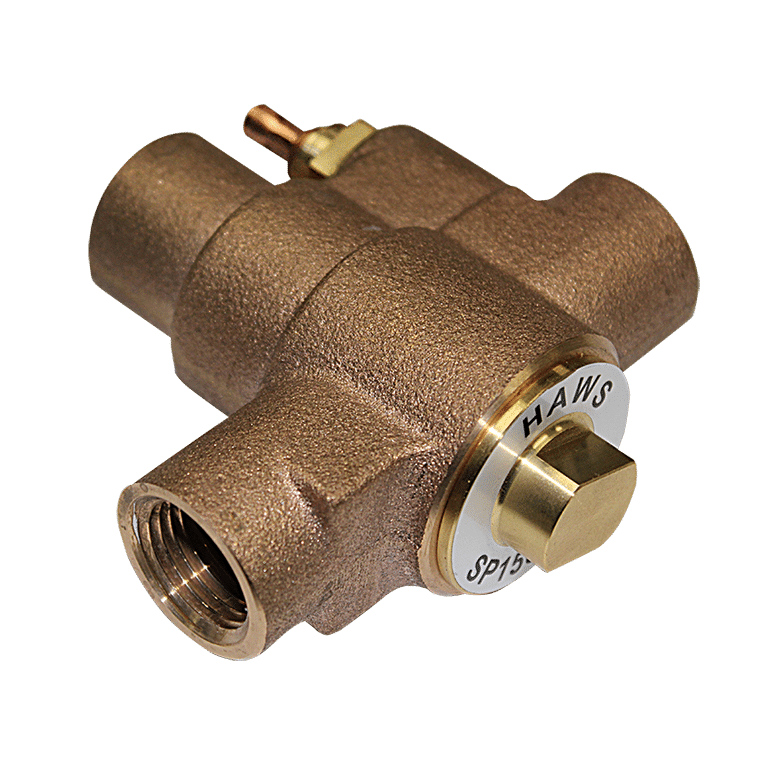

Model SP158.8, retro-fit freeze valve kit contains the necessary components to replace the stainless steel freeze valve on Haws model 8300.158. This fully engineered freeze protection valve is constructed of a one piece brass body, and supplied with a removable cartridge for easy cleaning and maintenance. Automatic thermal actuator bleed valve opens when internal water temperature falls below 35° F (1.7° C) and closes completely when the water climbs back to 42° F (5.6° C) or above. 1/2" NPTF inlet and outlet.

Pricing Information

$880 USD
Contact Haws Specials

Freeze Valve

Model SP158.8, retro-fit freeze valve kit contains the necessary components to replace the stainless steel freeze valve on Haws model 8300.158. This fully engineered freeze protection valve is constructed of a one piece brass body, and supplied with a removable cartridge for easy cleaning and maintenance. Automatic thermal actuator bleed valve opens when internal water temperature falls below 35° F (1.7° C) and closes completely when the water climbs back to 42° F (5.6° C) or above. 1/2" NPTF inlet and outlet.
