Emergency Alarm System

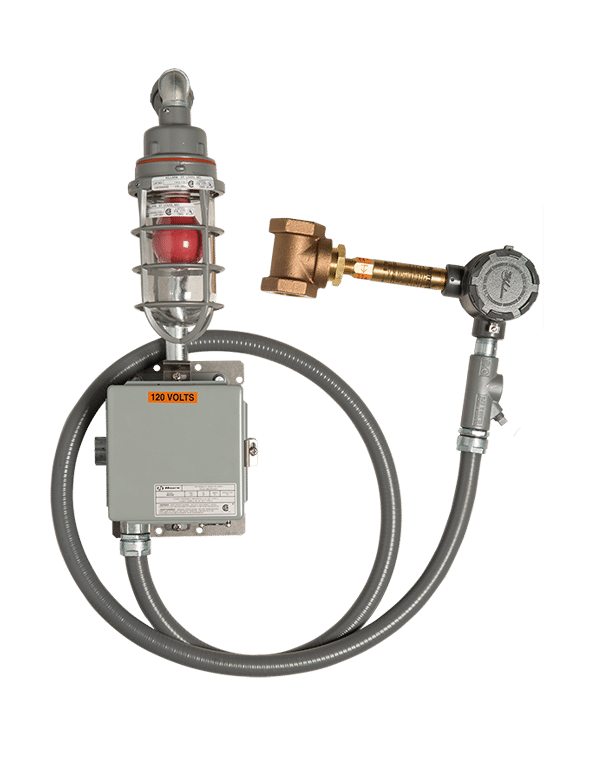

Model 9001, 1-1/4" 120 VAC emergency alarm and light system. Buzzer and flashing light are activated by an 1-1/4" double pole, double throw flow switch.
Contact Us for a Custom Solution

Spec Sheet Download

Technical Downloads

Spec Sheet

Installation Drawing

Parts Breakdown Drawing

Operational / Maintenance Manual

AutoCAD Installation Drawing

Limited Warranty

Specifications

Model 9001 emergency alarm and light system will be operated by a double pole, double throw flow switch, which contains multiple sets of contacts for remote activation, and activates an amber flashing light and buzzer at 90 db, audible at 10 feet (304.8 cm) (buzzer can be silenced during testing). Switch will activate at 2.4 gpm (9.1 L). System can be mounted to pipe or wall. Voltage: 120 VAC, 50 or 60 cycles. Supply: 1-1/4" NPT. Model 9001 is CSA electrical certified, TYPE 4. (Equivalent to Nema 4)

Emergency Alarm System

Model 9001 emergency alarm and light system features an amber flashing light and 90 db at 10 feet (304.8 cm), buzzer that is operated by a double pole, double throw flow switch. Unit is activated when the emergency shower or eyewash is in operation. System can be mounted to pipe or wall. Unit is recommended to be installed where a shower or eyewash is installed in a remote or noisy location where user is unable to summon help.

Brightly flashing amber light and 90 db buzzer brings immediate attention to an emergency situation
Switch will activate at 2.4 gpm (9.1 L)
Voltage: 120 VAC, 50 or 60 cycles. Supply: 1-1/4" NPT
This alarm contains a multiple set of contacts for remote activation alarm sites
Model 9001 is CSA electrical certified, TYPE 4. (Nema 4 equivalent)
TYPE 4X is also available. Contact Haws for additional information.
