7603T

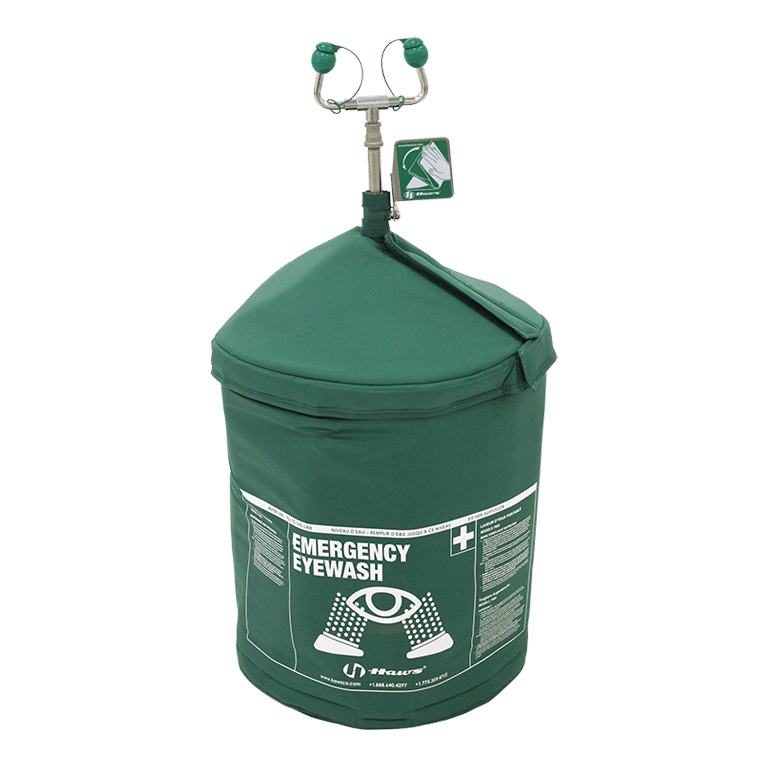

120V Portable Air-Pressurized Tempered Emergency Eyewash

Model 7603T, 15 gallon (56.8 L), air pressure operated, tempered portable eyewash that uses a heated, insulated blanket to provide ANSI compliant tempered potable water in operating temperatures down to -20° F (-30° C).

Spec Sheet Download

Technical Downloads

Spec Sheet

Installation Drawing

Parts Breakdown Drawing

Operational / Maintenance Manual

AutoCAD Installation Drawing

MasterSpec® Files

Limited Warranty

Specifications

Model 7603T is a 15-gallon (56.8 L), tempered, pressurized portable eyewash with a stainless steel tank, and NEMA 3R heated, insulated blanket to provide ANSI compliant tempered potable water in ambient operating temperatures between -20° F (-30° C) and 100° F (38° C). Ideal for remote locations without access to continuous potable water. 120VAC, 60Hz, 1.38A electrical requirement with supplied 8' GFCI power cord. Voltage and Haz Loc options available. QPS-C-US-Certified-Electrical-Safety. Model 9082 additive not included - order separately.

Pricing Information

$5519 USD
Contact Haws Specials

120V Portable Air-Pressurized Tempered Emergency Eyewash

The Haws 7603T is an ideal, cost-efficient solution for a facility's ANSI eyewash requirements in locations without access to a continuous potable water source. The pressurized 15 gallon (56.8 L) portable eyewash uses a NEMA 3R heated, insulated blanket to provide ANSI compliant tempered water in operating temperatures between -20° F (-30° C) and 100° F (38° C) for locations without access to a continuous potable water source.

Features a 15 gallon (56.8 L) stainless steel tank
Upgraded ball valves with stainless steel ball and stem
Protective measures include: air pressure gauge, pressure relief valve, and tire-type air fill valve
Power cord included
Measurements: 39-1/2" (100.3 cm) high, 16" (40.6 cm) diameter
QPS-C-US-Certified-Electrical-Safety for NEMA/Type 3R in ordinary locations, and to ANSI/ISEA Z358.1
