Home / Products / 2000HSSM – Haws RIVIVE™ Hydration Station™ Surface Mount Bottle Filler

2000HSSM

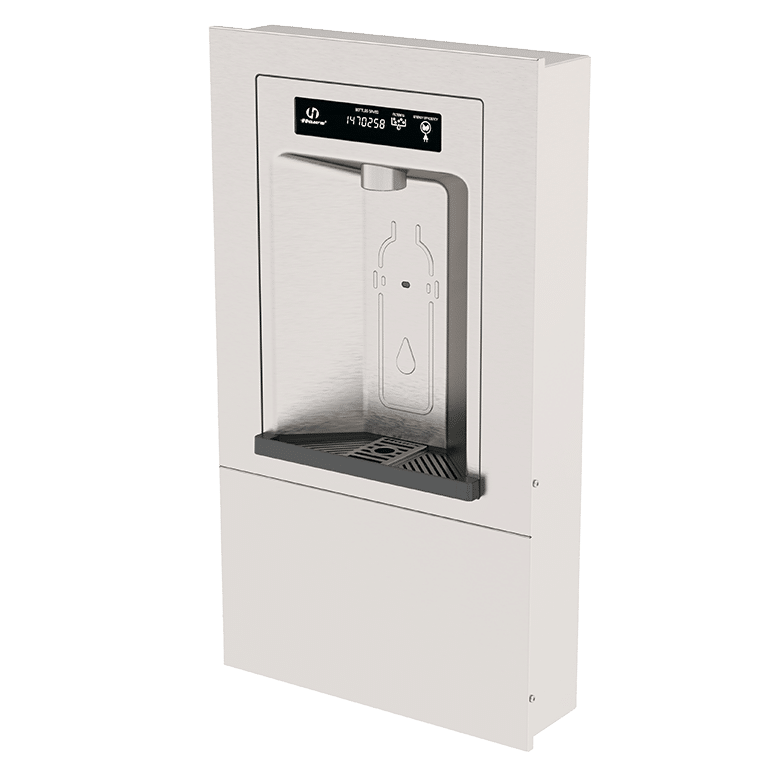

Haws RIVIVE™ Hydration Station™ Surface Mount Bottle Filler

The Haws RIVIVE™ Hydration Station™, model 2000HSSM features an architectural designed surface-mounted ADA bottle filler with field configurable filtration, a sensor-operated 1.2 gpm fill rate, and auto-purge functionality. This model replaces the soon to be discontinued 2000sms Hydration Station™.

Spec Sheet Download

Spec Sheet

Operational / Maintenance Manual

Installation Drawing

Installation Template

Parts Breakdown Drawing

AutoCAD Installation Drawing

3D Revit (RFA)

Limited Warranty

MasterFormat

Specifications

Model 2000HSSM RIVIVE™ Hydration Station™ motion-activated bottle filling station with architectural roots is surface-mount wheel chair accessible, constructed of heavy duty, Type 304 Stainless Steel with a satin finish. The unit features an electric sensor for touch-free hygienic operation and a 20-second timeout preventing unwanted use, auto-purge after 24 of non-use, laminar flow to prevent splashing, a 1.2 gpm (4.2 L) flow rate for quick fill-up, and a 3000-gallon (11356 L) carbon block filter. Display menu shows sensor range adjustment, factory reset, software/firmware version readout and error readout. The mounting box is of heavy gauge, galvanized steel, which provides enough access room for water stop, electrical junction box, filter and drain connections. Field-configurable as either filtered or non-filtered.

Pricing Information

$2217 USD
Contact Haws Specials

Haws RIVIVE™ Hydration Station™ Surface Mount Bottle Filler

Model	2000HSSM
Material	16-gauge Type 304 Stainless Steel - Satin Finish
Features	Vandal Resistant Front access maintenance and filter change Programable Auto purge feature automatically cycles once every 24 hours
Dimensions	Length: 1" Width: 17-1/4" Height: 30-3/4"
ADA	Yes
Hygienic Features	24-Hour Purge of water line Sensor Operated Bottle Filler 100% lead-free waterways
Field Configurable Filtering	Choose between filtered or non-filtered water with the included interchangeable 3000-gallon filter and 5y rated strainer.
Included Components	Bottle Filler Mounting Can Interchangeable filter and strainer
Fill Rate	1.2
Power	<1 Amp
Code Compliance	ADA NSF/ANSI/CAN 61- Section 9 CSA Certified NSF/ANSI/CAN 372 California Health and Safety Code 116875 (AB 1953-2006), and 116876 (AB 100) NSF/ANSI/CAN 61: Q ≤ 1
Mounting	Wall Mounted (On-wall mounting can)

The model 2000HSSM surface mounted, architectural bottle filling station is a vandal-resistant, motion-activated water dispenser with architectural appeal that allows users to enjoy the benefits of fresh, filtered water with none of the drawbacks of bottled water. Surface mounted design allows the bottle filling station to be placed securely in multiple locations without taking up excess space, allowing for use in high-traffic applications such as schools, office buildings, fitness centers, and manufacturing facilities.

Tested and certified by CSA against NSF/ANSI/CAN 61, Section 9, NSF/ANSI/CAN 372, CSA Standard B483.1 and California Health and Safety Code 116875 (AB 1953-2006)
All stainless-steel front panels and bottle filler alcove
Sensor features a 20-second timeout function which prevents unwanted use
Auto purge feature automatically cycles once every 24 hours to assure a fresh water supply as well as trap integrity
State-of-the-art integral water filtration system assures fresh, filtered water
3000 gallon (11356 L) capacity, with filter replacement indicator light to notify when replacement is necessary, model 6428

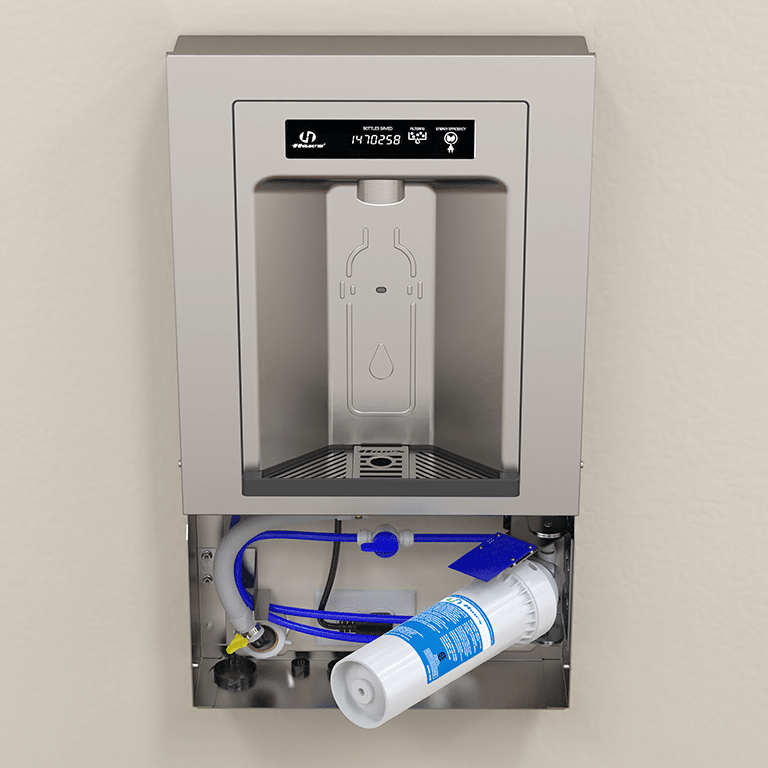

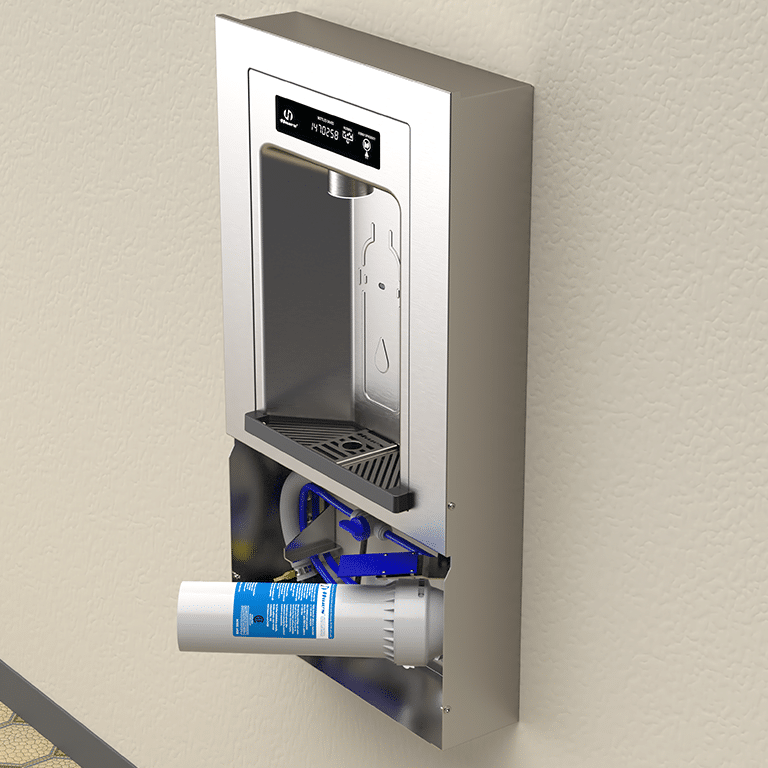

Front access for changing smart filter which incorporates easy set, change and monitor reset programming
Laminar flow prevents splashing, keeping the drinking area contained and clean
Large LED lit 12" bottle opening with quick 1.1 gpm fill rate, and bottle counter showing number of bottles saved
Field-configurable as either filtered or non-filtered
Intended for indoor use only

Haws manufactures drinking fountains and electric water coolers to be lead-free by all known definitions including NSF/ANSI/CAN 61, Section 9, NSF/ANSI/CAN 372, and CSA Standard B483.1. Product is compliant to California Health and Safety Code 116875 (AB 1953-2006), California Proposition 65 and the Federal Safe Drinking Water Act.

Prop 65 Warning. For California Residents Warning: This product contains a chemical known to the State of California to cause cancer and/or birth defects or other reproductive harm. Please click here for more information.
