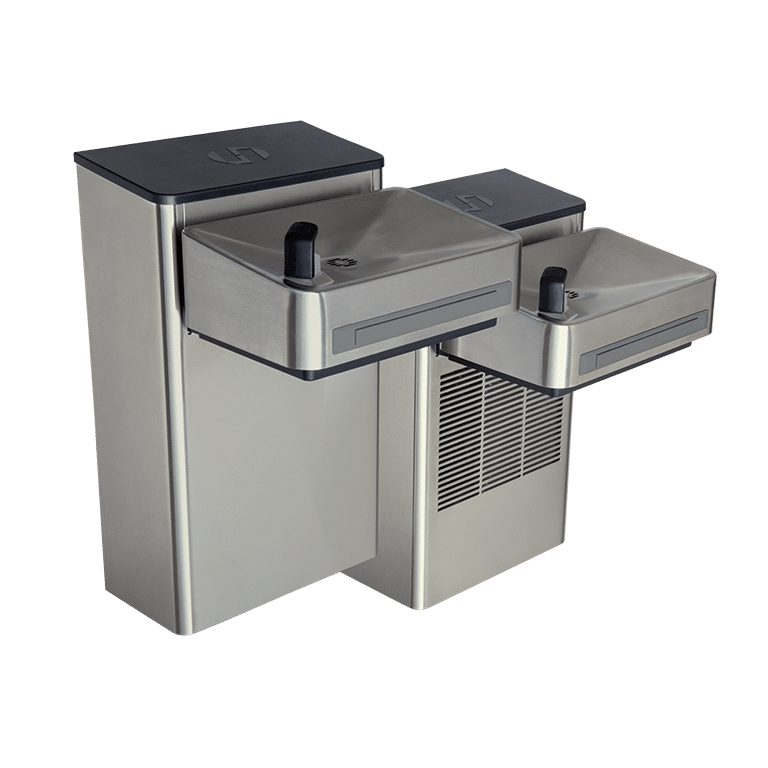

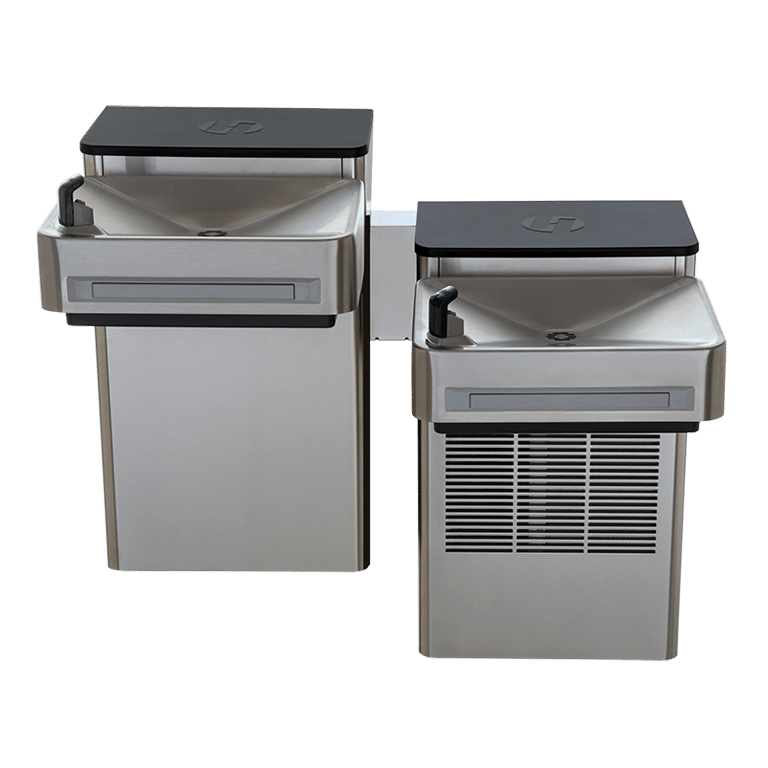

1202SF - Wall Mount Hi-Lo ADA Filtered Water Cooler

Technical Downloads

Spec Sheet

Spec Sheet French

Installation Template

Operational / Maintenance Manual

Operational / Maintenance Manual French

Installation Drawing

Installation Drawing French

Parts Breakdown Drawing

AutoCAD Installation Drawing

MasterSpec® Files

3D Revit (RFA)

Limited Warranty

Limited Warranty French

Brochures

Specifications

Model 1202SF indoor wall mount ADA Hi-Lo stainless steel filtered water cooler shall include an ASHRAE compliant, hermetically sealed R-134a refrigeration system with thermostat. Unit features a unique, modern Hi-Lo (dual fountain) design with 304 satin finish stainless steel outer shell. Energy savings feature powers down refrigeration system after 2 hours of non-use and the lights shut off, and will automatically start again when used. The 3000-gallon (11,356 L) filter with Electronic Lifecycle Control turns water off when capacity is reached. Flow will begin again when new filter is installed. The system includes electronic front push bar controlled solenoid valves, and .45 gpm self-regulating, anti-rotational bubbler heads with flexible antimicrobial mouth guards, bubbler head deactivation feature, and instantaneous tankless water cooler for consistent cool water. 115 Volts, 60Hz, rated watts: 350, full load amps: 5. Dimensions: (L x W x H) 18-3/4 x 34-1/16 x 31-3/4"

Pricing Information

$1973 USD
Contact Haws Specials

Wall Mount Hi-Lo ADA Filtered Water Cooler

The Haws 1202SF wall-mount filtered Hi-Lo water cooler is the newest addition to the most comprehensive hydration offering in the industry. The modern, innovative design is tailored to meld with office spaces, universities and airports, or serve the functional needs of spaces like a school gymnasium. The Hi-Lo dual station design allows for standard left-side high/right-side low ADA fountain access. The electronic push bar activated solenoid valve provides easy activation, and the pressure-regulating bubbler with a flexible antimicrobial rubber mouth guard requires no adjusting. Fresh, always filtered water with the Electronic Lifecycle Control feature shuts water flow off when filter reaches its gallons capacity. Flow will begin again when filter is replaced.

Flexible bubbler mouth guard to protect against injury
Self-regulating flow - no need to adjust to varying incoming water pressures
Anti-rotational screwed-in-place bubbler head
Instantaneous tankless water cooler for consistent cool water during use of unit
Smart energy savings feature powers down refrigeration system after 2 hours of non-use and the lights are shut off, and will automatically start again when used or light is restored to normal
High traffic area ready with a 3000-gallon (11,356 L) capacity filter
Retrofit installation compatibility over many existing water coolers
100% lead free waterways
Unique basin design reduces water splashing and simplifies cleaning
Durable, easy to clean 304 stainless steel skin
Galvanized steel frame
Rated for indoor use
Designed and assembled in the USA

CSA certified to comply with NSF/ANSI 42, NSF/ANSI 53, NSF/ANSI/CAN 61: Q ≤ 1, NSF/ANSI/CAN 372, ASME A112.18.1/CSA B125.1, ASME112.19.3/CSA B45.4, UL 399 and CSA C22.2 No. 120. ADA compliant to ICC A117.1, CSA B651, DOJ s 2010 ADA Standards for Accessible Design when properly installed. ASHRAE 18 compliant chilling capacity. FCC ID: 2AUAN-1200SF and IC: 25959-1200SF. Electric water coolers are not recommended or designed for outdoor applications or enclosed pool areas (chlorine), and failure to heed these conditions may void warranty.
