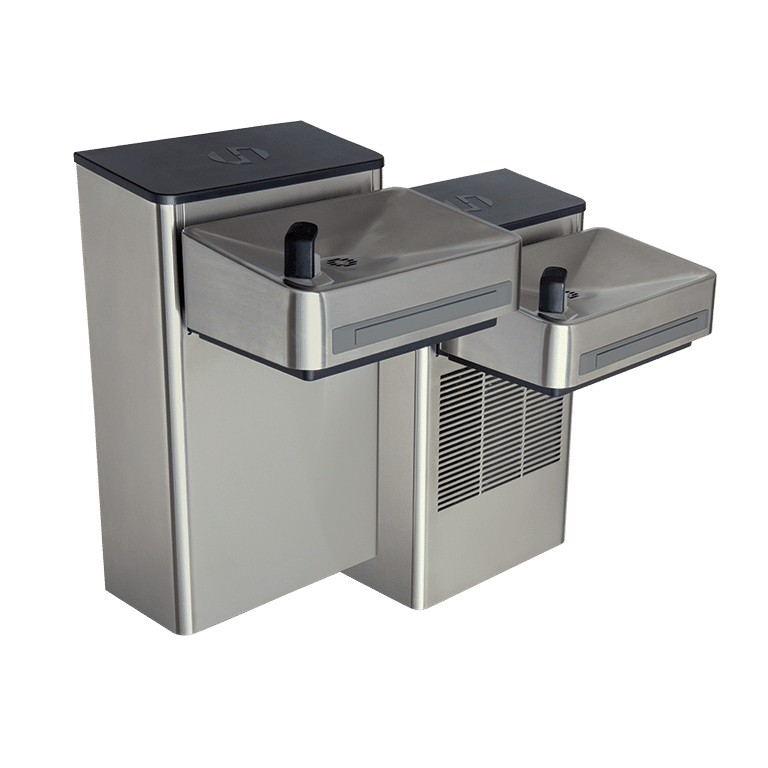

Wall Mount Hi-Lo Indoor ADA Water Cooler

Model 1202S, stainless steel Hi-Lo wall mount indoor ADA water cooler with an electronic valve and push bar assembly. FOR INDOOR USE ONLY

Spec Sheet Download

Technical Downloads

Spec Sheet

Installation Template

Operational / Maintenance Manual

Operational / Maintenance Manual French

Installation Drawing

Installation Drawing French

Parts Breakdown Drawing

AutoCAD Installation Drawing

MasterSpec® Files

3D Revit (RFA)

Limited Warranty

Specifications

Model 1202S indoor wall-mount ADA Hi-Lo stainless steel water cooler shall include an ASHRAE compliant, hermetically sealed refrigeration system with thermostat. Unit features a unique, modern Hi-Lo (dual fountain) design with 304 satin finish stainless steel outer shell. The system includes electronic front push bar controlled solenoid valves, and .45 gpm self-regulating, anti-rotational bubbler heads with flexible antimicrobial mouth guards, and enhanced tankless evaporator coil using thermal mass cooling technology. 115 Volts, 60Hz, rated watts: 350, full load amps: 5. Dimensions: (L x W x H) 18-3/4 x 34-1/16 x 31-3/4"

Pricing Information

$1920 USD
Contact Haws Specials

Wall Mount Hi-Lo Indoor ADA Water Cooler

The Haws 1202S wall mount Hi-Lo water cooler is the newest addition to the most comprehensive hydration offering in the industry. The modern, innovative design is tailored to meld with office spaces, universities and airports, or serve the functional needs of spaces like a school gymnasium. The Hi-Lo dual station design allows for standard left-side high/right-side low ADA fountain access. The electronic push bar activated solenoid valves provide easy activation, and pressure-regulating bubblers with flexible antimicrobial rubber mouth guards require no adjusting.

Flexible bubbler mouth guard to protect against injury
Self-regulating flow - no need to adjust to varying incoming water pressures
Anti-rotational screwed-in-place bubbler head
Energy-Efficient Refrigeration Evaporator: Enhanced tankless evaporator coil using thermal mass cooling technology, with 100 percent water content flushed with every use
Durable, easy to clean 304 stainless steel skin
Retrofit installation compatibility over many existing water coolers
100% lead free waterways
Unique basin design reduces water splashing and simplifies cleaning
Galvanized steel frame
Rated for indoor use
Designed and assembled in the USA

CSA certified to comply with NSF/ANSI/CAN 61: Q ≤ 1, NSF/ANSI/CAN 372, ASME A112.18.1/CSA B125.1, UL 399 and CSA C22.2 No. 120. ADA compliant to ICC A117.1, CSA B651, DOJ’s 2010 ADA Standards for Accessible Design when properly installed. ASHRAE 18 compliant chilling capacity of 8.0 gallon per hour of 50 degree drinking water, based on 80 degree inlet water and 90 degree ambient temperature. Electric water coolers are not recommended or designed for outdoor applications or enclosed pool areas (chlorine), and failure to heed these conditions may void warranty.
