H1117.8HO2

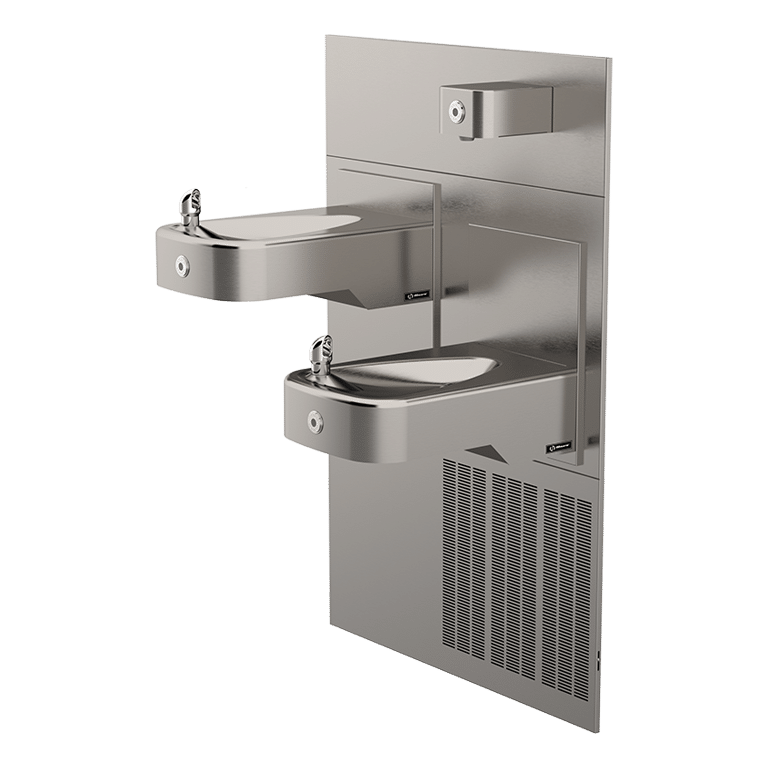

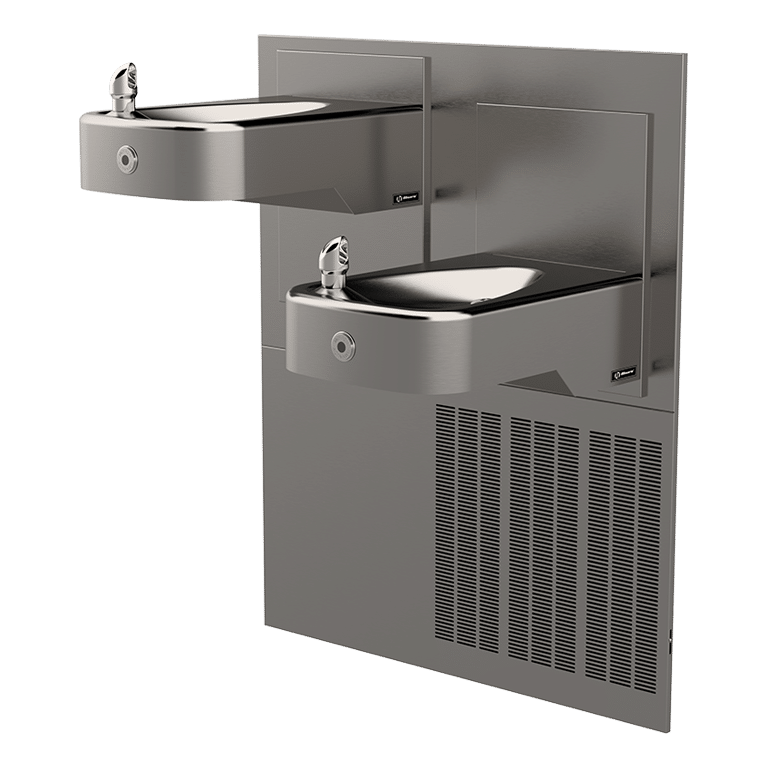

Chilled Vandal-Resistant ADA Motion-Activated Adjustable Fountain

Model H1117.8HO2, electric, ADA vandal-resistant wall mounted, touchless 14-gauge adjustable stainless steel drinking fountain with 100% lead free waterways. FOR INDOOR USE ONLY

Spec Sheet Download

Required Parts Sold Separately

Spec Sheet

Operational / Maintenance Manual

Installation Drawing

Parts Breakdown Drawing

AutoCAD Installation Drawing

3D Revit (RFA)

MasterSpec® Files

Limited Warranty

Specifications

Model H1117.8HO2 vandal-resistant low profile electric ADA wall mounted touchless adjustable drinking fountain shall include dual 14-gauge Type 304 Stainless Steel satin finish basins with integral 1/4" (.6 cm) thick stainless-steel back plates, sensor operated stainless steel solenoid valves with 30-second obstruction time-out controlled by a transformer, 100% lead free waterways, polished chrome-plated brass vandal-resistant bubbler heads with integral laminar anti-squirt flow, polished chrome-plated brass vandal-resistant waste strainers, vandal-resistant bottom plates, stainless steel satin finish back panel and louvered intrusion-proof grill, adjustable mounting allowing either basin high or low, and 1-1/4" NPT concealed all cast-brass traps. The patented design allows the unit to be mounted to meet ADA or Child ADA specifications. The R-134a refrigeration system is hermetically sealed and delivers a minimum of 8 gph (30.3 L) of water at 50° F (10° C) cooled from 80° F (26.7° C) inlet water at 90° F (32.2° C) ambient. 115 Volts, 60Hz, rated watts: 370, full load amps: 5 ..... REQUIRES MODEL HCR8 and MTGFR.17 PRICED SEPARATELY.

Pricing Information

$4041 USD
Contact Haws Specials

Chilled Vandal-Resistant ADA Motion-Activated Adjustable Fountain

Model H1117.8HO2 adjustable ADA vandal-resistant electric drinking fountain provides 8 gph (30.3 L) chilled water performance in an engineered stainless-steel skin. This wall mounted fountain incorporates sensor operated stainless steel solenoid valves controlled by a transformer for hands-free operation. A pressure regulator is used to adjust the bubbler flow according to incoming water pressures.

Touchless operation for safety and peace of mind
Vandal resistant components include the bubblers, drains and bottom plates
30-second obstruction time-out to reduce tampering of sensor
100% lead free waterways
Beautiful satin finish resists stains and corrosion
14 gauge Type 304 Stainless Steel design provides a well-constructed sturdy fountain
Grille slots are designed to eliminate sharp edges and are backed with a foam filter to protect the fan motor and high displacement compressor from debris
Polished chrome-plated brass bubbler heads with integral laminar anti-squirt flow eliminate water splash
Soft rounded corners prevent from mishaps and other accidents that may occur once the fountain is installed
One-piece stamped bowls with low-profile basin make for an aesthetically pleasing and durable design

Model meets all current Federal Regulations for the disabled including those in the Americans with Disabilities Act. Haws manufactures drinking fountains, faucets and electric water coolers to be lead-free by all known definitions including NSF/ANSI/CAN 61- Section 9, NSF/ANSI/CAN 372, California Proposition 65, and the Federal Safe Drinking Water Act. Product is compliant to California Health and Safety Code 116875 (AB 1953-2006), and 116876 (AB 100) "NSF/ANSI/CAN 61: Q ≤ 1". Note: Electric water coolers are not recommended or designed for outdoor applications or enclosed pool areas (chlorine). These conditions may void warranty.
