H1117.8HO

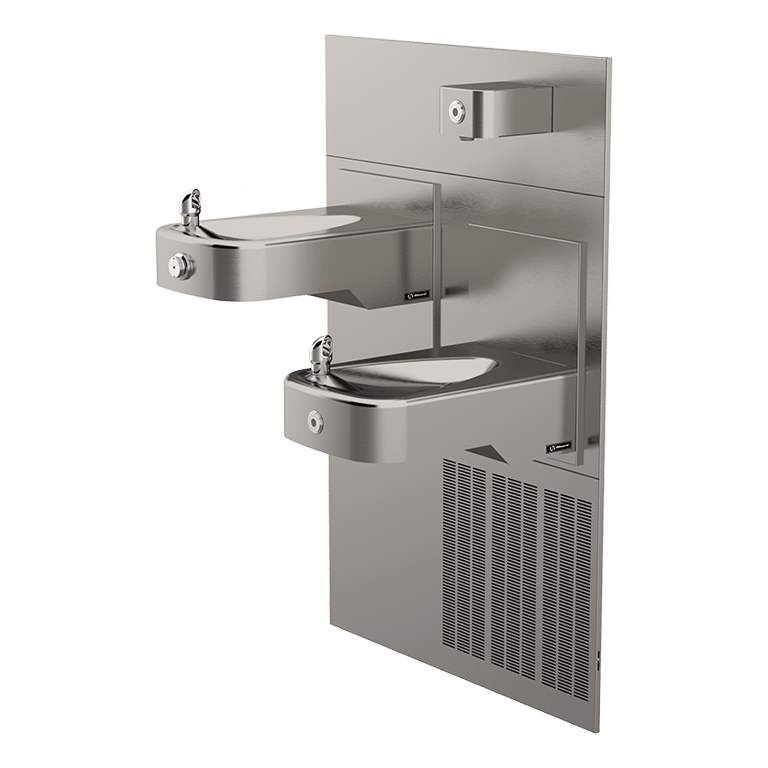

Chilled Vandal-Resistant ADA Motion-Activated/Push Button Adjustable Fountain

Model H1117.8HO, ADA vandal-resistant, wall mounted touchless/push button 14-gauge stainless steel adjustable fountain with back panel, and 100% lead free waterways. FOR INDOOR USE ONLY

Spec Sheet Download
Required Parts Sold Separately
View All Resources

Specifications

Model H1117.8HO low profile vandal-resistant electric ADA wall mounted combination motion-activated/push button adjustable drinking fountain shall include dual 14-gauge Type 304 Stainless Steel satin finish basins with integral 1/4" (.6 cm) thick stainless-steel back plates, sensor operated solenoid valve with 30-second obstruction time-out on one side, and vandal-resistant push-button operated stainless steel valve with front-accessible cartridge and flow adjustment on the other, 100% lead free waterways, polished chrome-plated brass vandal-resistant bubbler heads with integral laminar anti-squirt flow, polished chrome-plated brass vandal-resistant waste strainers, vandal-resistant bottom plates, stainless steel satin finish back panel and louvered intrusion-proof grill, adjustable mounting allowing either basin high or low, and 1-1/4" NPT concealed all cast-brass traps. The patented design allows the unit to be mounted to meet ADA or Child ADA specifications. The R-134a refrigeration system is hermetically sealed and delivers a minimum of 8 gph (30.3 L) of water at 50° F (10° C) cooled from 80° F (26.7° C) inlet water at 90° F (32.2° C) ambient. 115 Volts, 60Hz, rated watts: 370, full load amps: 5 .............................................................................................. REQUIRES MODEL HCR8 and MTGFR.17 PRICED SEPARATELY.
