Home / Products / H1107.8HO-1920HO – Chilled Vandal-Resistant ADA Motion-Activated Fountain and Bottle Filler

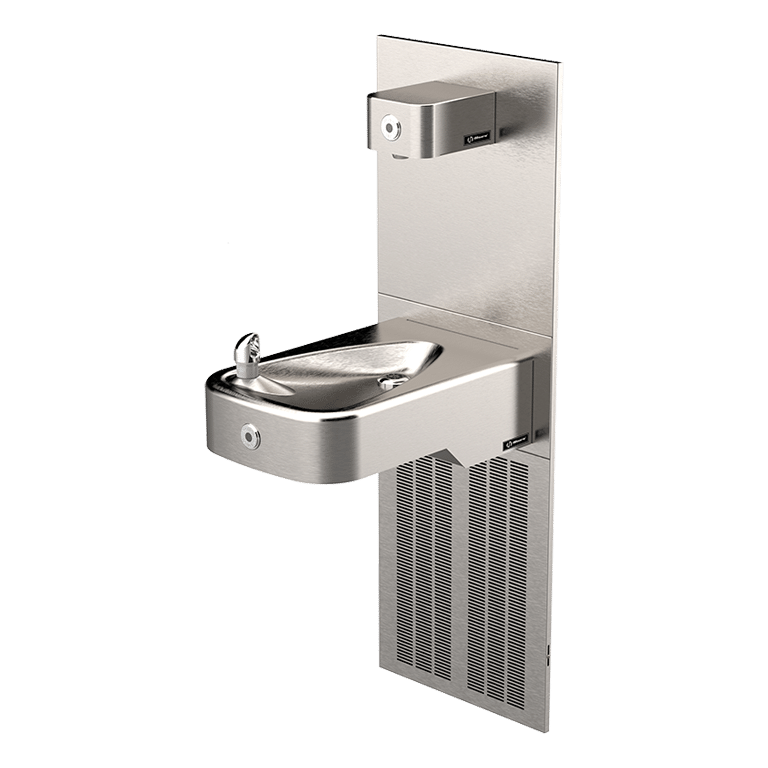

H1107.8HO-1920HO

Chilled Vandal-Resistant ADA Motion-Activated Fountain and Bottle Filler

Model H1107.8HO-1920HO, vandal-resistant, low profile ADA wall mounted, 14-gauge stainless steel, touchless chilled fountain and bottle filler. (For mounting bottle filler, see options below) FOR INDOOR USE ONLY

Required Parts Sold Separately

Fountain with Bottle Filler Spec Sheet

Operational / Maintenance Manual

3D Revit (RFA)

MasterSpec® Files

Limited Warranty

Specifications

Model H1107.8HO-1920HO vandal-resistant low profile ADA wall mounted motion-activated chilled drinking fountain and bottle filler shall include an 14 gauge Type 304 Stainless Steel satin finish basin with 14 gauge Type 304 Stainless Steel bottle filler bracket, sensor operated stainless steel solenoid valves with 30-second obstruction time-out controlled by a transformer, 100% lead-free waterways, 1 gpm (3.78 L) laminar flow bottle filler, polished chrome-plated brass vandal-resistant bubbler head, polished chrome-plated brass vandal-resistant waste strainer, vandal-resistant bottom plate, stainless steel satin finish back panels and louvered intrusion-proof grille, and 1-1/4" NPT trap. The R-134a refrigeration system is hermetically sealed and delivers a minimum of 8 gph (30.3 L) of water at 50° F (10° C) cooled from 80° F (26.7° C) inlet water at 90° F (32.2° C) ambient. 115 Volts, 60Hz, rated watts: 370, full load amps: 5

Chilled Vandal-Resistant ADA Motion-Activated Fountain and Bottle Filler

The Haws H1107.8HO-1920HO vandal-resistant low profile ADA electric drinking fountain and bottle filler provides 8 gph (30.3 L) chilled water performance in an engineered stainless-steel skin. This wall mounted fountain incorporates sensor operated stainless steel solenoid valves controlled by a transformer for hands-free operation. A pressure regulator is used to adjust the bubbler flow according to incoming water pressures.

Touchless operation for safety and peace of mind
Vandal resistant components include the bubbler, drain and bottom plates
30-second obstruction time-out to reduce tampering of sensor
100% lead-free waterways
1 gpm (3.78 L) bottle filler laminar flow
14 gauge Type 304 Stainless Steel design provides a well constructed sturdy fountain
Grille slots are designed to eliminate sharp edges and are backed with a foam filter to protect the fan motor and high displacement compressor from debris
Beautiful satin finish resists stains and corrosion
Polished chrome-plated brass bubbler head with integral laminar anti-squirt flow eliminate water splash
One-piece stamped bowl makes for an aesthetically pleasing and durable design

Model meets all current Federal Regulations for the disabled including those in the Americans with Disabilities Act. Haws manufactures drinking fountains, faucets and electric water coolers to be lead-free by all known definitions including NSF/ANSI/CAN 61- Section 9, NSF/ANSI/CAN 372, California Proposition 65, and the Federal Safe Drinking Water Act. Product is compliant to California Health and Safety Code 116875 (AB 1953-2006), and NSF/ANSI/CAN 61: Q ≤ 1. Note: Electric water coolers are not recommended or designed for outdoor applications or enclosed pool areas (chlorine). These conditions may void warranty.

Prop 65 Warning. For California Residents Warning: This product contains a chemical known to the State of California to cause cancer and/or birth defects or other reproductive harm. Please click here for more information.
