Home / Products / H1011.8HO – Chilled Vandal-Resistant ADA Motion-Activated/Push Button Fountain

H1011.8HO

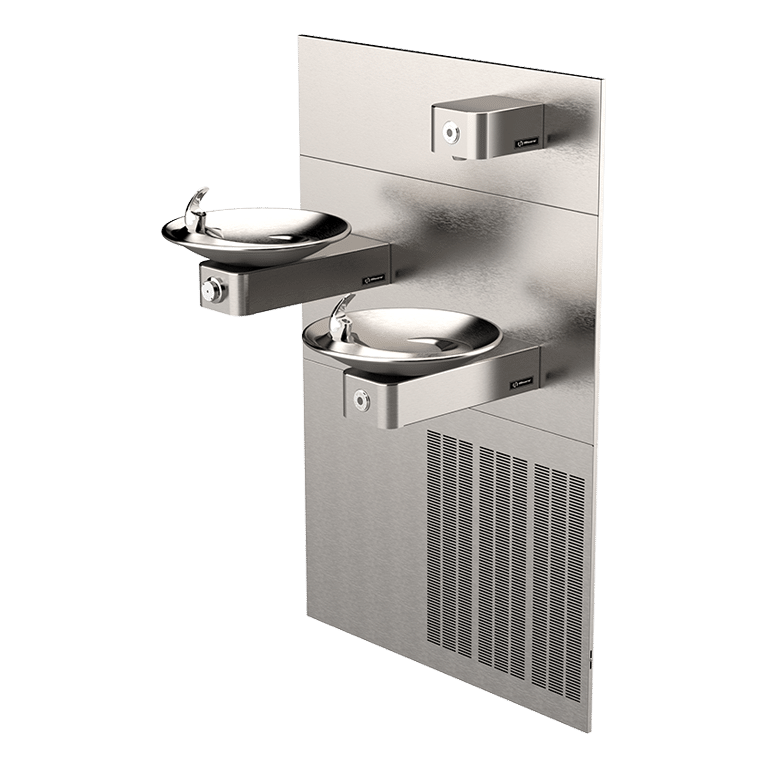

Chilled Vandal-Resistant ADA Motion-Activated/Push Button Fountain

Model H1011.8HO, ADA vandal-resistant, wall mounted, combination touchless/push button stainless steel electric drinking fountain. (For mounting bottle filler, see options below) FOR INDOOR USE ONLY
Contact Us for a Custom Solution

Spec Sheet Download

Required Parts Sold Separately

Spec Sheet

Fountain with Bottle Filler Spec Sheet

Operational / Maintenance Manual

Installation Drawing

Parts Breakdown Drawing

AutoCAD Installation Drawing

MasterSpec® Files

Limited Warranty

Specifications

Model H1011.8HO electric ADA vandal-resistant wall mounted combination motion-activated/push button drinking fountain shall include dual 18 gauge Type 304 Stainless Steel satin finish basins with integral swirl design, 14 gauge Type 304 Stainless Steel wall brackets, 100% lead-free waterways, sensor operated solenoid valve with 30-second obstruction time-out on one side, and vandal-resistant push-button operated stainless steel valve with front-accessible cartridge and flow adjustment on the other, polished chrome-plated brass vandal-resistant bubbler heads with integral laminar anti-squirt flow, chrome-plated brass vandal-resistant waste strainers, vandal-resistant bottom plates, stainless steel satin finish back panel and louvered intrusion-proof grill, high and low fountain mounting levels, and 1-1/4" O.D. (3.2 cm) waste pipes. The R-134a refrigeration system is hermetically sealed and delivers a minimum of 8 gph (30.3 L) of water at 50° F (10° C) cooled from 80° F (26.7° C) inlet water at 90° F (32.2° C) ambient. 115 Volts, 60Hz, rated watts: 370, full load amps: 5...........................................................................................REQUIRES MODEL HCR8 AND MTGFR.LG PRICED SEPARATELY.

Chilled Vandal-Resistant ADA Motion-Activated/Push Button Fountain

Model H1011.8HO ADA vandal-resistant electric drinking fountain provides 8 gph (30.3 L) chilled water performance in an engineered stainless-steel skin. This wall mounted swirl bowl designed fountain incorporates a sensor operated stainless steel solenoid valve controlled by a transformer for hands-free operation on one side, and offers the ‘only’ all stainless-steel valve body that is machined out of solid bar stock on the other. It is fully serviceable through the front of the push button assembly offering access to the water control cartridge and integral water supply strainer and has front access to the water stream height adjustment for easy maintenance without having to remove the valve.

Touchless operation on one side for safety and peace of mind
Vandal resistant components include the bubblers, bowls, button, drains and bottom plates
30-second obstruction time-out to reduce tampering of sensor
18 gauge Type 304 Stainless Steel bowl assemblies mounted on 14 gauge Type 304 Stainless Steel wall brackets
100% lead-free waterways
Grille slots are designed to eliminate sharp edges and are backed with a foam filter to protect the fan motor and high displacement compressor from debris
Polished chrome-plated brass vandal-resistant bubbler heads with integral laminar anti-squirt flow eliminate water splash
Easy maintenance with front access to push button valve adjustment and cartridge replacement
Beautiful satin finish resists stains and corrosion

Model meets all current Federal Regulations for the disabled including those in the Americans with Disabilities Act. Haws manufactures drinking fountains, faucets and electric water coolers to be lead-free by all known definitions including NSF/ANSI/CAN 61- Section 9, NSF/ANSI/CAN 372, California Proposition 65, and the Federal Safe Drinking Water Act. Product is compliant to California Health and Safety Code 116875 (AB 1953-2006), and NSF/ANSI/CAN 61: Q ≤ 1. Note: Electric water coolers are not recommended or designed for outdoor applications or enclosed pool areas (chlorine). These conditions may void warranty.

Prop 65 Warning. For California Residents Warning: This product contains a chemical known to the State of California to cause cancer and/or birth defects or other reproductive harm. Please click here for more information.
