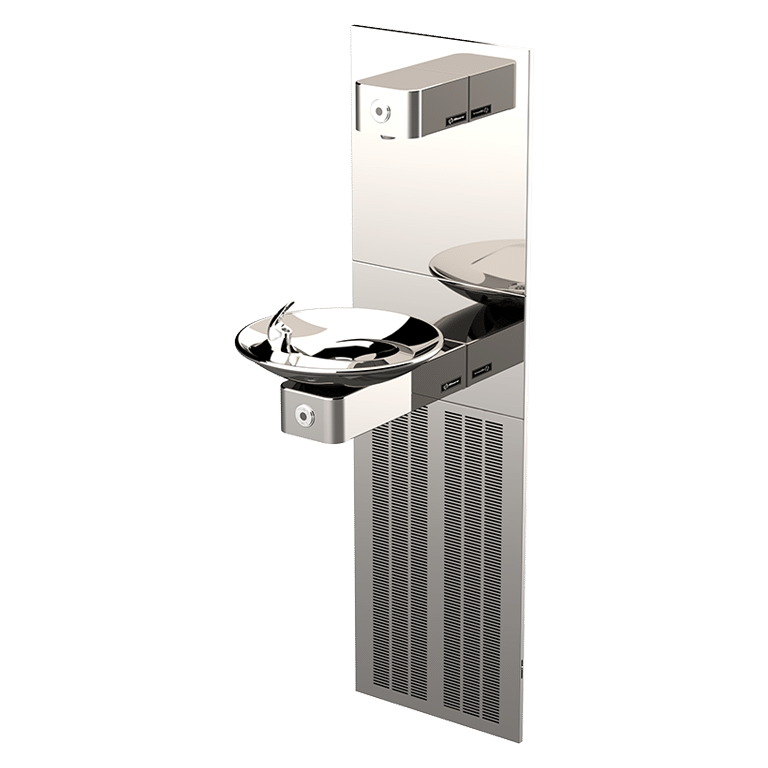

Model H1001.8HPSHO-1920HPSHO ADA vandal-resistant wall mounted motion-activated drinking fountain and bottle filler shall include an 18 gauge Type 304 high-polished stainless steel basin with integral swirl design, 14 gauge Type 304 high-polished stainless steel wall bracket and bottle filler bracket, 100% lead-free waterways, sensor operated stainless steel solenoid valves with 30-second obstruction time-out controlled by a transformer, polished chrome-plated brass vandal-resistant bubbler head with integral laminar anti-squirt flow, 1 gpm (3.78 L) laminar flow bottle filler, chrome plated brass vandal-resistant waste strainer, polished stainless steel back panel and louvered intrusion-proof grill, vandal-resistant bottom plates, and 1-1/4" (3.2 cm) O.D. waste pipe. (P-trap and stop require rear access). The R-134a refrigeration system is hermetically sealed and delivers a minimum of 8 gph (30.3 L) of water at 50° F (10° C) cooled from 80° F (26.7° C) inlet water at 90° F (32.2° C) ambient. 115 Volts, 60Hz, rated watts: 370, full load amps: 5. Haws electric water coolers comply with ARI Standard 1010 and ANSI A117.1, and are listed by Underwriter Laboratories to U.S. and Canadian standards.
