Home / Products / H1001.8HPS-1920HPS – ADA Vandal-Resistant Chilled Drinking Fountain and Bottle Filler

H1001.8HPS-1920HPS

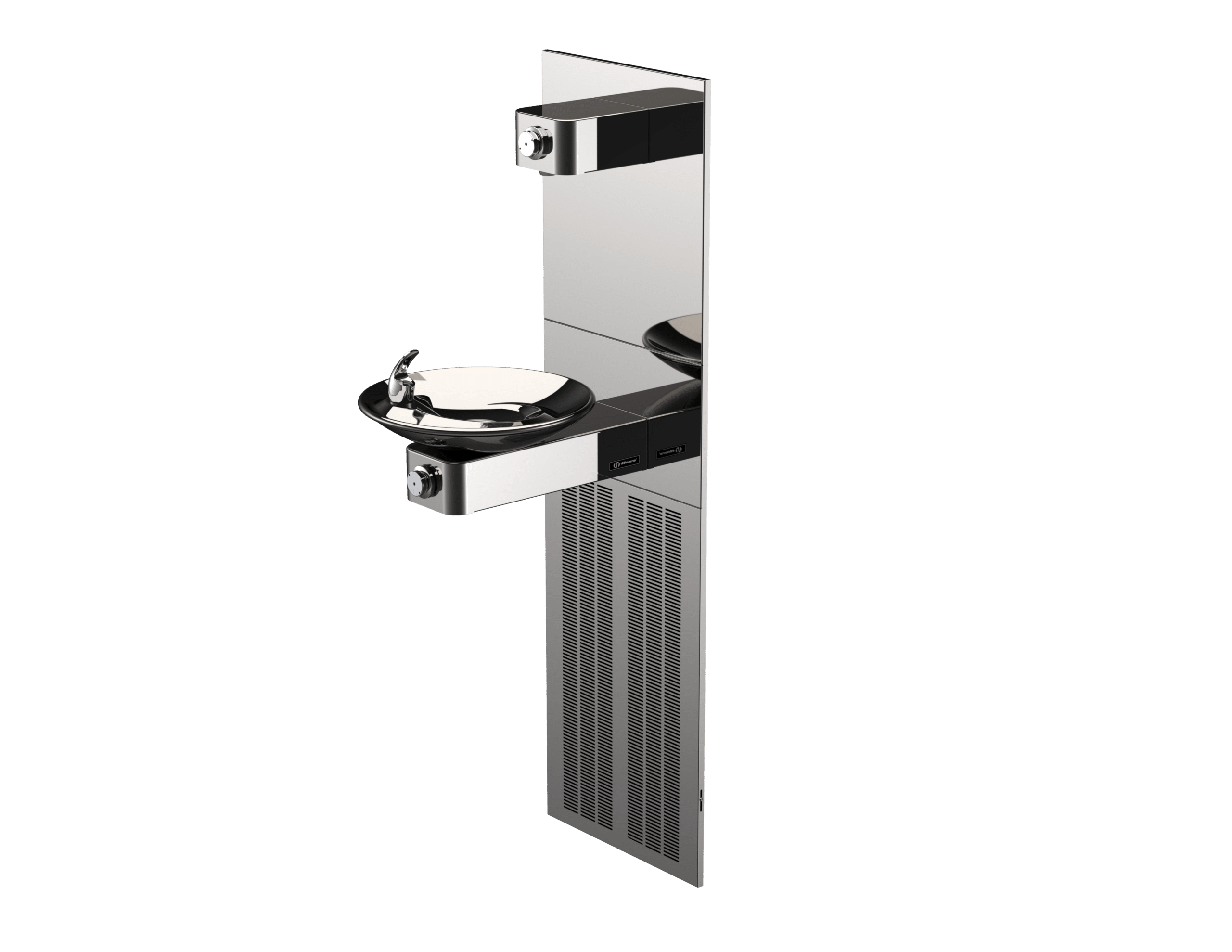

ADA Vandal-Resistant Chilled Drinking Fountain and Bottle Filler

Model H1001.8HPS-1920HPS, ADA high-polished stainless steel electric water cooler and bottle filler with 100% lead-free waterways. The bottle filler requires a mounting plate; either the 6700 in-wall or the 6700R on-wall support plate. (See options below)
Contact Us for a Custom Solution

Required Parts Sold Separately

Fountain with Bottle Filler Spec Sheet

MasterSpec® Files

Limited Warranty

Specifications

Model H1001.8HPS-1920HPS ADA wall mounted vandal-resistant drinking fountain and bottle filler shall include an 18 gauge Type 304 high-polished stainless steel basin with integral swirl design, 14 gauge Type 304 high-polished stainless steel wall bracket and bottle filler bracket, 100% lead-free waterways, vandal-resistant push-button operated stainless steel valves with front-accessible cartridge and flow adjustment, polished chrome-plated brass vandal-resistant bubbler head with integral laminar anti-squirt flow, 1 gpm (3.78 L) laminar flow bottle filler, chrome plated brass vandal-resistant waste strainer, polished stainless steel back panel and louvered intrusion-proof grill, vandal-resistant bottom plates, and 1-1/4" (3.2 cm) O.D. waste pipe. (P-trap and stop require rear access). The R-134a refrigeration system is hermetically sealed and delivers a minimum of 8 gph (30.3 L) of water at 50° F (10° C) cooled from 80° F (26.7° C) inlet water at 90° F (32.2° C) ambient. 115 Volts, 60Hz, rated watts: 370, full load amps: 5. Haws electric water coolers comply with ARI Standard 1010 and ANSI A117.1, and are listed by Underwriter Laboratories to U.S. and Canadian standards. The botte filler requires a mounting plate; either the Haws model 6700 in-wall or the 6700R on-wall support plate.

Pricing Information

$6539 USD
Contact Haws Specials

ADA Vandal-Resistant Chilled Drinking Fountain and Bottle Filler

Model H1001.8HPS-1920HPS ADA polished stainless steel vandal-resistant electric water cooler and bottle filler provides 8 gph (30.3 L) chilled water performance in an engineered stainless steel skin. This wall-mounted swirl bowl designed fountain and bottle filler offers the only all stainless-steel valve body that is machined out of solid bar stock, is fully serviceable through the front of the push button assembly offering access to the water control cartridge and integral water supply strainer, and has front access to the water stream height adjustment for easy maintenance without having to remove the valve. Outfitted with such protective features as vandal-resistant bubbler head, waste strainer, and bottom plate, this electric water cooler is quick to discourage vandals.

Only stainless steel valve body that is machined out of solid bar stock
18-gauge Type 304 polished stainless steel bowl assembly mounted on a 14-gauge Type 304 polished stainless steel wall bracket
Vandal resistant components include the bubbler, bowl, buttons, drain and bottom plates
100% lead-free waterways
1 gpm (3.78 L) bottle filler laminar flow
Grille slots are designed to eliminate sharp edges and are backed with a foam filter to protect the fan motor and high displacement compressor from debris
Maintenance is made easy with front access to valve adjustment and cartridge replacement
Designed to run at a low energy usage, this water cooler is assured to have a long-lasting life
Laminar flow prevents splashing, keeping the drinking area contained and clean
Beautiful polished finish resists stains and corrosion
The bottle filler requires a mounting plate; either the 6700 in-wall or the 6700R on-wall support plate (See options below)

Model meets all current Federal Regulations for the disabled including those in the Americans with Disabilities Act. Haws manufactures drinking fountains, faucets and electric water coolers to be lead-free by all known definitions including NSF/ANSI/CAN 61- Section 9, NSF/ANSI/CAN 372, California Proposition 65, and the Federal Safe Drinking Water Act. Product is compliant to California Health and Safety Code 116875 (AB 1953-2006), and 116876 (AB 100) "NSF/ANSI/CAN 61: Q ≤ 1". Note: Electric water coolers are not recommended or designed for outdoor applications or enclosed pool areas (chlorine). These conditions may void warranty.

Prop 65 Warning. For California Residents Warning: This product contains a chemical known to the State of California to cause cancer and/or birth defects or other reproductive harm. Please click here for more information.
