H1001.8HO

Chilled Vandal-Resistant ADA Motion-Activated Fountain

Model H1001.8HO, ADA vandal-resistant, wall mounted, touchless satin stainless steel electric drinking fountain with 100% lead-free waterways. FOR INDOOR USE ONLY
Contact Us for a Custom Solution

Spec Sheet Download

Required Parts Sold Separately

Spec Sheet

Operational / Maintenance Manual

MasterSpec® Files

Limited Warranty

Specifications

Model H1001.8HO vandal-resistant electric ADA wall mounted motion-activated drinking fountain shall include an 18 gauge Type 304 Stainless Steel satin finish basin with integral swirl design, 14 gauge Type 304 Stainless Steel wall bracket, 100% lead-free waterways, sensor operated stainless steel solenoid valve with 30-second obstruction time-out controlled by a transformer, polished chrome-plated brass vandal-resistant bubbler head with integral laminar anti-squirt flow, chrome-plated brass vandal-resistant waste strainer, vandal-resistant bottom plate, stainless steel satin finish back panel and louvered intrusion-proof grill, and 1-1/4" O.D. (3.2 cm) waste pipe. The R-134a refrigeration system is hermetically sealed and delivers a minimum of 8 gph (30.3 L) of water at 50° F (10° C) cooled from 80° F (26.7° C) inlet water at 90° F (32.2° C) ambient. 115 Volts, 60Hz, rated watts: 370, full load amps: 5 ........................................................................................... REQUIRES MODEL HCR8 AND MTGFR.SM PRICED SEPARATELY.

Pricing Information

$2050 USD
Contact Haws Specials

Chilled Vandal-Resistant ADA Motion-Activated Fountain

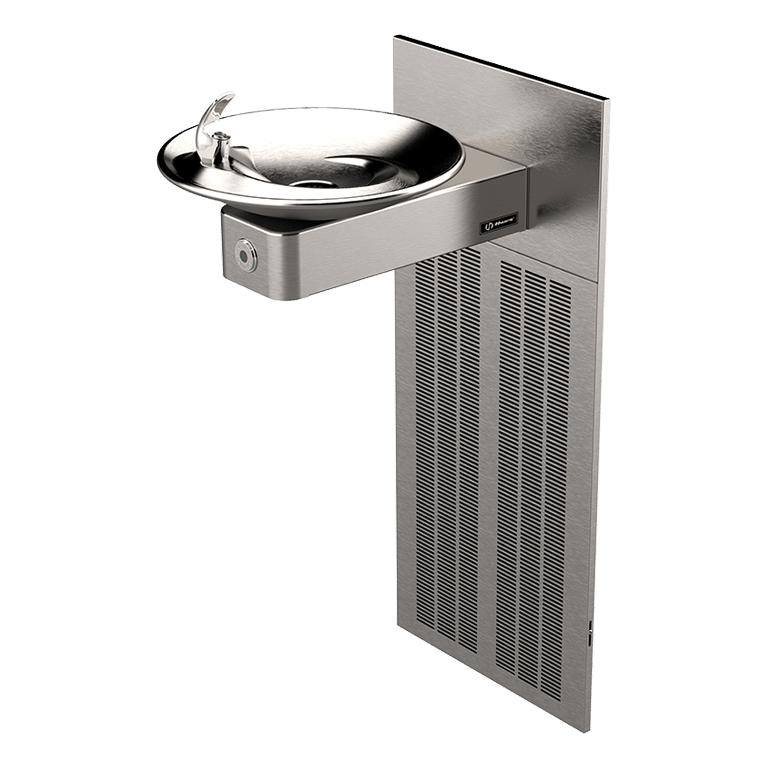

Model H1001.8HO ADA vandal-resistant touchless electric drinking fountain provides 8 gph (30.3 L) chilled water performance in an engineered stainless-steel skin. This wall mounted swirl bowl designed fountain incorporates a sensor operated stainless steel solenoid valve controlled by a transformer for hands-free operation. A pressure regulator is used to adjust the bubbler flow according to incoming water pressures.

Touchless operation for safety and peace of mind
Vandal resistant components include the bubbler, bowl, drain and bottom plates
30-second obstruction time-out to reduce tampering of sensor
18 gauge Type 304 stainless steel bowl assembly mounted on a 14 gauge Type 304 Stainless Steel wall bracket
100% lead-free waterways
Grille slots are designed to eliminate sharp edges and are backed with a foam filter to protect the fan motor and high displacement compressor from debris
Polished chrome-plated brass bubbler head with integral laminar anti-squirt flow eliminate water splash
Beautiful satin finish resists stains and corrosion

Model meets all current Federal Regulations for the disabled including those in the Americans with Disabilities Act. Haws manufactures drinking fountains, faucets and electric water coolers to be lead-free by all known definitions including NSF/ANSI/CAN 61- Section 9, NSF/ANSI/CAN 372, California Proposition 65, and the Federal Safe Drinking Water Act. Product is compliant to California Health and Safety Code 116875 (AB 1953-2006), and NSF/ANSI/CAN 61: Q ≤ 1. Note: Electric water coolers are not recommended or designed for outdoor applications or enclosed pool areas (chlorine). These conditions may void warranty.

Prop 65 Warning. For California Residents Warning: This product contains a chemical known to the State of California to cause cancer and/or birth defects or other reproductive harm. Please click here for more information.
