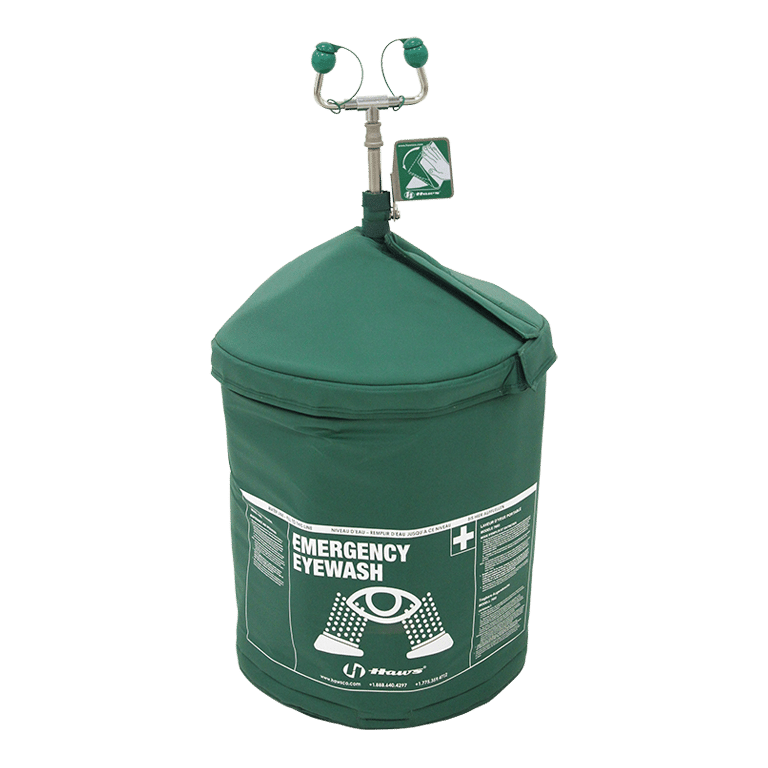

7603TH

120V Portable Air-Pressurized Tempered Emergency Eyewash (HazLoc)

Model 7603TH, 15-gallon (56.8 L), air pressure operated, hazardous location tempered portable eyewash that uses a NEMA 4 heated, insulated blanket to provide ANSI compliant tempered potable water in operating temperatures down to -20° F (-30° C).

Spec Sheet Download

Technical Downloads

Spec Sheet

Installation Drawing

Parts Breakdown Drawing

Operational / Maintenance Manual

AutoCAD Installation Drawing

MasterSpec® Files

Limited Warranty

Specifications

Model 7603TH is a 15-gallon (56.8 L), tempered, pressurized, hazardous location portable eyewash with a stainless steel tank, and NEMA 4 heated, insulated blanket to provide ANSI compliant tempered potable water in ambient operating temperatures between -20° F (-30° C) and 100° F (38° C). Ideal for remote locations without access to continuous potable water. 120VAC, 60Hz, 1.38A electrical requirement. Voltage options available. Power cord not provided - power connection must be made according to code using Class I Division 2 compliant equipment. Model 9082 additive not included - order separately.

Pricing Information

$6107 USD
Contact Haws Specials

120V Portable Air-Pressurized Tempered Emergency Eyewash (HazLoc)

The Haws 7603TH is an ideal, cost-efficient solution for a facility's ANSI eyewash requirements in locations without access to a continuous potable water source. The pressurized 15 gallon (56.8 L) portable hazardous location eyewash uses a NEMA 4 heated, insulated blanket to provide ANSI compliant tempered water in operating temperatures between -20° F (-30° C) and 100° F (38° C) for locations without access to a continuous potable water source.

Features a 15 gallon (56.8 L) stainless steel tank
Upgraded ball valves with stainless steel ball and stem
Protective measures include: air pressure gauge, pressure relief valve, and tire-type air fill valve
Measurements: 39-1/2" (100.3 cm) high, 16" (40.6 cm) diameter
120VAC, 60Hz, 1.38A electrical requirement, with voltage options available
Power cord not provided - power connection must be made according to code using Class I Division 2 compliant equipment
CSA certified for NEMA/Type 4 in Class 1, Division 2, Group B, C, D, T6, and Class 2, Division 2, Group F, G locations; and to ANSI/ISEA Z358.1

Prop 65 Warning. For California Residents Warning: This product contains a chemical known to the State of California to cause cancer and/or birth defects or other reproductive harm. Please click here for more information.
