7501T240H

240V Tempered, Gravity-Fed, Portable Eyewash (Haz Loc)

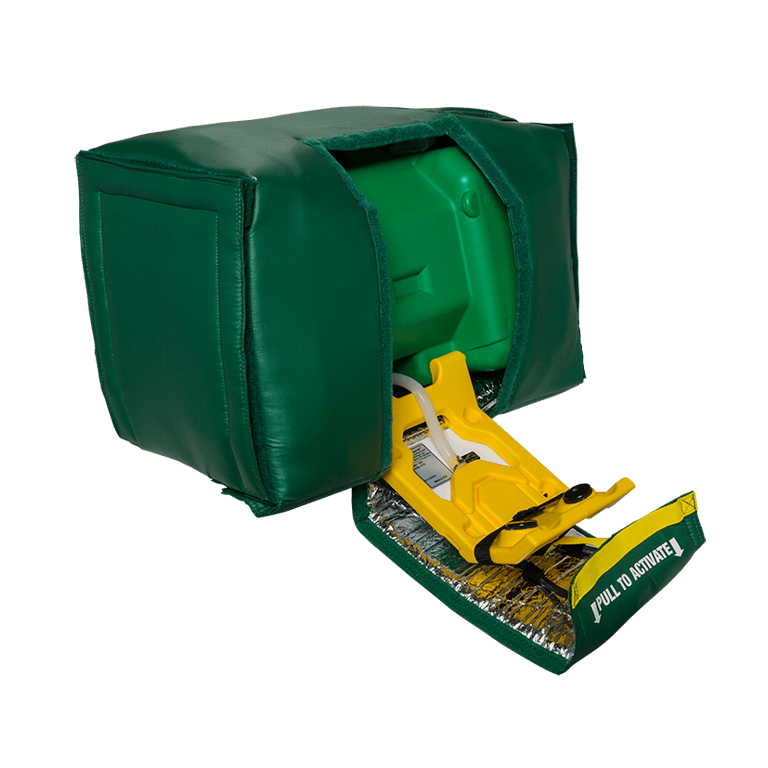

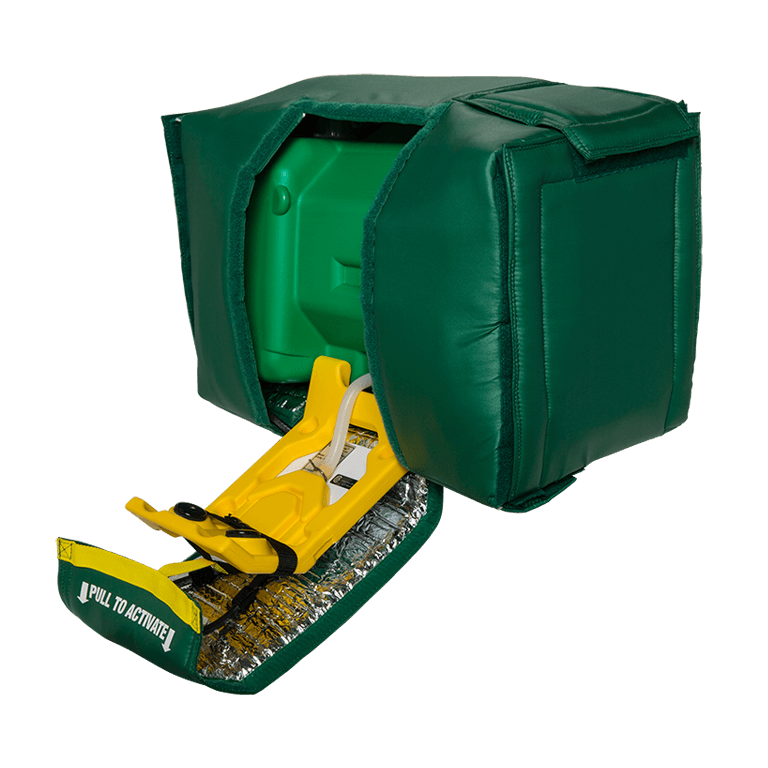

Model 7501T240H, 9-gallon (34 L), gravity-fed, hazardous location tempered portable eyewash that uses a NEMA 4 heated, insulated blanket to provide ANSI compliant tempered potable water in operating temperatures to -20° F (-30° C).

Spec Sheet Download

Technical Downloads

Spec Sheet

Installation Drawing

Parts Breakdown Drawing

Operational / Maintenance Manual

AutoCAD Installation Drawing

MasterSpec® Files

Limited Warranty

Specifications

Model 7501T240H is a 9-gallon (34 L), tempered, compact gravity-fed portable eyewash with a NEMA 4 heated, insulated blanket to provide ANSI compliant tempered potable water in ambient operating temperatures to -20° F (-30° C) and 100° F (38° C). Ideal for remote locations without access to continuous potable water. 240VAC, 50/60Hz, 0.64A electrical requirement. The unit includes a FDA approved high-density green polyethylene tank, ABS plastic eyewash heads with .4 gpm (1.5 L) flow rate over 15 minutes, yellow pull-down activation arm, integral handle with 'lift here' graphics on top, clearly visible fill line, wide-fill threaded cap, sign-mounted operating instructions, and stainless steel wall bracket (unit must be hung). Power cord not provided - power connection must be made according to code using Class I Division 2 compliant equipment. Model 9082 additive not included - order separately.

Pricing Information

$3211 USD
Contact Haws Specials

240V Tempered, Gravity-Fed, Portable Eyewash (Haz Loc)

The newly retooled Haws 7501T240H compact portable tempered eyewash ideal for remote locations. The 9-gallon (34 L), gravity-fed, hazardous location eyewash uses a NEMA 4 heated, insulated blanket to provide ANSI compliant tempered potable water in operating temperatures -20° F (-30° C) for locations without access to a continuous potable water source. 240VAC, 50/60Hz, 0.64A electrical requirement. This unit is a cost-effective solution ideal for locations without access to potable water, including temporary decontamination sites, temporary treatment facilities, and short-term job sites. Product enhancements include:

FDA approved high-density green polyethylene tank that is easily activated by pulling the yellow activation arm down to the open position
A wide-fill opening with a securely threaded cap, and a pronounced "Max Fill" line that permits easy inspection, cleaning and filling
Ease of relocation due to "Lift Here" graphics, easily mounted bracket (included) and light design
Measurements: 16" high, 24" wide, 12" deep (36.8 x 55.9 x 25.7 cm). *Note: Unit must be wall hung

CSA certified for NEMA/Type 4 in Class 1, Division 2, Group B, C, D, T6, and Class 2, Division 2, Group F, G locations; and to ANSI/ISEA Z358.1 Standard for Emergency Eyewash and Shower Equipment, which is clearly called out on the exterior of the unit.
