1501HO-1920WHO

ADA Vandal-Resistant Enameled Iron Motion-Activated/Push Button Fountain w/Bottle Filler

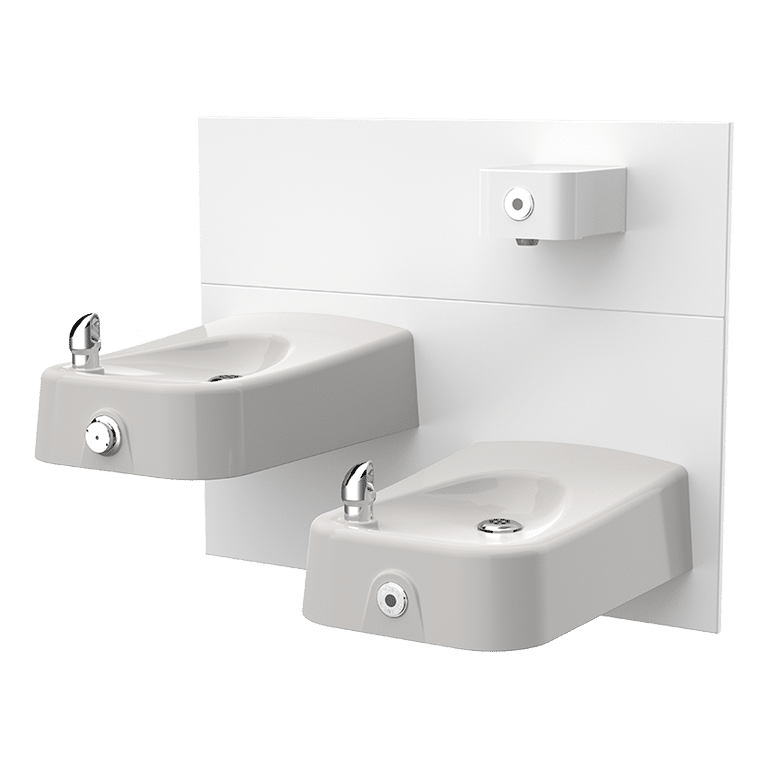

Model 1501HO-1920WHO, ADA, wall-mounted, vandal-resistant white enameled iron touchless/push button fountain and bottle filler with back panel. (For mounting bottle filler, see options below)

Required Parts Sold Separately

Fountain with Bottle Filler Spec Sheet

Operational / Maintenance Manual

MasterSpec® Files

Limited Warranty

Specifications

Model 1501HO-1920WHO ADA vandal-resistant wall-mounted motion-activated/push button drinking fountain and bottle filler shall include dual white enameled-iron basins, sensor operated solenoid valves with 30-second obstruction time-out on the bottle filler and on one side of the fountain, and vandal-resistant push-button operated stainless steel valve with front-accessible cartridge and flow adjustment on the other, 100% lead-free waterways, polished chrome-plated brass vandal-resistant bubbler heads, polished chrome-plated brass vandal-resistant waste strainers, vandal-resistant bottom plates, white powder-coated stainless steel back panel and 1-1/4" NPT traps.

ADA Vandal-Resistant Enameled Iron Motion-Activated/Push Button Fountain w/Bottle Filler

The Haws 1501HO-1920WHO ADA Hi-Lo vandal-resistant drinking fountain and bottle filler incorporates a sensor operated stainless steel solenoid valves controlled by a transformer for hands-free operation on the bottle filler and on one side of the fountain, and offers the ‘only’ all stainless-steel valve body that is machined out of solid bar stock on the other. It is fully serviceable through the front of the push button assembly offering access to the water control cartridge and integral water supply strainer, and has front access to the water stream height adjustment for easy maintenance without having to remove the valve. Equipped with vandal resistant components, this fountain is not easily disrupted, quickly discouraging vandals.

Touchless operation on one side for safety and peace of mind
Vandal resistant components include the bubblers, button, drains and bottom plates
30-second obstruction time-out to reduce tampering of sensor
100% lead-free waterways
1 gpm (3.78 L) bottle filler laminar flow
Gleaming white enameled iron construction provides this fountain with a bullet proof durability hidden beneath its elegant appeal
Polished chrome-plated brass bubbler head
Easy maintenance with front access to valve adjustment and cartridge replacement
Soft rounded corners prevent mishaps and other accidents that may occur once the fountain is installed
"Hi-Lo" design allows for twice the users as regular fountains and suits the needs for various user heights
Matching back panel further establishes the fountains elegant appeal and provides a better base for sturdier fountains
Note: Enameled iron bowls are shipped without the hardware mounted. Hardware to be mounted by installer.

Model meets all current Federal Regulations for the disabled including those in the Americans with Disabilities Act. Haws manufactures drinking fountains, faucets and electric water coolers to be lead-free by all known definitions including NSF/ANSI/CAN 61- Section 9, NSF/ANSI/CAN 372, California Proposition 65, and the Federal Safe Drinking Water Act. Product is compliant to California Health and Safety Code 116875 (AB 1953-2006), and NSF/ANSI/CAN 61: Q ≤ 1.
