1119FR-1920FR

ADA Outdoor Freeze Resistant Wall Mount Fountain and Bottle Filler

Model 1119FR-1920FR, freeze-resistant, ADA wall mounted, stainless steel drinking fountain and bottle filler with 100% lead-free waterways.

Required Parts Sold Separately

ADA Outdoor Freeze Resistant Wall Mount Fountain and Bottle Filler

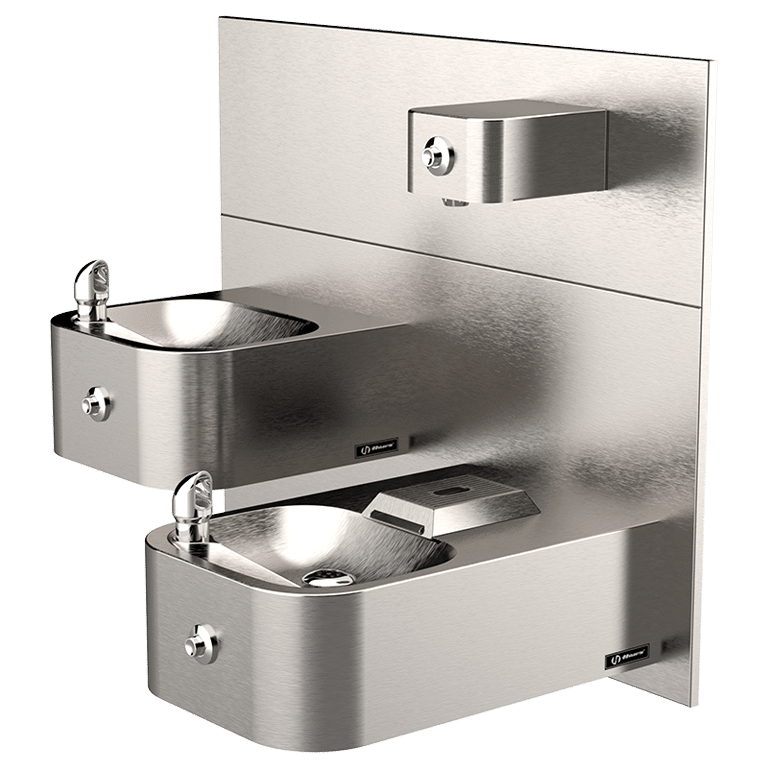

The Haws 1119FR-1920FR Hi-Lo ADA drinking fountain and bottle filler uses fully engineered pneumatic operated freeze-resistant valve assemblies. Wall mounted design allows the unit to be placed securely in multiple locations without taking up excess space. Equipped with vandal resistant components, this fountain is not easily disrupted, quickly discouraging vandals.

18 gauge Type 304 Stainless Steel design provides a well constructed sturdy fountain
1 gpm (3.78 L) laminar flow bottle filler
Beautiful satin finish resists stains and corrosion
Soft rounded corners prevent mishaps and other accidents that may occur once the fountain is installed
"Hi-Lo" design allows for twice the users as regular fountains and suits the needs for various user heights
One-piece stamped bowls make for an aesthetically pleasing and durable design

Model meets all current Federal Regulations for the disabled including those in the Americans with Disabilities Act. Haws manufactures drinking fountains and electric water coolers to be lead-free by all known definitions including NSF/ANSI Standard 61, Section 9, California Proposition 65, and the Federal Safe Drinking Water Act. Product is compliant to California Health and Safety Code 116875 (AB 1953-2006).

Prop 65 Warning. For California Residents Warning: This product contains a chemical known to the State of California to cause cancer and/or birth defects or other reproductive harm. Please click here for more information.

5703M

Bubbler Head

PBM1109

Bottom Plate

PBM1105

Bottom Plate

5881PBA

Valve Push Button

6521FR

Freeze Resistant In-Wall Valve

6700

Mounting Plate

6700R

Mounting Plate

6700.4

Mounting Plate

6800

Support Frame

SK1

Fountain Skirt

SK6

Cane Detection, Floor Mounted

6475

Custom Logo Panel

Fountain with Bottle Filler Spec Sheet

Limited Warranty

View All Resources

Specifications

Model 1119FR- 1920FR A D A wall-mounted drinking fountain and bottle filler shall include 18-gauge Type 304 Stainless Steel satin finish basins, 14 gauge Type 304 Stainless Steel bottle filler bracket, 100% lead-free waterways, pneumatic-operated, freeze-resistant valves mounted in cabinets, polished chrome plated brass vandal-resistant bubbler heads, 1 gpm (3.78 L) laminar flow bottle filler, polished chrome-plated brass vandal resistant waste strainers, vandal-resistant bottom plates, and 1-1/4” NPT traps. CSA certified and ADA accessible, ANSI/NSF 61, Section 9, lead free.
