Home / Products / 1119.14HO-1920HO – ADA Vandal-Resistant Motion-Activated/Push Button Fountain w/Bottle Filler

1119.14HO-1920HO

ADA Vandal-Resistant Motion-Activated/Push Button Fountain w/Bottle Filler

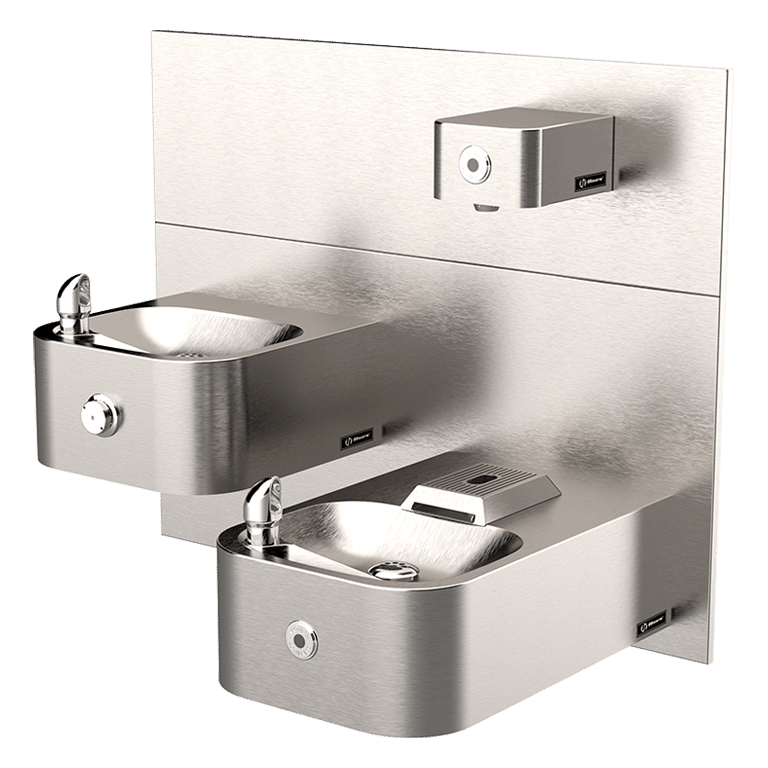

Model 1119.14HO-1920HO, Hi-Lo ADA, wall mounted vandal-resistant, combination touchless/push button fountain with a touchless bottle filler. (For mounting bottle filler, see options below) FOR INDOOR USE ONLY
Contact Us for a Custom Solution

Required Parts Sold Separately

Fountain with Bottle Filler Spec Sheet

Operational / Maintenance Manual

MasterSpec® Files

Limited Warranty

Specifications

Model 1119.14HO-1920HO Hi-Lo ADA wall mounted vandal-resistant combination motion activated/push button drinking fountain and touchless bottle filler shall include dual 14 gauge Type 304 Stainless Steel satin finish basins, sensor operated solenoid valves with 30-second obstruction time-out on one fountain and the bottle filler, and vandal-resistant push-button operated stainless steel valve with front-accessible cartridge and flow adjustment on the other, 1 gpm (3.78 L) laminar flow bottle filler, 100% lead-free waterways, polished chrome-plated brass vandal-resistant bubbler heads, polished chrome-plated brass vandal-resistant waste strainers, vandal-resistant bottom plates, stainless steel satin finish back panel, high and low fountain mounting levels, and 1-1/4" NPT traps.

ADA Vandal-Resistant Motion-Activated/Push Button Fountain w/Bottle Filler

The Haws 1119.14HO-1920HO ADA Hi-Lo vandal-resistant 14 gauge stainless steel drinking fountain and bottle filler incorporates a sensor operated stainless steel solenoid valves with 30-second obstruction time-out controlled by a transformer on the bottle filler and on one side of the fountain, and offers the ‘only’ all stainless-steel valve body that is machined out of solid bar stock on the other. It is fully serviceable through the front of the push button assembly offering access to the water control cartridge and integral water supply strainer, and has front access to the water stream height adjustment for easy maintenance without having to remove the valve.

Touchless operation on one fountain and the bottle filler for safety and peace of mind
Vandal resistant components include the bubblers, button, drains and bottom plates
30-second obstruction time-out to reduce tampering of sensor
1 gpm (3.78 L) bottle filler laminar flow
100% lead-free waterways
14 gauge Type 304 Stainless Steel design provides a well constructed sturdy fountain
Easy maintenance with front access to push button valve adjustment and cartridge replacement
Beautiful satin finish resists stains and corrosion
"Hi-Lo" design allows for twice the users as regular fountains and suits the needs for various user heights
One-piece stamped bowls make for an aesthetically pleasing and durable design

Model meets all current Federal Regulations for the disabled including those in the Americans with Disabilities Act. Haws manufactures drinking fountains, faucets and electric water coolers to be lead-free by all known definitions including NSF/ANSI/CAN 61- Section 9, NSF/ANSI/CAN 372, California Proposition 65, and the Federal Safe Drinking Water Act. Product is compliant to California Health and Safety Code 116875 (AB 1953-2006), and NSF/ANSI/CAN 61: Q ≤ 1.
