1117LNHO

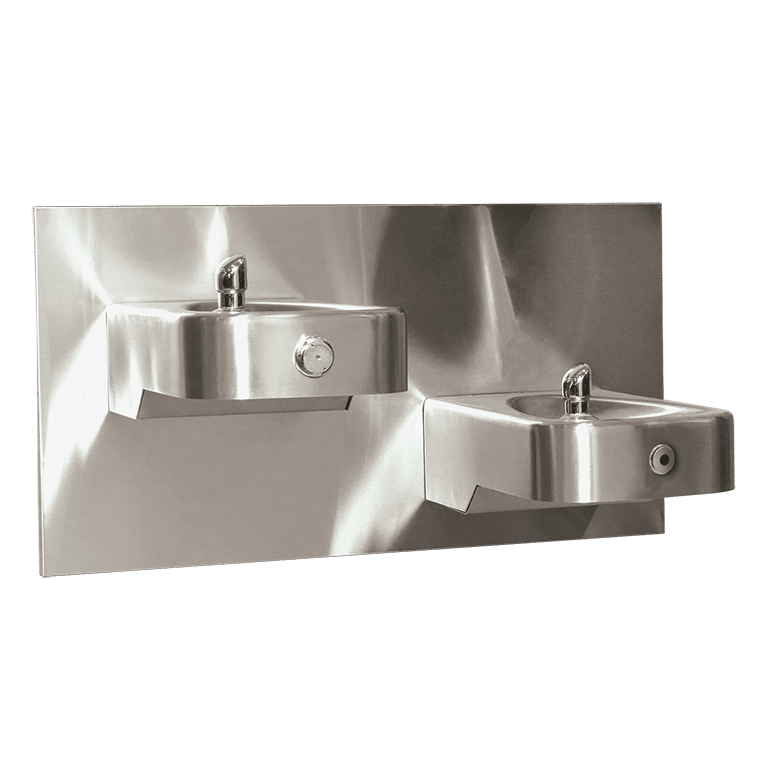

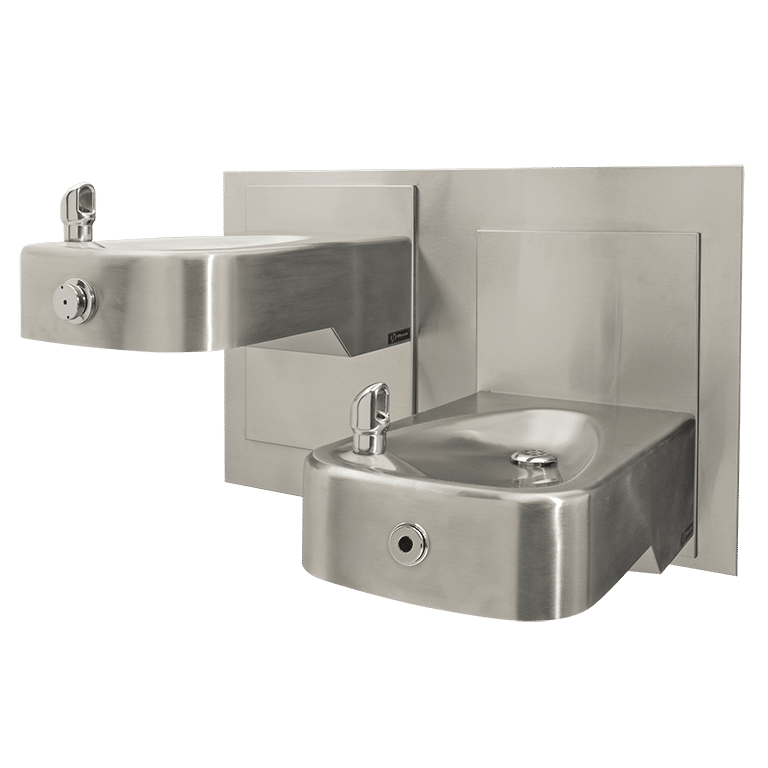

ADA Vandal-Resistant Motion-Activated/Push Button Dual Fountain

Model 1117LNHO, Hi-Lo ADA, wall mounted vandal-resistant, combination touchless/push button dual 14-gauge stainless steel drinking fountain with back panel, and 100% lead free waterways. FOR INDOOR USE ONLY

Spec Sheet Download

Spec Sheet

Operational / Maintenance Manual

Installation Drawing

Parts Breakdown Drawing

AutoCAD Installation Drawing

3D Revit (RFA)

MasterSpec® Files

Limited Warranty

Specifications

Model 1117LNHO low profile Hi-Lo ADA vandal-resistant wall mounted combination motion activated/push button drinking fountain shall include dual 14-gauge Type 304 Stainless Steel satin finish basins with integral 1/4" (.6 cm) thick stainless-steel back plates. Sensor operated solenoid valve with 30-second obstruction time-out on one side, and vandal-resistant push-button operated stainless steel valve with front-accessible cartridge and flow adjustment on the other, 100% lead free waterways, polished chrome-plated brass vandal-resistant bubbler heads, polished chrome-plated brass vandal-resistant waste strainers, vandal-resistant bottom plates, stainless steel satin finish back panel, and 1-1/4" NPT concealed all cast-brass traps. The patented design allows the unit to be mounted to meet ADA or Child ADA specifications.

Pricing Information

$2695 USD
Contact Haws Specials

ADA Vandal-Resistant Motion-Activated/Push Button Dual Fountain

The Haws 1117LNHO ADA Hi-Lo vandal-resistant stainless steel drinking fountain incorporates a sensor operated stainless steel solenoid valve controlled by a transformer for hands-free operation on one side and offers the ‘only’ all stainless-steel valve body that is machined out of solid bar stock on the other. It is fully serviceable through the front of the push button assembly offering access to the water control cartridge and integral water supply strainer, and has front access to the water stream height adjustment for easy maintenance without having to remove the valve.

Touchless operation on one side for safety and peace of mind
Vandal resistant components include the bubblers, drains and bottom plates
30-second obstruction time-out to reduce tampering of sensor
100% lead free waterways
Easy maintenance with front access to valve adjustment and cartridge replacement
Beautiful satin finish resists stains and corrosion
14 gauge Type 304 Stainless Steel design provides a well-constructed sturdy fountain
Soft rounded corners prevent from mishaps and other accidents that may occur once the fountain is installed
One-piece stamped bowls with low-profile basin make for an aesthetically pleasing and durable design

Model meets all current Federal Regulations for the disabled including those in the Americans with Disabilities Act. Haws manufactures drinking fountains, faucets and electric water coolers to be lead-free by all known definitions including NSF/ANSI/CAN 61- Section 9, NSF/ANSI/CAN 372, California Proposition 65, and the Federal Safe Drinking Water Act. Product is compliant to California Health and Safety Code 116875 (AB 1953-2006), and NSF/ANSI/CAN 61: Q ≤ 1.
