Home / Products / 1117LHO2-1920HO – ADA Adjustable Vandal-Resistant Motion-Activated Fountain and Bottle Filler

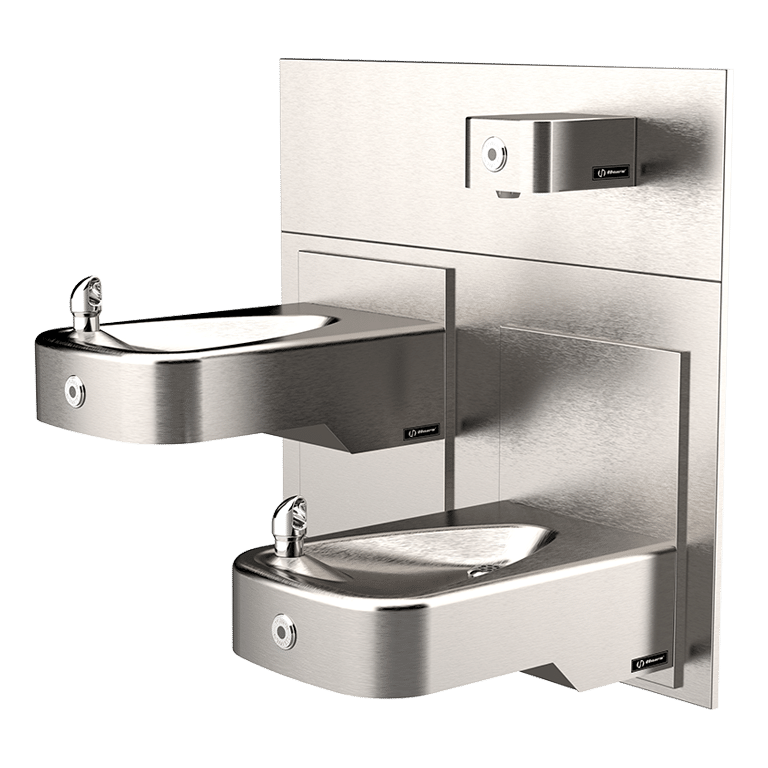

1117LHO2-1920HO

ADA Adjustable Vandal-Resistant Motion-Activated Fountain and Bottle Filler

Model 1117LHO2-1920HO, Hi-Lo ADA, wall mounted vandal-resistant, 14-gauge stainless steel touchless fountain and bottle filler with back panels. (For mounting bottle filler, see options below) FOR INDOOR USE ONLY The bottle filler requires a mounting plate; either the 6700 in-wall or the 6700R on-wall support plate. (See options below)

Required Parts Sold Separately

Fountain with Bottle Filler Spec Sheet

Limited Warranty

MasterSpec® Files

Specifications

Model 1117LHO2-1920HO low profile Hi-Lo wall mounted vandal-resistant ADA motion-activated drinking fountain and bottle filler shall include dual 14 gauge Type 304 Stainless Steel satin finish basins with integral 1/4" (.6 cm) thick stainless steel back plates, sensor operated stainless steel solenoid valves with 30-second obstruction time-out controlled by a transformer, in-line strainer and flow adjustment provide 100% lead free waterways, polished chrome plated brass vandal-resistant bubbler heads with integral laminar anti-squirt flow, 1 gpm (3.78 L) laminar flow bottle filler, polished chrome-plated brass vandal-resistant waste strainers, vandal-resistant bottom plates, stainless steel satin finish back panels, adjustable mounting allowing either basin to be high or low, in-wall mounting plate, and 1-1/4" NPT concealed all cast-brass traps. The patented design allows the unit to be mounted to meet ADA or Child ADA specifications. The botte filler requires a mounting plate; either the Haws model 6700 in-wall or the 6700R on-wall support plate.

Pricing Information

$4892 USD
Contact Haws Specials

ADA Adjustable Vandal-Resistant Motion-Activated Fountain and Bottle Filler

The Haws 1117LHO2-1920HO adjustable barrier-free vandal-resistant Hi-Lo touchless drinking fountain and bottle filler incorporates sensor operated stainless steel solenoid valves controlled by a transformer for hands-free operation. A pressure regulator is used to adjust the bubbler flow according to incoming water pressures.

Touchless operation for safety and peace of mind
Vandal resistant components include the bubblers, drains and bottom plates
30-second obstruction time-out to reduce tampering of sensor
100% lead free waterways
1 gpm (3.78 L) bottle filler laminar flow
Beautiful satin finish resists stains and corrosion
14 gauge Type 304 Stainless Steel design provides a well-constructed sturdy fountain
"Hi-Lo" adjustable design allows for twice the users as regular fountains and suits the needs for various user heights
Soft rounded corners prevent from mishaps and other accidents that may occur once the fountain is installed
One-piece stamped bowls with low-profile basin make for an aesthetically pleasing and durable design
The bottle filler requires a mounting plate; either the 6700 in-wall or the 6700R on-wall support plate. (See options below)

Model meets all current Federal Regulations for the disabled including those in the Americans with Disabilities Act. Haws manufactures drinking fountains, faucets and electric water coolers to be lead-free by all known definitions including NSF/ANSI/CAN 61- Section 9, NSF/ANSI/CAN 372, California Proposition 65, and the Federal Safe Drinking Water Act. Product is compliant to California Health and Safety Code 116875 (AB 1953-2006), and 116876 (AB 100) "NSF/ANSI/CAN 61: Q ≤ 1".
