Specifications

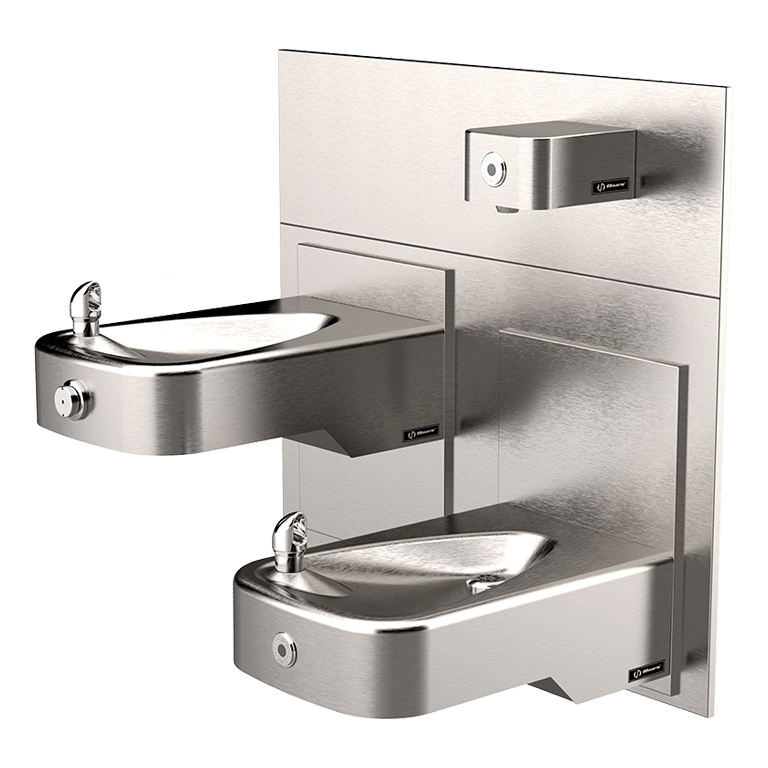

Model 1117LHO-1920HO low profile ADA vandal-resistant adjustable Hi-Lo wall mounted motion activated/push button drinking fountain and bottle filler shall include dual 14 gauge Type 304 Stainless Steel satin finish basins with integral 1/4" (.6 cm) thick stainless steel back plates, sensor operated solenoid valves with 30-second obstruction time-out on the bottle filler and on one side of the fountain, and push-button operated stainless steel valve with front-accessible cartridge and flow adjustment on the other, in-line strainer and flow adjustment provide 100% lead free waterways, polished chrome plated brass vandal-resistant bubbler heads with integral laminar anti-squirt flow, 1 gpm (3.78 L) laminar flow bottle filler, polished chrome-plated brass vandal-resistant waste strainers, vandal-resistant bottom plates, stainless steel satin finish back panels, adjustable mounting allowing either basin to be high or low, in-wall mounting plate, and 1-1/4" NPT concealed all cast-brass traps. The patented design allows the unit to be mounted to meet ADA or Child ADA specifications. The botte filler requires a mounting plate; either the Haws model 6700 in-wall or the 6700R on-wall support plate.
