Home / Products / 1011MSHO2-1920HO – ADA Vandal-Resistant Motion-Activated Dual Fountain and Bottle Filler w/Mounting System

1011MSHO2-1920HO

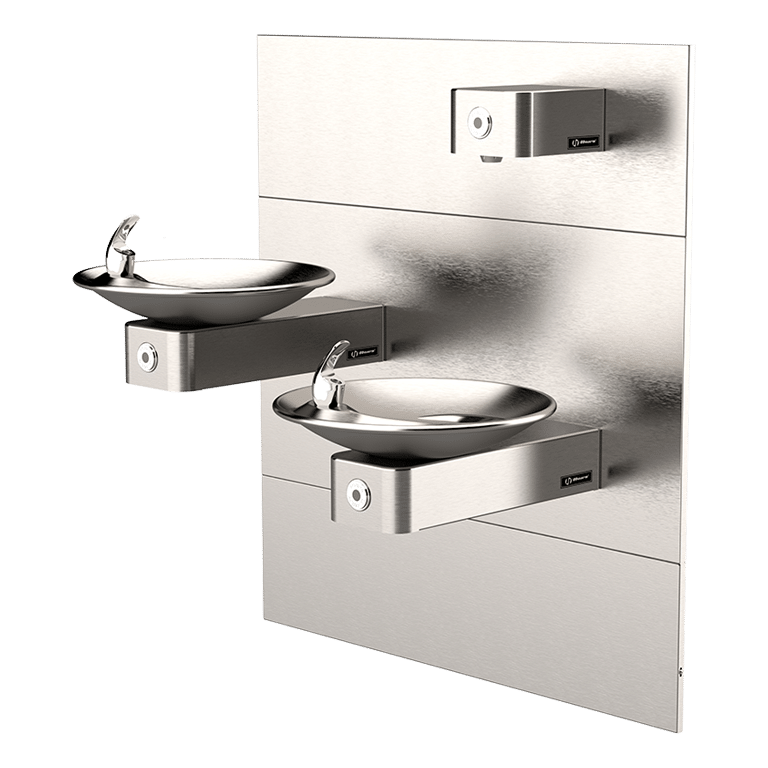

ADA Vandal-Resistant Motion-Activated Dual Fountain and Bottle Filler w/Mounting System

Model 1011MSHO2-1920HO, Hi-Lo ADA vandal-resistant wall mounted, touchless fountain and bottle filler, access panel and in-wall mounting system. (For mounting bottle filler, see options below) FOR INDOOR USE ONLY
Contact Us for a Custom Solution

Required Parts Sold Separately

Fountain with Bottle Filler Spec Sheet

MasterSpec® Files

Limited Warranty

Spec Sheet

View All Resources

Specifications

Model 1011MSHO2-1920HO Hi-Lo ADA vandal-resistant wall-mounted motion activated drinking fountain and bottle filler shall include dual 18-gauge Type 304 Stainless Steel basins with integral swirl design, 14 gauge Type 304 Stainless Steel wall brackets and bottle filler bracket, in-wall mounting frame with lower access panel allowing for front access of P-trap and stop, 100% lead-free waterways, sensor operated stainless steel solenoid valves with 30-second obstruction time-out controlled by a transformer, polished chrome plated brass vandal resistant bubbler heads with integral laminar anti-squirt flow, 1gpm (3.78L) laminar flow bottle filler, chrome-plated brass vandal-resistant waste strainers, high and low fountain mounting levels, stainless steel back panels, and 1-1/4” O.D. (3.2 cm) waste pipes.

ADA Vandal-Resistant Motion-Activated Dual Fountain and Bottle Filler w/Mounting System

The Haws 1011MSHO2-1920HO ADA Hi-Lo vandal-resistant stainless-steel touchless drinking fountain and bottle filler incorporates sensor operated stainless steel solenoid valves controlled by a transformer for hands-free operation. A pressure regulator is used to adjust the bubbler flow according to incoming water pressures.

18 gauge Type 304 Stainless Steel bowl assemblies mounted on a 14 gauge Type 304 Stainless Steel wall brackets
Vandal resistant components include the bubblers, bowls, drains and bottom plates
Touchless operation for safety and peace of mind
30-second obstruction time-out to reduce tampering of sensor
Front access plate allows for front access of P-trap and stop
100% lead-free waterways
Polished chrome-plated brass bubbler heads with integral laminar anti-squirt flow eliminate water splash
1 gpm (3.78 L) bottle filler laminar flow
Beautiful satin finish resists stains and corrosion
"Hi-Lo" design allows for twice the users as regular fountains and suits the needs for various user heights

Model meets all current Federal Regulations for the disabled including those in the Americans with Disabilities Act. Haws manufactures drinking fountains, faucets and electric water coolers to be lead-free by all known definitions including NSF/ANSI/CAN 61- Section 9, NSF/ANSI/CAN 372, California Proposition 65, and the Federal Safe Drinking Water Act. Product is compliant to California Health and Safety Code 116875 (AB 1953-2006), and NSF/ANSI/CAN 61: Q ≤ 1.

Prop 65 Warning. For California Residents Warning: This product contains a chemical known to the State of California to cause cancer and/or birth defects or other reproductive harm. Please click here for more information.
