1011HPSMSHO2

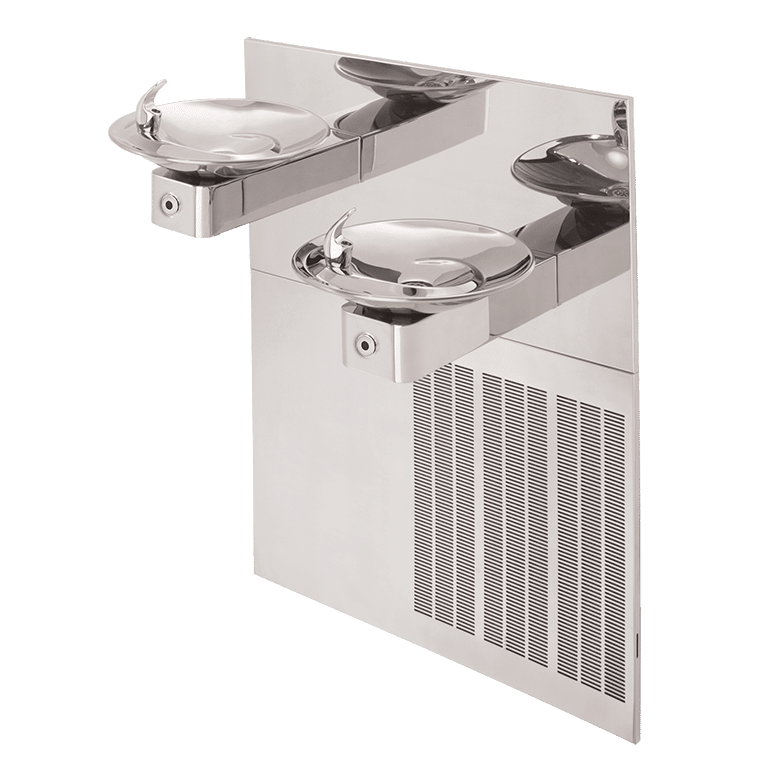

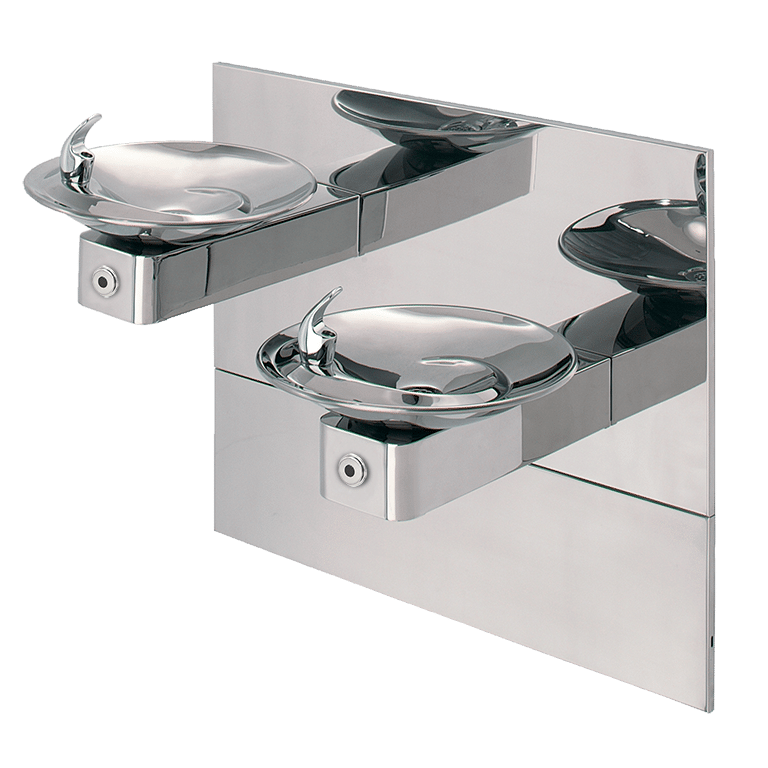

ADA Vandal-Resistant Motion-Activated Polished Fountain w/Mounting System

Model 1011HPSMSHO2, Hi-Lo ADA, wall mount vandal-resistant, touchless polished stainless dual fountain with back panels mounting frame. FOR INDOOR USE ONLY
Contact Us for a Custom Solution

Spec Sheet Download

Required Parts Sold Separately

MTGFR.DF2

Spec Sheet

Operational / Maintenance Manual

3D Revit (RFA)

MasterSpec® Files

Limited Warranty

Specifications

Model 1011HPSMSHO2 Hi-Lo ADA wall mounted vandal-resistant motion-activated drinking fountain with mounting system shall include dual 18 gauge Type 304 polished stainless-steel basins with integral swirl design, 14 gauge Type 304 polished stainless-steel wall brackets, polished stainless steel back and access panels allowing for front access of P-trap and stop, in-wall mounting frame, 100% lead-free waterways, sensor operated stainless steel solenoid valves with 30-second obstruction time-out controlled by a transformer, polished chrome-plated brass vandal-resistant bubbler heads with integral laminar anti-squirt flow, chrome-plated brass vandal-resistant waste strainers, vandal-resistant bottom plates, high and low fountain mounting levels, and 1-1/4" O.D. (3.2 cm) waste pipes. ........................................................................................ REQUIRES MODEL MTGFR.DF2 PRICED SEPARATELY.

Pricing Information

$6260 USD
Contact Haws Specials

ADA Vandal-Resistant Motion-Activated Polished Fountain w/Mounting System

The Haws 1011HPSMSHO2 Hi-Lo ADA vandal-resistant touchless high-polished stainless-steel drinking fountain with mounting system incorporates sensor operated stainless steel solenoid valves controlled by a transformer for hands-free operation. A pressure regulator is used to adjust the bubbler flow according to incoming water pressures.

Touchless operation for safety and peace of mind
Vandal resistant components include bubblers, bowls, drains and bottom plates
18 gauge Type 304 polished stainless steel bowl assemblies mounted on 14 gauge Type 304 polished stainless steel wall brackets
30-second obstruction time-out to reduce tampering of sensor
Front access plate allows for front access of P-trap and stop
100% lead-free waterways
Polished chrome-plated brass bubbler heads with integral laminar anti-squirt flow eliminate water splash
Beautiful high-polished finish resists stains and corrosion
"Hi-Lo" design allows for twice the users as regular fountains and suits the needs for various user heights

Model meets all current Federal Regulations for the disabled including those in the Americans with Disabilities Act. Haws manufactures drinking fountains, faucets and electric water coolers to be lead-free by all known definitions including NSF/ANSI/CAN 61- Section 9, NSF/ANSI/CAN 372, California Proposition 65, and the Federal Safe Drinking Water Act. Product is compliant to California Health and Safety Code 116875 (AB 1953-2006), and NSF/ANSI/CAN 61: Q ≤ 1.
