1011HPSMSHO

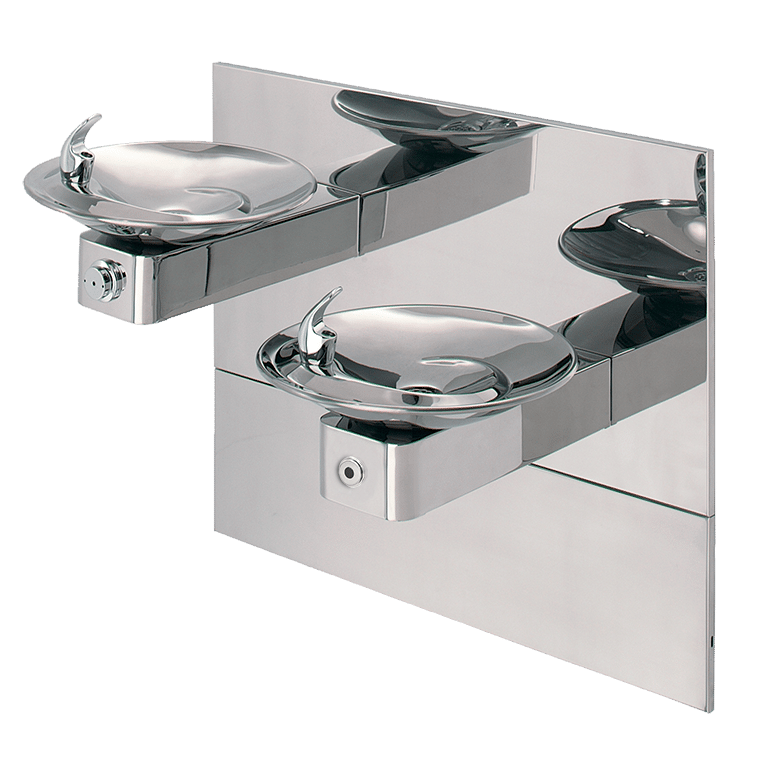

ADA Vandal-Resistant Motion-Activated/Push Button Polished Fountain w/Mounting System

Model 1011HPSMSHO, Hi-Lo ADA, wall mount vandal-resistant, combination touchless/push button polished stainless dual fountain with mounting system. FOR INDOOR USE ONLY
Contact Us for a Custom Solution

Spec Sheet Download

Required Parts Sold Separately

MGTFR.DF2

Spec Sheet

Operational / Maintenance Manual

3D Revit (RFA)

MasterSpec® Files

Limited Warranty

Specifications

Model 1011HPSMSHO Hi-Lo ADA wall mounted vandal-resistant combination motion activated/push button high-polished stainless-steel drinking fountain with mounting system shall include dual 18 gauge Type 304 polished stainless steel basins with integral swirl design, 14 gauge Type 304 polished stainless steel wall brackets, 100% lead-free waterways, sensor operation with 30-second obstruction time-out on one side and vandal-resistant push-button operated stainless steel valve with front-accessible cartridge and flow adjustment on the other, polished chrome-plated brass vandal-resistant bubbler heads with integral laminar anti-squirt flow, chrome-plated brass vandal-resistant waste strainers, vandal-resistant bottom plates, polished stainless steel back panel, high and low fountain mounting levels, and 1-1/4" O.D. (3.2 cm) waste pipes. ........................................................................................ REQUIRES MODEL MTGFR.DF2 PRICED SEPARATELY.

Pricing Information

$6160 USD
Contact Haws Specials

ADA Vandal-Resistant Motion-Activated/Push Button Polished Fountain w/Mounting System

The Haws 1011HPSMSHO Hi-Lo ADA vandal-resistant high-polished stainless-steel drinking fountain with mounting system combines a sensor operated stainless steel solenoid valve controlled by a transformer for hands-free operation on one side, and offers the ‘only’ all stainless-steel valve body that is machined out of solid bar stock on the other. It is fully serviceable through the front of the push button assembly offering access to the water control cartridge and integral water supply strainer, and has front access to the water stream height adjustment for easy maintenance without having to remove the valve.

Touchless operation on one side for safety and peace of mind
Vandal resistant components include bubblers, bowls, button, drains and bottom plates
18 gauge Type 304 polished stainless steel bowl assemblies mounted on 14 gauge Type 304 polished stainless steel wall brackets
30-second obstruction time-out to reduce tampering of sensor
100% lead-free waterways
Polished chrome-plated brass bubbler heads with integral laminar anti-squirt flow eliminate water splash
Easy maintenance with front access to valve adjustment and cartridge replacement
Beautiful high-polished finish resists stains and corrosion
"Hi-Lo" design allows for twice the users as regular fountains and suits the needs for various user heights

Model meets all current Federal Regulations for the disabled including those in the Americans with Disabilities Act. Haws manufactures drinking fountains, faucets and electric water coolers to be lead-free by all known definitions including NSF/ANSI/CAN 61- Section 9, NSF/ANSI/CAN 372, California Proposition 65, and the Federal Safe Drinking Water Act. Product is compliant to California Health and Safety Code 116875 (AB 1953-2006), and NSF/ANSI/CAN 61: Q ≤ 1.

Prop 65 Warning. For California Residents Warning: This product contains a chemical known to the State of California to cause cancer and/or birth defects or other reproductive harm. Please click here for more information.
